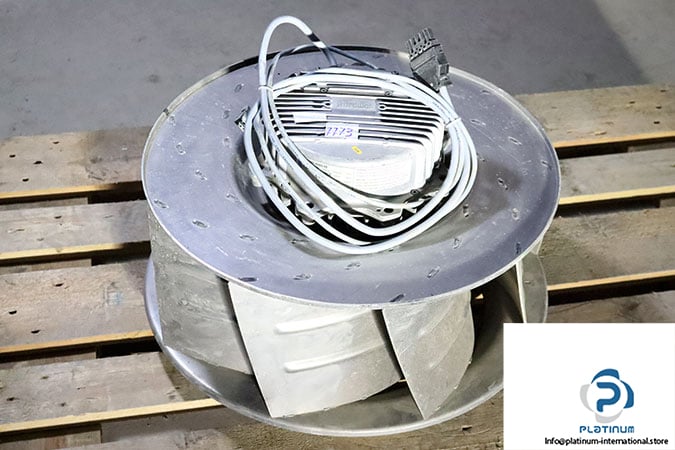

Ebmpapst R3G560-AH02-08 Centrifugal FAN

Manufacturer: EBMPAPST
Type: Centrifugal Fan

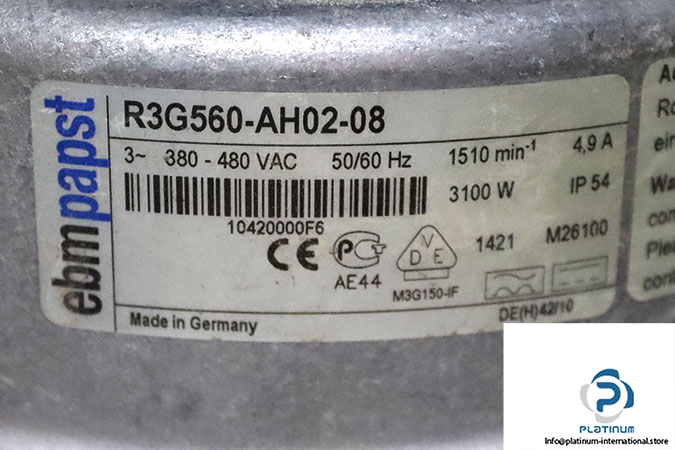

Model: R3G560AH0208

Frequency: 50 … 60 Hz
Size: 560 mm

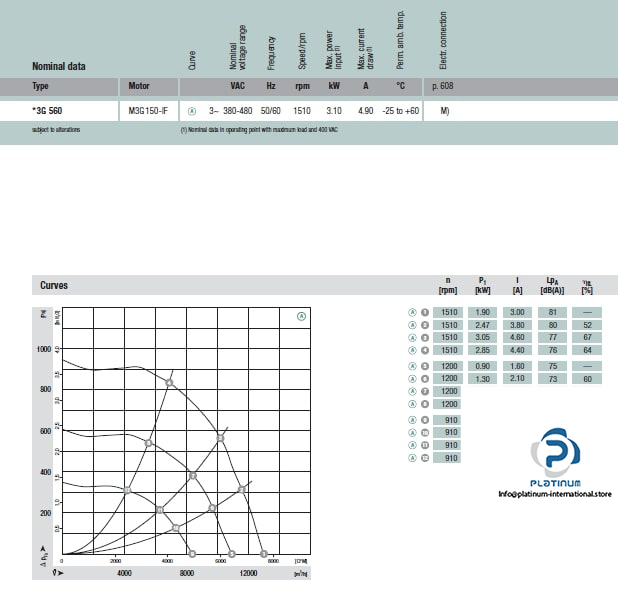

Air Flow (q_v): 8745 m³/h
Rated Voltage: 3-Phase, 380 – 480 V AC
Rated Current: 4.9 A
Rated Power: 3100 W
Rated Speed: 1510 min^-1
Surface of Rotor: Coated in black
Material of Impeller: Aluminum Sheet
No. of Blades: 9
Direction of Rotation: Clockwise
Protection Class: IP54
Ambient Motor Temperature: -40 … 80 °C
Diameter (Outer x Motor x Depth): 565 x 235 x 258 mm
