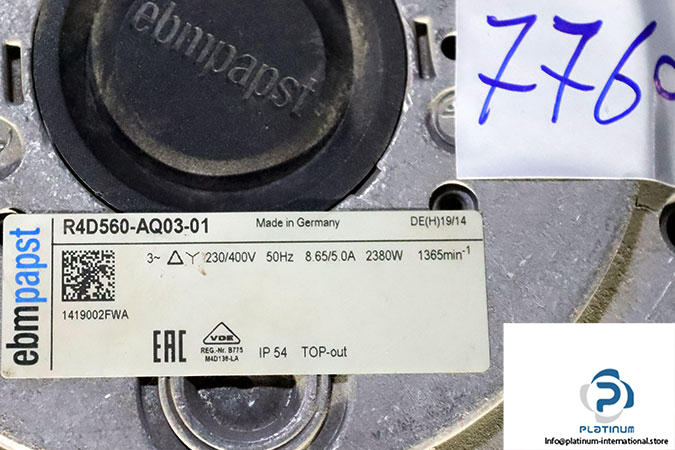

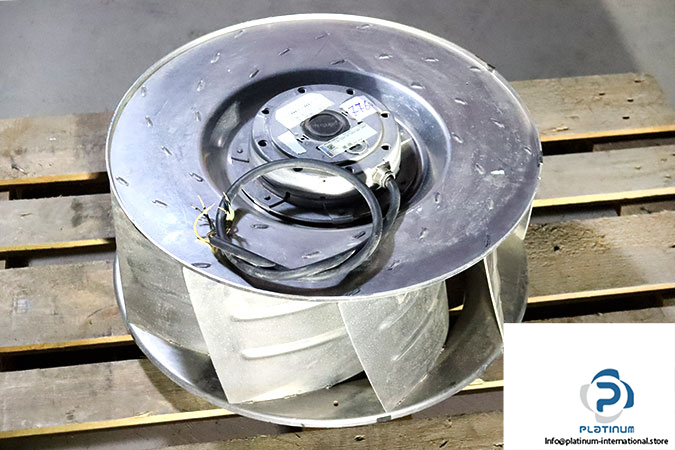

Ebmpapst R4D560-AQ03-01 Centrifugal FAN

Manufacturer: EBMPAPST
Type: Centrifugal Fan
Model: R4D560AQ0301

Frequency: 50 Hz
Size: 560 mm
Rated Voltage (Delta – Star): 3-Phase, 230 – 400 V AC
Rated Current (Delta – Star): 8.65 – 5 A
Starting Current (Delta – Star): 47 – 27 A
Safe Operating Speed Max.: 1640 min^-1
Rated Power: 2380 W
Rated Speed: 1365 min^-1
Surface of Rotor: Cast In Aluminum
Material of Impeller: Aluminum Sheet
No. of Blades: 9
Direction of Rotation: Clockwise
Protection Class: IP54
Ambient Motor Temperature: -40 … 80 °C
Diameter (Outer x Motor x Depth) : 565 x 140 x 274 mm
