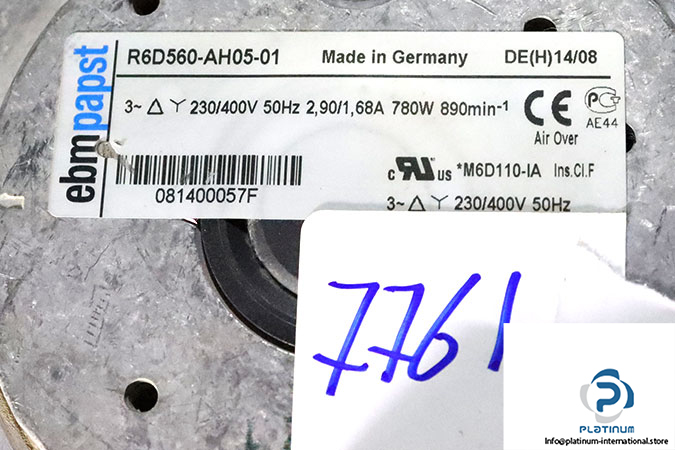

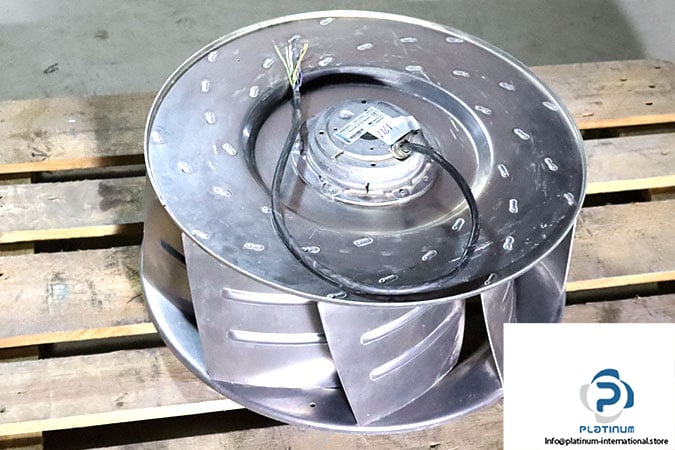

Ebmpapst R6D560-AH05-01 Centrifugal FAN

Manufacturer: EBMPAPST
Type: Centrifugal Fan
Model: R6D560AH0501

Frequency: 50 Hz
Rated Voltage (Delta – Star – Star): 3-Phase, 230 – 400 – 415 V AC
Rated Current (Delta – Star – Star): 2.9 – 1.68 – 1.72 A
Starting Current (Delta – Star – Star): 9.4 – 5.4 – 5.1 A
Safe Operating Speed Max.: 1640 min^-1
Rated Power: 780 – 780 – 800 W
Rated Speed: 890 – 890 – 900 min^-1
Surface of Rotor: Cast In Aluminum
Material of Impeller: Aluminum Sheet
No. of Blades: 9
Direction of Rotation: Clockwise
Protection Class: IP54
Ambient Motor Temperature: -40 … 60 °C
Diameter (Outer x Motor x Depth) : 565 x 100 x 270 mm
