Industrial Fans Axial Fans & Fan Filter Units

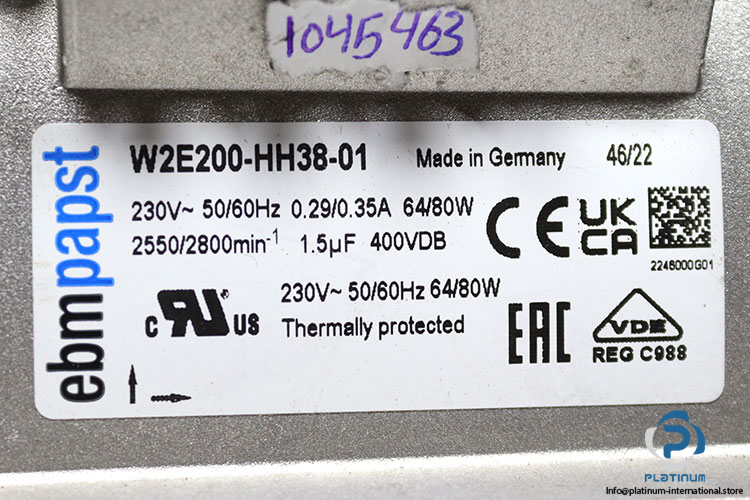

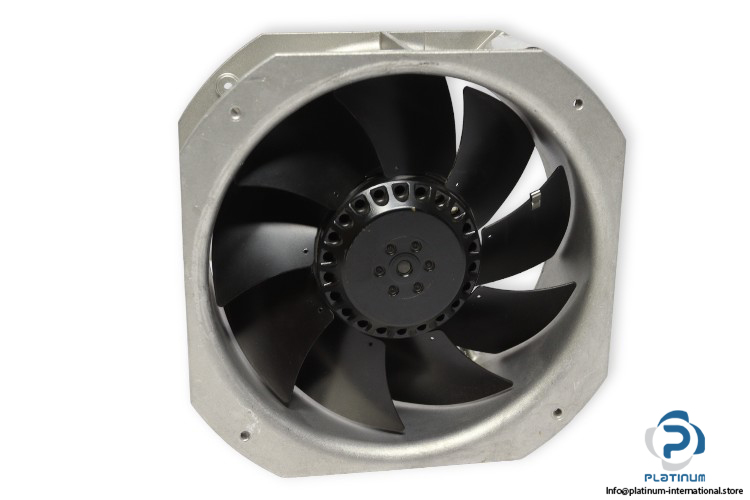

Ebmpapst W2E200-HH38-01 Axial FAN

Name: EBMPAPST W2E200-HH38-01 AXIAL FAN
SKU: 1045463
Availability: LimitedAvailability

New

In stock1 unitReady to ship

Manufacturer: ebm-papst Type: Axial Fan Model: W2E200HH3801

Manufacturer

EBMPAPST

SKU

1045463

Category

Axial Fans & Fan Filter Units

Condition

New

Axial Ebmpapst Fans Industrial

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: ebm-papst
Type: Axial Fan
Model: W2E200HH3801

Frame Shape: Square Frame
No. of Blades: 9

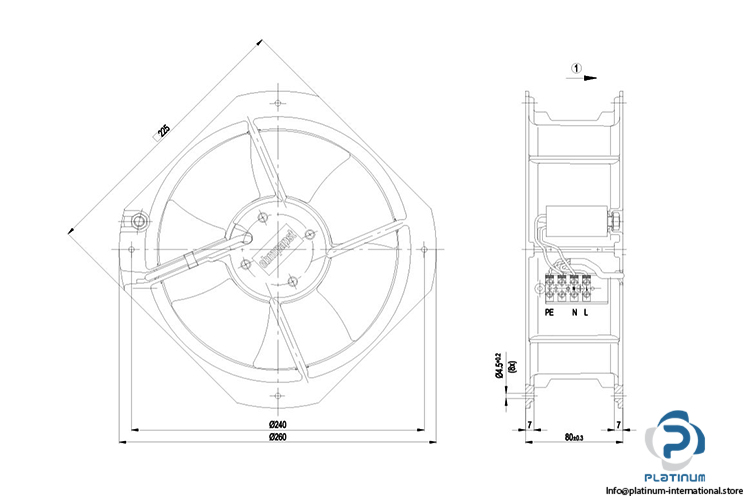

Dimensions (mm): 225x225x80
Direction: Push
Bearing: Ball Bearing
Voltages (V AC): 230
Power Rating (W): 64-80
Speed (rpm): 2550-2800
Current (mA): 290-350
Frequency (Hz): 50/60
Inverter: without Inverter

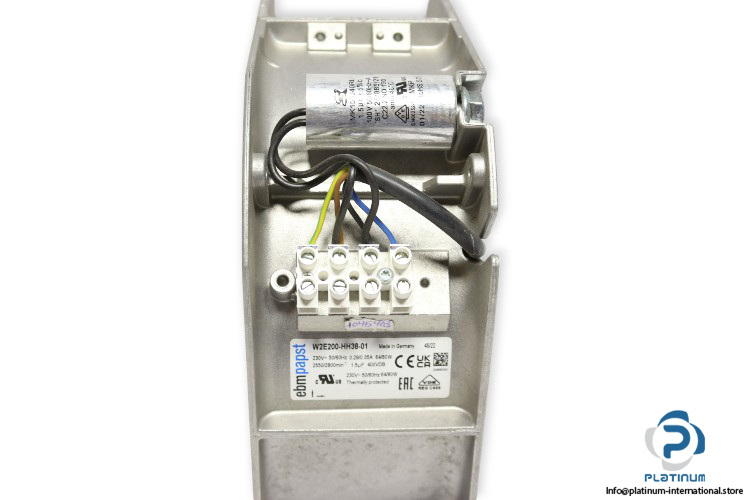

No. of Wires: 3
Blade material / Fan housing material: Metal / Metal

Specification	Value
Weight	1,9 kg
Condition	New
No. of Wires	3
Manufacturer	EBMPAPST
Type of Product	Axial Fan
Frame Shape	Square Frame
Inverter	Without Inverter
Fan Housing Material	Metal
Direction	Push
Voltage Type	AC
Frequency [Hz]	50/60
Blade Material	Metal
Bearing	Ball Bearing
Voltage [V]	230
No. of Blades	9
Dimensions [mm]	225x225x80
Speed [RPM]	2550-2800
Current [A]	0.29-0.35
Power [kW]	0.064-0.08
Shelf No.	240528
