Ebro EB10 DW Pneumatic Actuator
Used
In stock2 unitsReady to ship
Pneumatic Actuator
The EBRO EB10 DW is a double acting pneumatic actuator with 882 Nm torque, 10 bar pressure rating, and hard anodized aluminum body, designed for reliable valve control in industrial systems.10882ActingActuatorAluminumAnodizedbarComponentsControlDoubleDWEB-DWEB10EbroHardIndustrialNmPneumaticSeriesValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

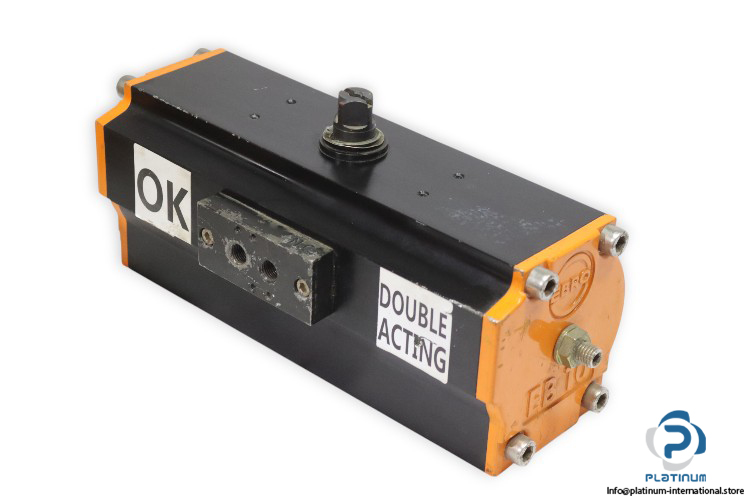

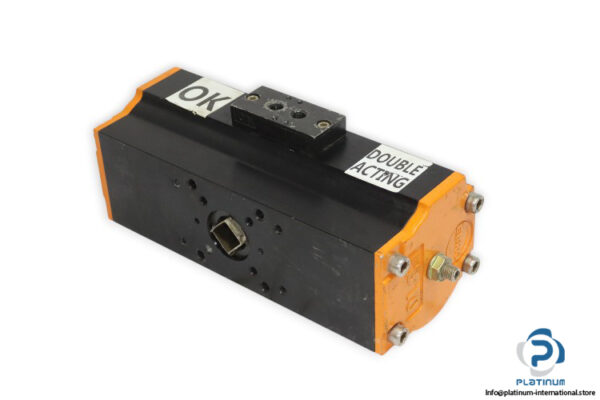

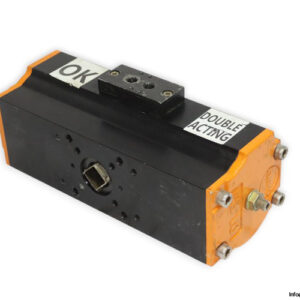

EBRO EB10 DW Pneumatic Actuator
The EBRO EB10 DW Pneumatic Actuator is a durable and precise actuator designed for reliable performance in industrial automation and valve control applications. It features double acting operation and a hard anodized aluminum body for long service life under demanding conditions.

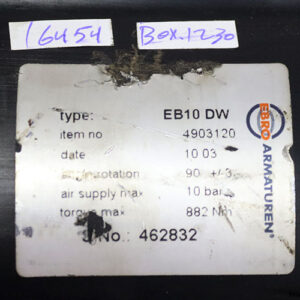

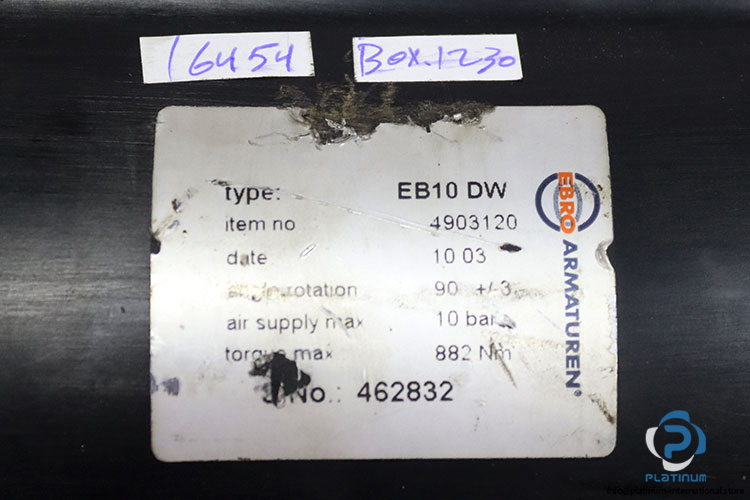

Manufacturer: EBRO
Type: Pneumatic Actuator
Model: EB10 DW
Item No.: 4903120
Serial No.: 462832
Code: 10/03
Series: EB-DW
Size: EB10
| Operating Media | Compressed filtered air, not necessarily lubricated |
| Actuation Type | Double acting |
| Operating Pressure | Maximum 10 bar |
| Rotation Angle | 90 degrees ± 3 degrees |
| Maximum Output Torque | 882 Nm |
| Body Material | Hard anodized aluminum |
| Temperature Range | “20 to +85 degrees Celsius |
| Dimension (Length x Depth x Piston Dia) | 312 x 155 x F07/10 mm |
