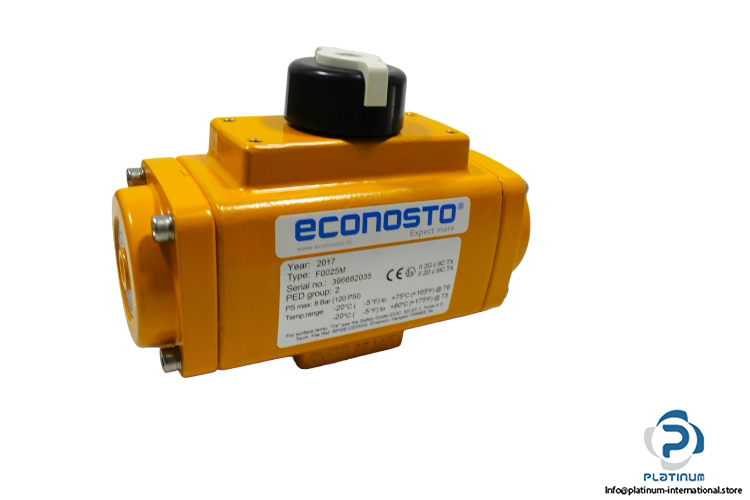

Econosto F0025M Rack AND Pinion Pneumatic Actuator

Manufacturer: ECONOSTO

Type: Rack and Pinion Pneumatic Actuator

Model: F0025M



Media: Air, dry or lubricated and inert gases

Material: — Body: Chromated and polyurethane powder coated

— End caps: Chromated and polyurethane powder coated

— Pistons: Chromated

— Pinion: Hard Anodized

Size: 25

Max Setting pressure: 8 bar

Torque Range: – 119 to 39498 lbf.in

Actuator volumes (in liters)

Central1 chamber: 0.11

End cap2 chamber: 0.19

Displaced3 volume: 0.08

Ambient Temperature:

-20 … 75 °C @T6

-20 … 80 °C @T5

Port size: G1/4
