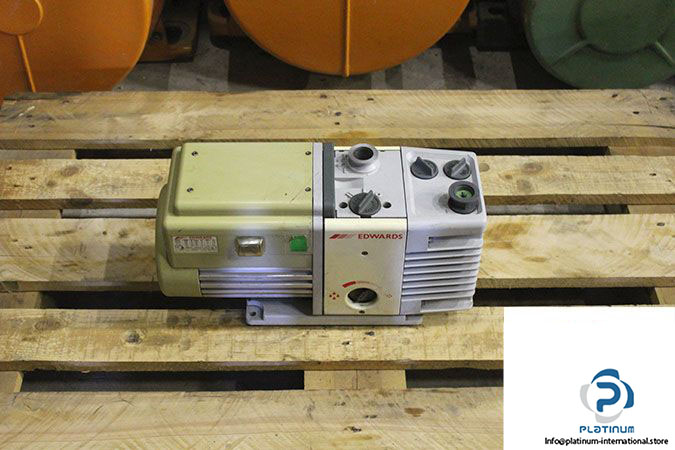

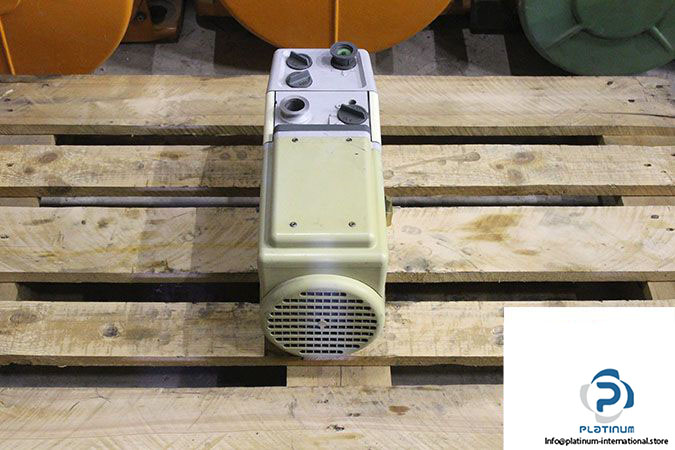

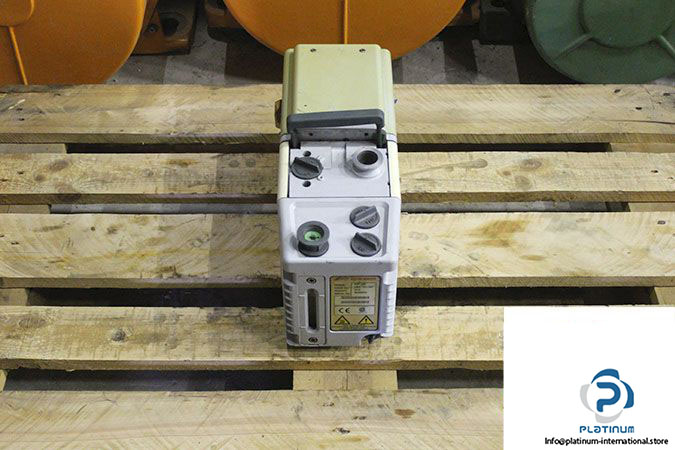

Edwards RV5 Vacuum Pump

Manufacturer: Edwards

Type: Vacuum Pump

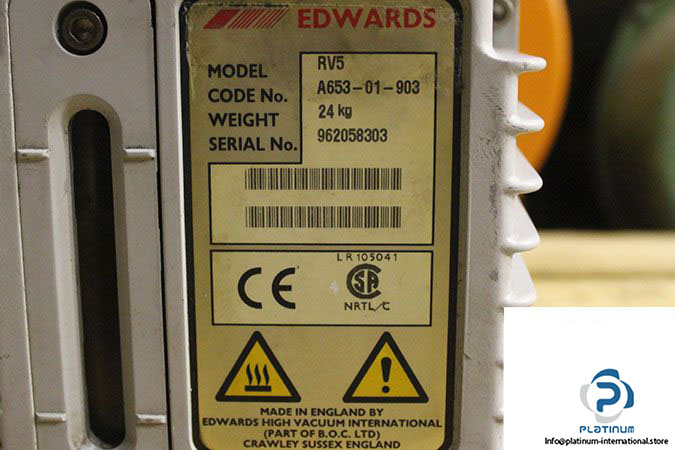

Model: RV5

Code No.: A653-01-903

Stage: 2

Max. Displacement [m³/h]: 5.8/7.0

Max. Pumping Speed [m³/h]: 5.1/6.2

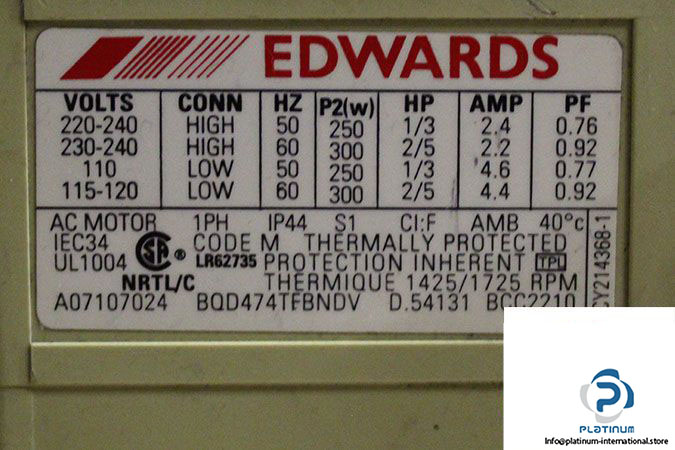

Rated Voltage/ Conn. [V]: 220-240/230-240 High

Horsepower [Hp]: 1/3 …. 2/5

Power Factor [%]: 0.76/0.92

Rated Power [W]: 250/300

Rated Current [A]: 2.2/2.4

Rated Voltage/ Conn. [V]: 110/115-120 Low

Horsepower [Hp]: 1/3 …. 2/5

Power Factor [%]: 0.77/0.92

Rated Power [W]: 250/300

Rated Current [A]: 4.6/4.4

Rated Speed [rpm]: 1425/1725

Frequency [Hz]: 50/60

Ambient Temperature [°C]: 40

Duty: S1 Cont.

Insulation Class: F

Weight [kg]: 23.2
