Effeff 1905…F31 Electric Strike Plate
New
In stock1 unitReady to ship
Electric Strike Plate
The Effeff Assa Abloy 24 V GS EE UNIVERSAL electric strike plate is designed for security systems with a universal DIN-direction. It operates with a voltage tolerance range of ± 2V, ensuring reliable performance across a variety of applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

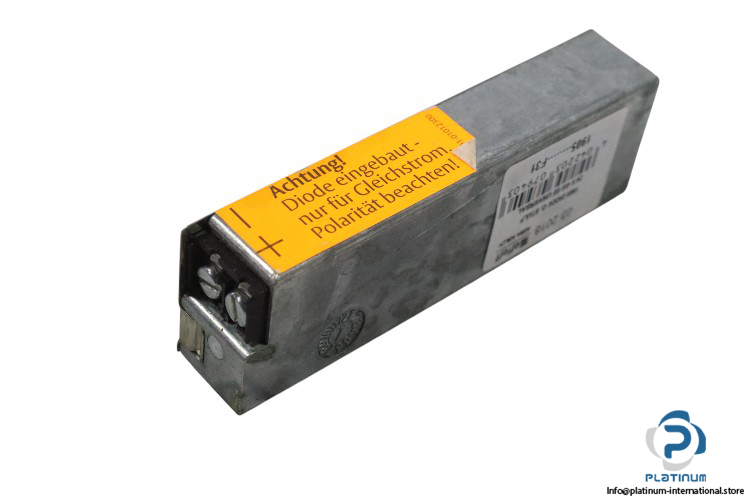

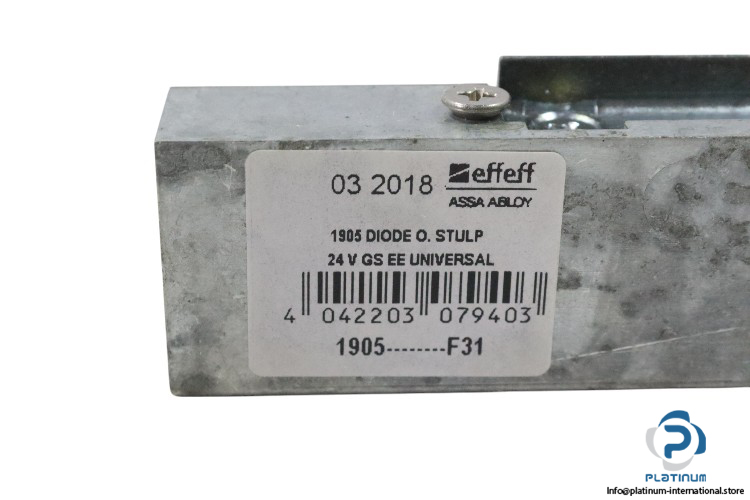

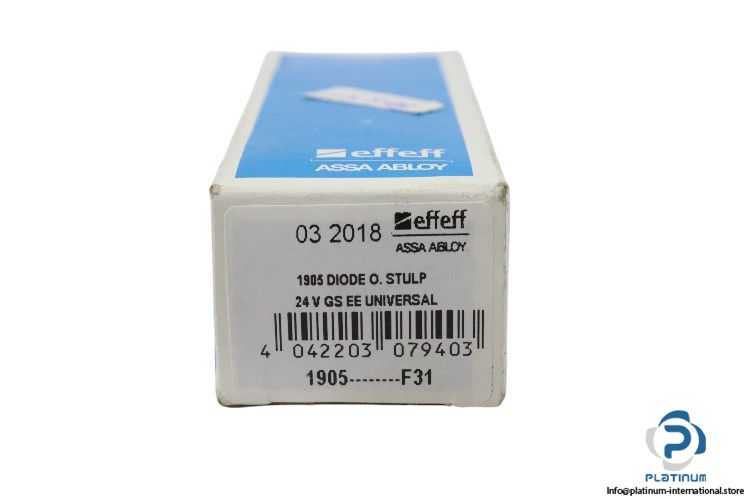

Effeff Assa Abloy 24 V GS EE UNIVERSAL “ Electric Strike Plate
The Effeff Assa Abloy 24 V GS EE UNIVERSAL electric strike plate is designed for high-performance security applications. This universal device is built with durable materials and offers reliable operation across various voltage ranges and environmental conditions.
Manufacturer: Effeff Assa Abloy
Type: Electric Strike Plate
Model: 24 V GS EE UNIVERSAL
ART. No.: 1905F31
EAN No.: 4 042203 079403
Dimensions:
| DIN-direction | Universal |
| Rated Operating Voltage Tolerance Range | ± 2V |
| Rated Resistance | 235 Ohm |
| Current Consumption | 70 mA |
| Current Consumption DC (50% Residual Ripple) | 100 mA |
| DC Power Consumption (Stabilized) | 105 mA |
| Break-in Resistance | 3000 N |
| Operating Temperature Range | -15 to +40 °C |
| Material Housing | Zinc die-cast |
| Material Screw-on Attachment | Brass |
| Max. Latch Preload AC | 80 N |
| Max. Keeper Pre-load DC (50% Residual Ripple) | 20 N |
| Max. Latch Preload DC (Stabilized) | 10 N |
| Width | 16.5 mm |
| Depth | 28 mm |
| Height | 90 mm |
