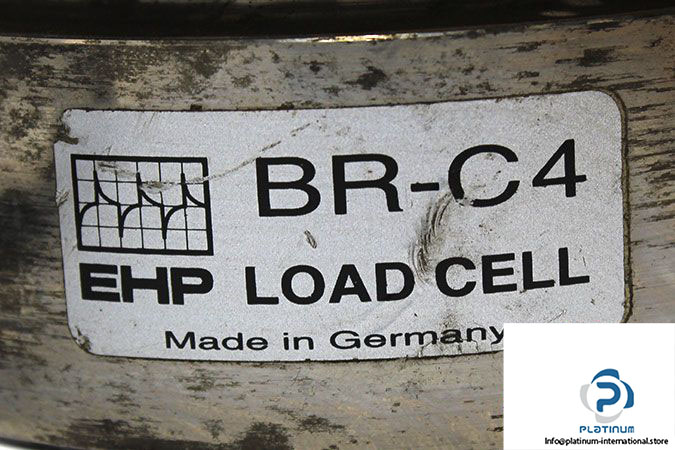

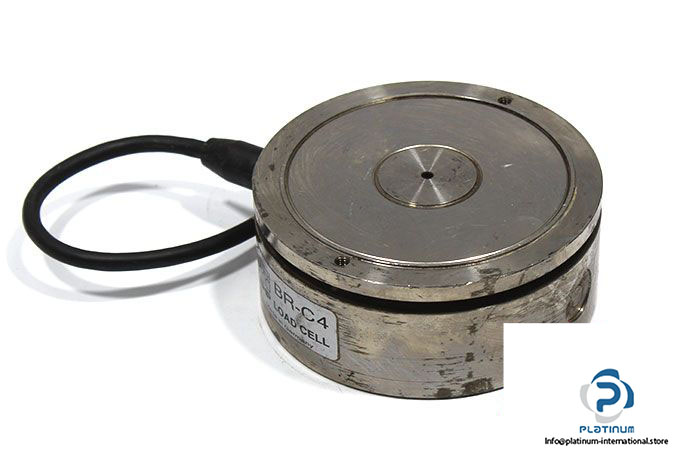

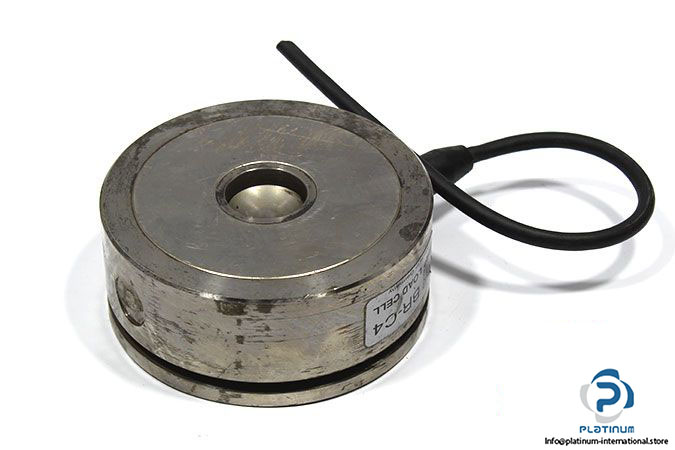

EHP BR-C4 MAX 30000 KG Compression Load Cell

Manufacturer: EHP

Type: Compression Load Cell

Model: BR-C4

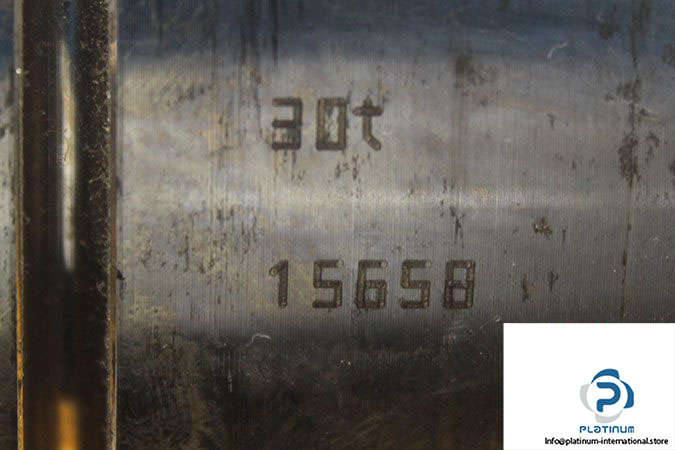

Maximum weight limit (E max): 30000 kg (30 t)

Rated Sensitivity: 2 mV/V

Max. Voltage Supply: 30 V DC

Input Resistance: 1160 ± 60 Ω

Output Resistance: 1015 ± 65 Ω

Normal Temperature: -10…40 °C

Class: C4

Protection Class: IP68

Weight: 3.120 kg
