Elau AG SM 100-30-080-P1-45-S1-B0 Servo Motor
Used
Available on request
Servo Motor
The ELAU AG / Schneider Electric SM-100-30-080-P1-45-S1-B0 Servo Motor is designed for industrial automation, with a 400V rated voltage, 18.0A peak motor current, and a 3000 RPM speed. It offers high precision and reliability with a SinCos encoder and IP 64/65 protection class.3000400V64/658/2ElectricEncoderHighIndustrialIPmotorNmNominalPrecisionrpmSchneiderServoSincosSM-100-30-080-P1-45-S1-B0Torque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

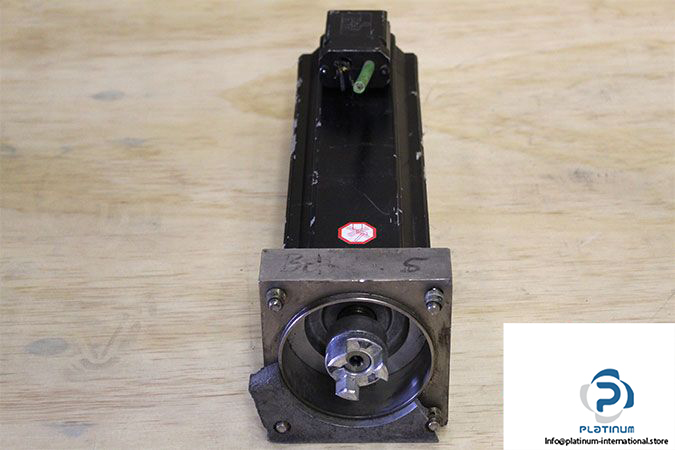

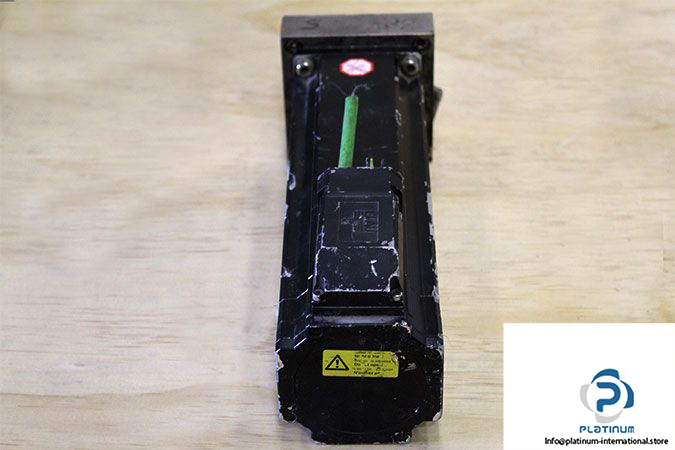

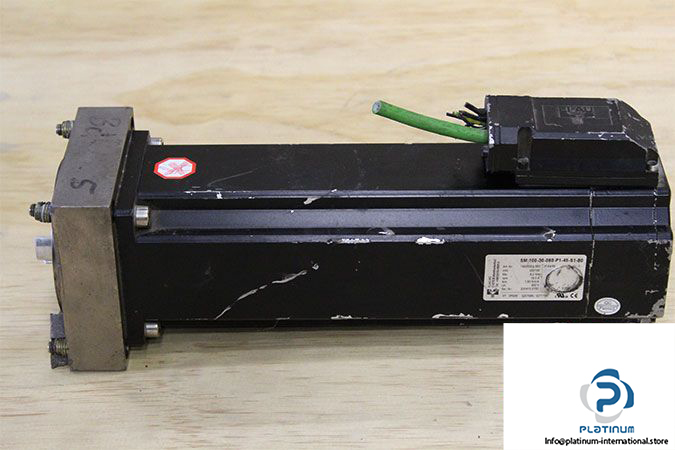

ELAU AG / Schneider Electric SM-100-30-080-P1-45-S1-B0 Servo Motor
The ELAU AG / Schneider Electric SM-100-30-080-P1-45-S1-B0 Servo Motor is a high-performance motor designed for precision applications. With a rated voltage of 400 V and a peak motor current of 18.0 A, it delivers excellent torque and speed performance. This motor is ideal for demanding industrial automation systems where efficiency and durability are crucial.

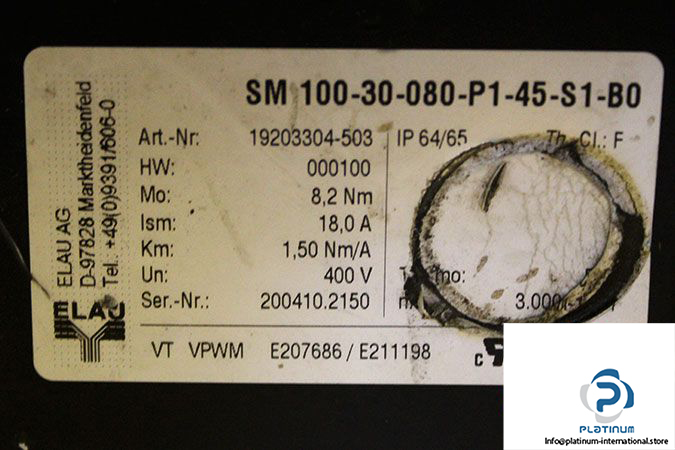

Manufacturer: ELAU AG / SCHNEIDER ELECTRIC
Type: Servo Motor
Model: SM-100-30-080-P1-45-S1-B0
Atr. No: 19203304-503
Serial Number: 200410.2150 / VT VPWM E207686 / E211198
Hardware Code: 000100
Technical Data:
- Rated Voltage: 400 V
- Peak Motor Current (ISM): 18.0 A
- Speed: 3000 RPM (Revolutions per Minute)
- Torque Constant of The Motor (KM): 1.50 Nm/A
- Nominal Torque: 8.2 Nm
- Flange Size: 100 mm
- Encoder: SinCos Single-Turn
- Insulation Class: F
- Protection Class: IP 64/65
