Elau SM 100-50-030-P0-44-S1-B0 Servo Motor With Gearbox

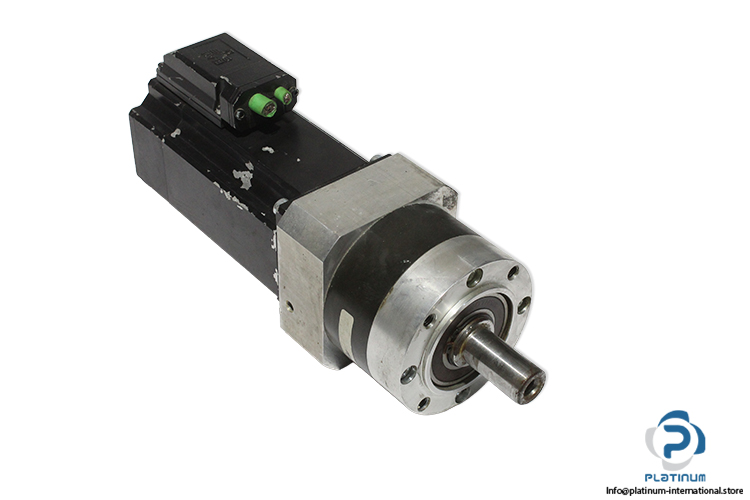

Elau AG SM100-50-030-P0-44-S1-B0 Servo Motor with NEUGART PLE120 Gearbox

The Elau AG SM100-50-030-P0-44-S1-B0 is a high-performance 3-phase servo motor equipped with a NEUGART PLE120 gearbox, designed for precision motion control and industrial automation applications requiring high torque accuracy and reliable performance.

Manufacturer: Elau AG

Type: 3-Phase Servo Motor with Gearbox

Model: SM100-50-030-P0-44-S1-B0

Article Nr: 19203501-501

Serial No.: 9060071

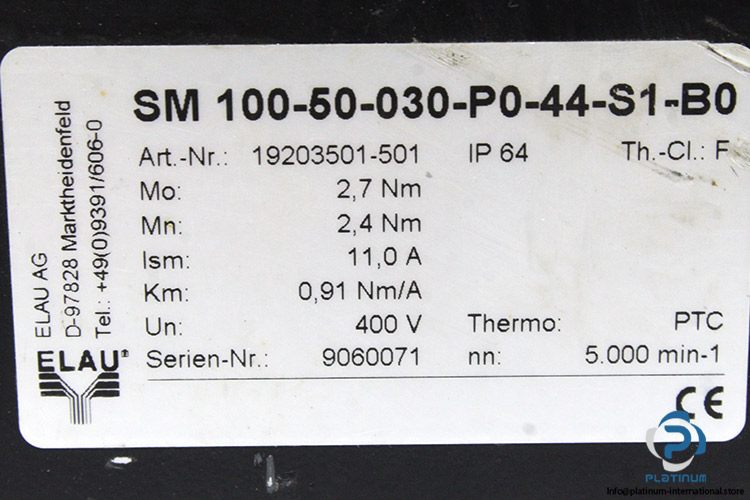

Technical information “ Servo Motor

• Size: 100 mm
• Rated Voltage (Un): 400 V
• Peak Torque (Mo): 2.7 Nm
• Rated Torque (Mn): 2.4 Nm
• Rated Current (Ism): 11 A
• Torque Constant (Km): 0.91 Nm/A
• Rated Speed (nN): 5000 rpm
• Insulation Class: F
• Thermal Protection: PTC (Thermal Sensor)
• Protection Class: IP64
• Encoder: S1, SinCos Single-Turn
• Shaft End: Cylindrical Shaft

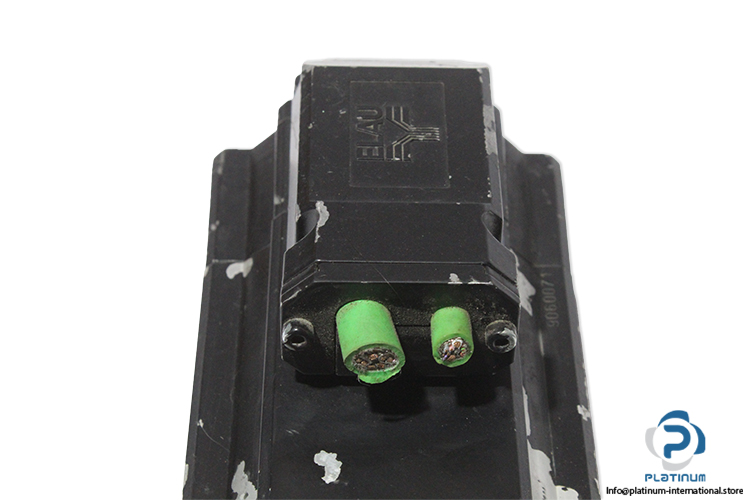

• Connection: Forward Terminal Box for Power and Feedback Connection

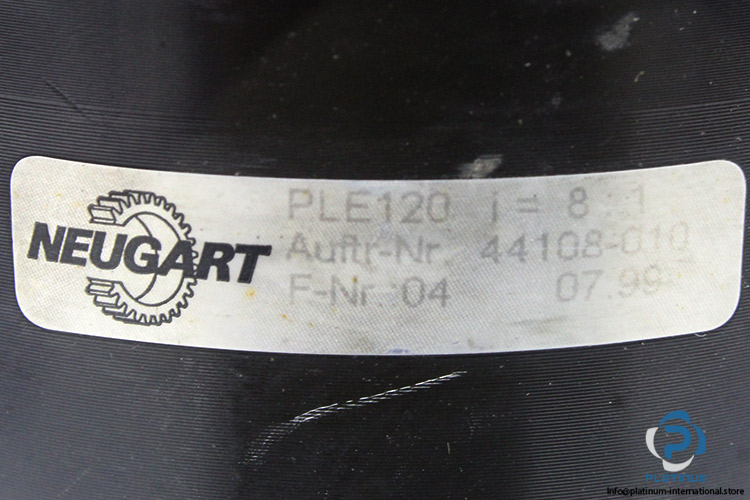

Technical information “ Gearbox (NEUGART PLE120)

• Manufacturer: NEUGART
• Model: PLE120
• Auftr. Nr.: 44108-010
• F-Nr.: 04 07.99
• Ratio (i): 8:1
• Size: 120
• Standard Lubrication: Grease (Lifetime Lubrication)
• Maximum Radial Force: 2000 N
• Maximum Axial Force: 3800 N

Ideal for high-precision positioning systems, CNC machinery, robotics, packaging lines, and advanced automation equipment requiring controlled speed and torque transmission.
