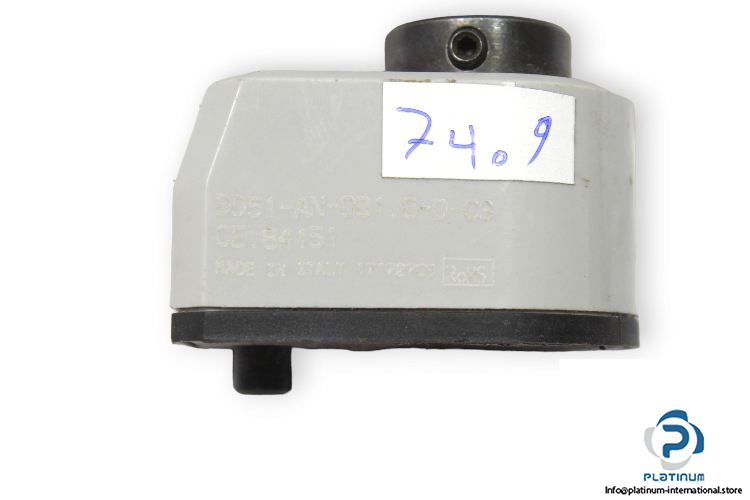

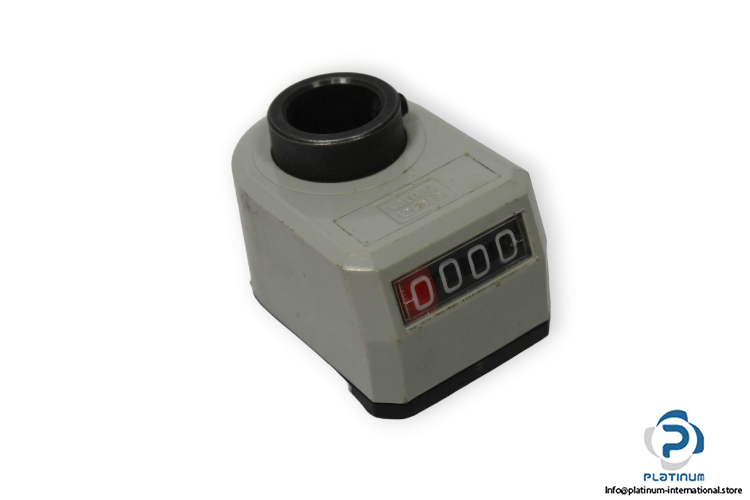

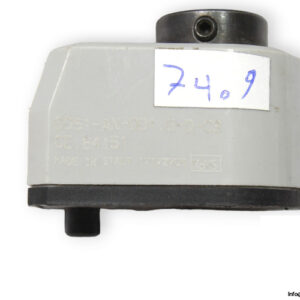

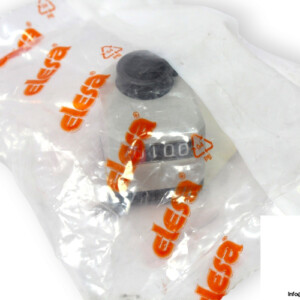

Elesa DD51-AN-001.0-D-C3 Digital Position Indicators Counter

Manufacture: Elesa
Type: Digital Position Indicators Counter
Model: DD51-AN-001.0-D-C3
Part No.: CE.84151
Series: DD51

Features and Applications: can be assembled on passing through spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications
Count digits: 4 digits
Display Position: AN
Reading of the counter after one revolution: 001.0
Speed: 1500 rpm
Increasing Numbering: clockwise
Display: inclined display, counter in upper position
Color: RAL 7035 grey, glossy finish
Dimensions: 38.5 x 47 x 33 mm
