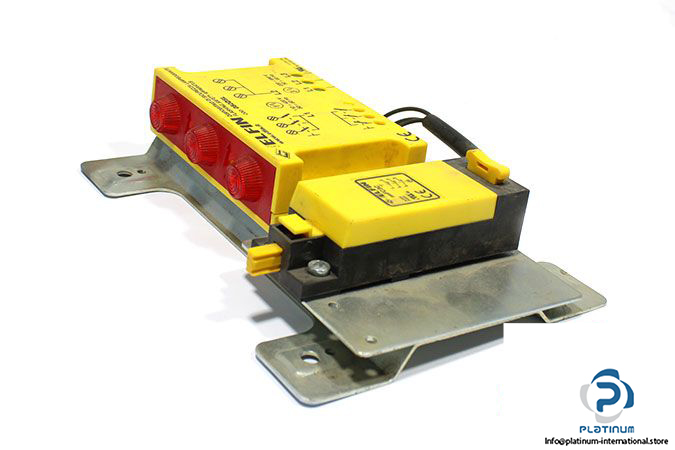

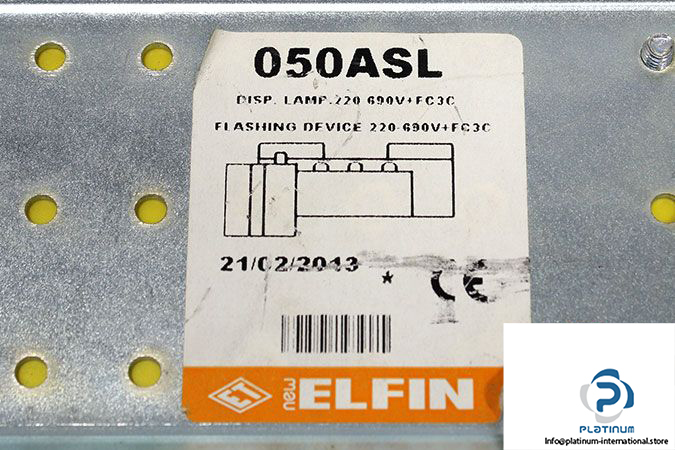

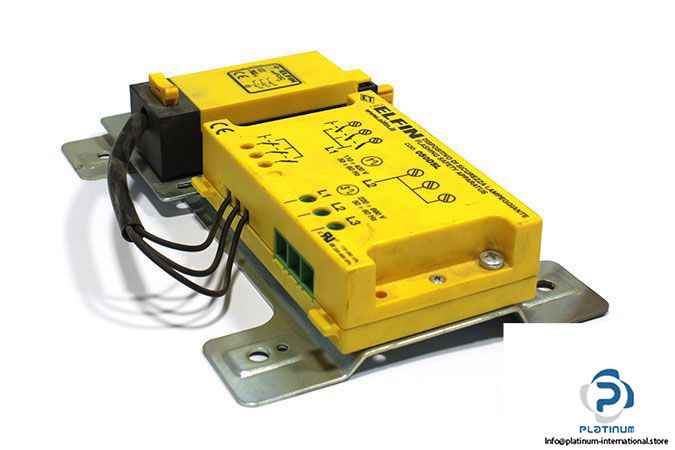

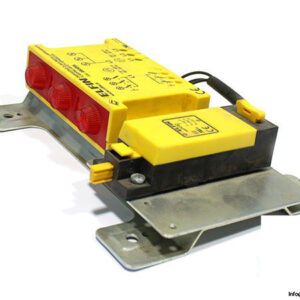

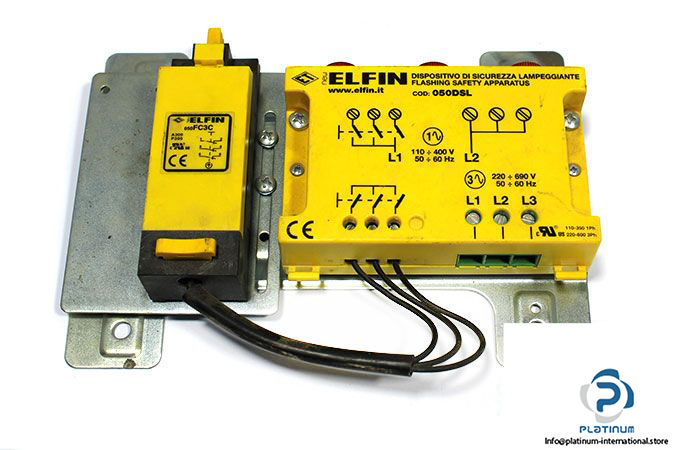

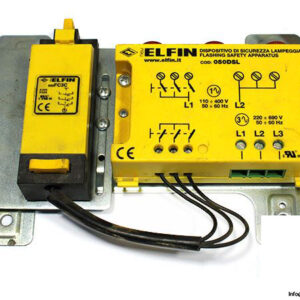

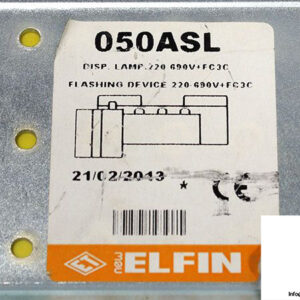

Elfin 050DSL Flashing Safety Device
Used
In stock1 unitReady to ship
111,11$
Flashing Safety Device The Elfin 050DSL is an industrial flashing safety device for single and three-phase AC systems, supplied with the 050ASL device and 050FC3C three-pole limit switch.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| 3 Phase | 220…690 V AC |
| Single Phase | 110…400 V AC |
| Frequency | 50/60 Hz |
| Approvals | CE, UL, CSA |
| Compliance with standards | IEC-EN60947-1, IEC-EN60947-5-1, UL508, CSA C22-2 |
| Compliance to EMC standards | EN61000-4-2,EN61000-4-3,EN61000-4-4,EN61000-4-5 Compliance to EMC standards:EN61000-4-6,EN61000-4-11,EN61000-6-2,EN61000-6-3 Compliance to EMC standards:EN50014-1,EN50082-2,EN55014,EN55022 Compliance to directives 2014/35/EU, 2014/30/EU, RoHS 2011/65/EU |
| Operating temperatures | -25° ÷ +65°C |
| Protection degree | IP20 (IEC-EN60529) |
| Protection against impact | IK03 (IEC-EN62262) |
| Housing material | ABS |
| Terminal blocks | Screw connection with tension sleeve |
| Attached with | Elfin 050ASL Flashing Safety Device |
| Voltage, 3 Phase | 220…690 V AC |
| Voltage, Single Phase | 110…400 V AC, 50/60 Hz |
| Consist Of | ELFIN 050FC3C THREE-POLE LIMIT SWITCH |
| Rated Insulation Voltage | 690 V |
| Rated Thermal Current | 10 A |
| Terminal Torque | 0.5 Nm |
| Contact Operation | Slow Break, Self-Cleaning Sliding Activation NC Positive Action |
| Protection Class | IP40 |
| Condition | Used |
| SKU | 990907 |
| Weight | 0,49 |
