Elgo Electric AZ16E-300 Battery Powered Linear Measuring Unit
Used
In stock2 unitsReady to ship
LINEAR MEASURING UNIT
ELGO AZ16 is a battery-powered linear measuring system with 0.1 mm resolution, 8 m range, 7-digit LCD, and RS485 interface. Connects to 3 external sensors and features compact, durable design for industrial use.0.1ABSAZ16BatteryDisplayElgoEncoderHousingIndustrialInterfaceIP54LCDLinearMagneticMeasurMeasurementMeasuringmmPanelPoweredResolutionRS485ScaleSystemTapeUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
ELGO ELECTRIC AZ16 LINEAR MEASURING UNIT

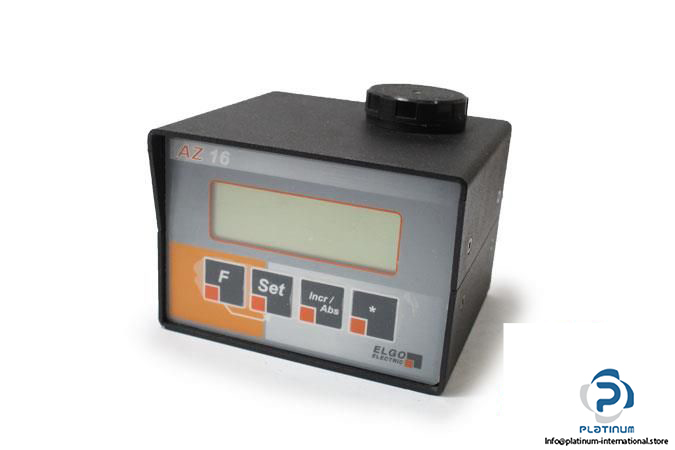

The ELGO AZ16 is a battery-powered linear measuring unit designed for precision, reliability, and flexibility in industrial and mechanical applications. This model supports up to three external sensors, offers user-friendly operation via membrane keypad, and features a compact, rugged design for harsh environments.
Manufacturer: ELGO ELECTRIC
Type: Battery Powered Linear Measuring Unit
Model: AZ16

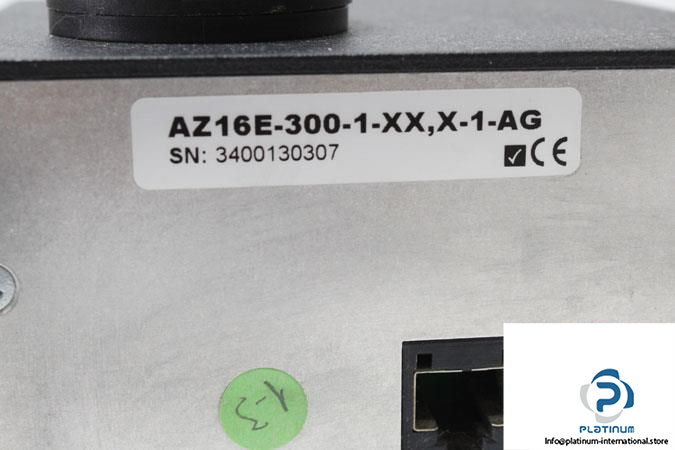

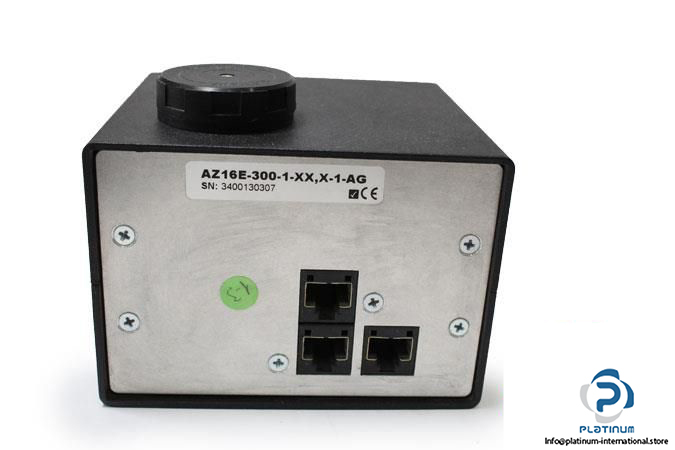

MNR: AZ16 E-300-1-XX,X-1-AG
Serial No.: 3400130307
| Power Supply | 1 commercial battery size C (1.5 V) |
| Indicator | Connectable with 3 external sensors |
| Encoder Resolution | 0.1 mm |
| Measuring Length | Max. 8 m |
| Measurement Type | Linear (no rotative movements) |
| Display | 7-digit LCD, 6 decades, height = 8 mm, includes battery status and symbols |
| Keypad | Membrane keypad with short stroke keys |
| Interface | RS485 |
| Housing Material | ABS plastic, black |
| Housing Dimensions (W x H) | 96 x 72 mm |
| Panel Cutout (W x H) | 93 x 67 mm |
| Altitude | Max. 2000 m above sea level |
| Protection Class (Front) | IP54 |
| Protection Class (Rear) | IP40 |
| Protection Class (Installed) | IP43 |
| Operating Temperature | 0 to +50° C |
| Magnetic Tape | Compatible with AZ16 |
| Bend Radius | Min. 150 mm |
