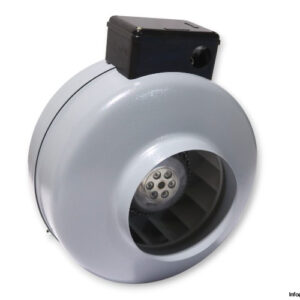

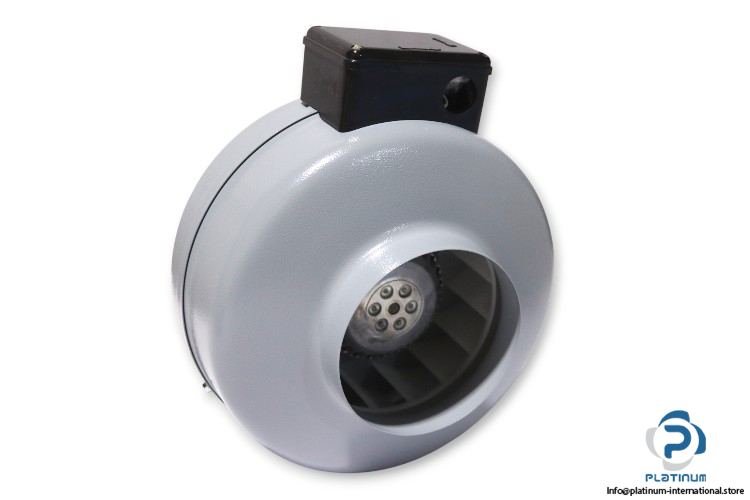

Elicent AXC 125 A Centrifugal FAN
Centrifugal In-Line Duct Fan
Powerful and efficient duct fan, 230 V AC, 70 W, 300 Pa, and 245 m³/h airflow. Equipped with 16 blades and IPX4 protection, suitable for industrial ventilation, HVAC systems, and continuous airflow applications.Elicent AXC125A Centrifugal In-Line Duct Fan
The Elicent AXC125A is a high-efficiency centrifugal in-line duct fan engineered for powerful ventilation and continuous operation. It offers excellent air performance with low noise levels, making it ideal for HVAC systems, industrial enclosures, and air extraction setups where reliability and compact design are essential.

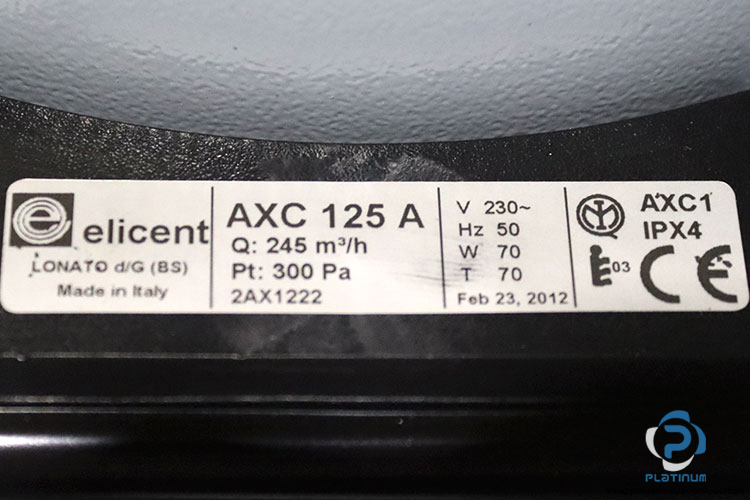

Manufacturer: Elicent

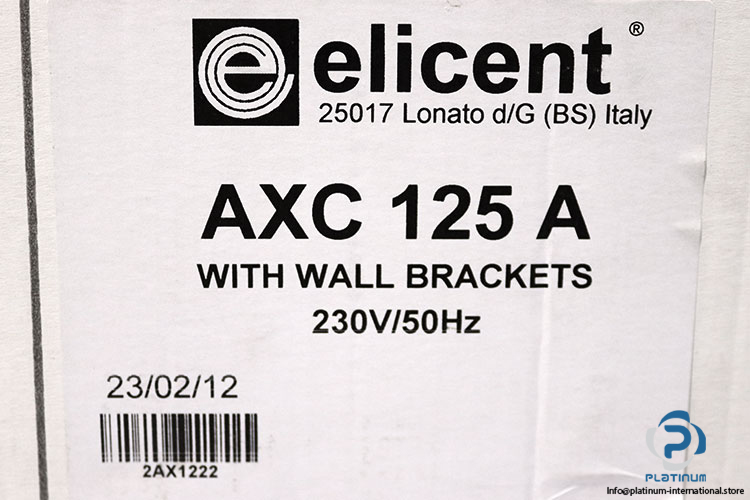

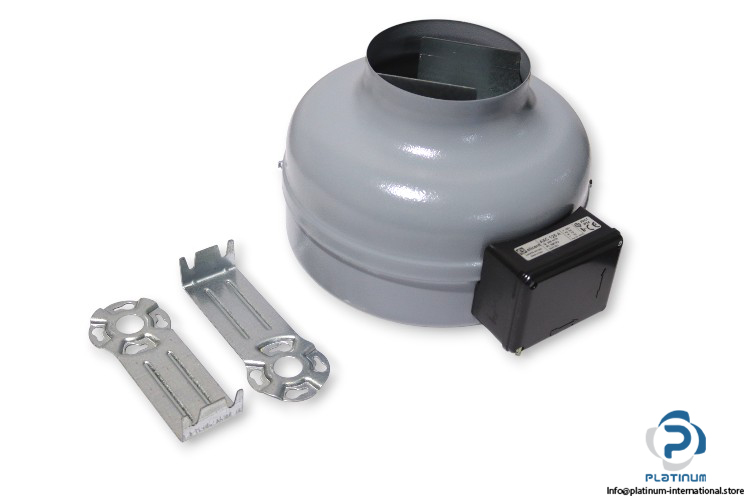

Type: Centrifugal in-line duct fan with Wall mounting brackets
Model: AXC125A
Code: 2AX1222
Series: AXC
Motor Specifications
Built with a sturdy plastic and metal construction, this fan ensures high resistance to temperature and environmental conditions. The IPX4 protection degree guarantees safe operation even in humid or dusty environments. With 16 aerodynamic blades and efficient airflow of up to 245 m³/h, the Elicent AXC125A provides reliable ventilation for commercial and industrial applications. Perfect for continuous use in HVAC systems, workshops, kitchens, or laboratories where effective air circulation is critical.
| Voltage (V AC) | 230 |
| Power Rating (W) | 70 |
| Frequency (Hz) | 50 |
| Pressure (Pa) | 300 |
| Flow Rate (m³/h) | 245 |
| Flow Rate (CFM) | 144.97 |
| No. of Blades | 16 |
| Dimensions (mm) | 214 x 245 |
| Protection Degree | IPX4 |
| Inverter | Without Inverter |
| Temperature | 70°C |
| Blade / Housing Material | Plastic / Metal |

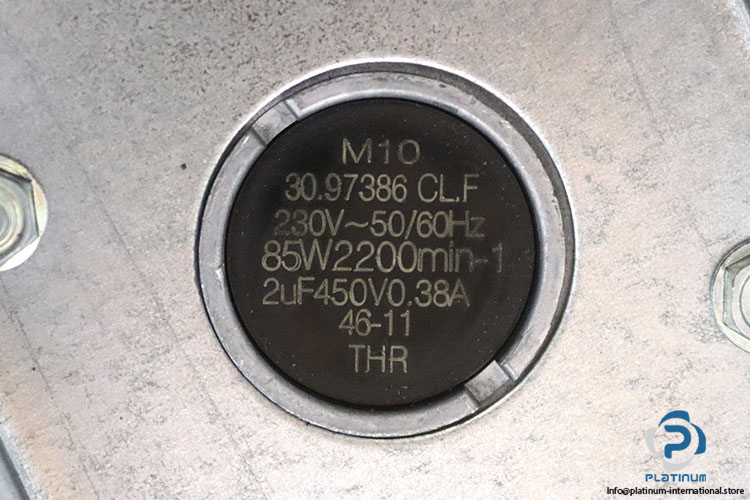

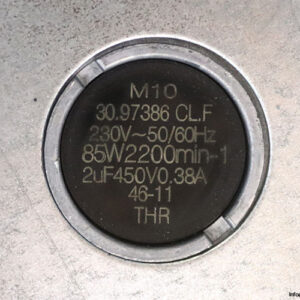

| Motor Type | M10 (30.97386 CL.F) |
| Motor Voltage | 230 V AC, 50/60 Hz |
| Motor Power | 85 W |
| Motor Speed | 2200 rpm |
| Capacitance | 2 µF at 450 V, 0.38 A |

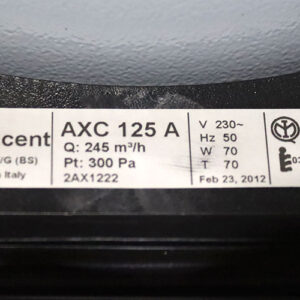

| Marking | 46-11 THR |
