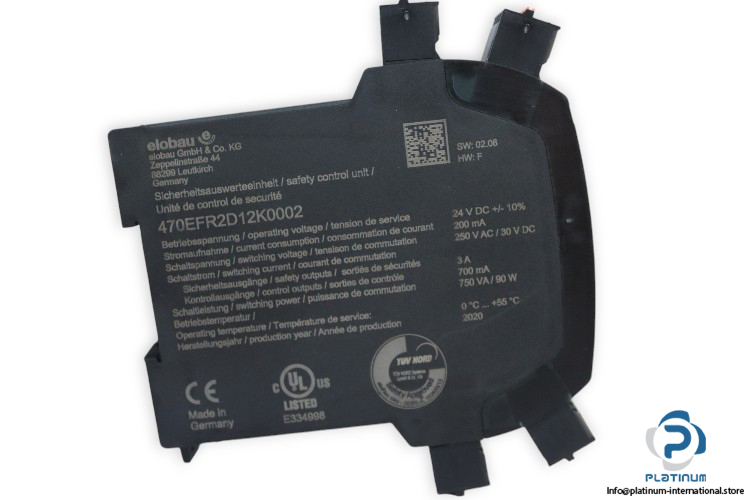

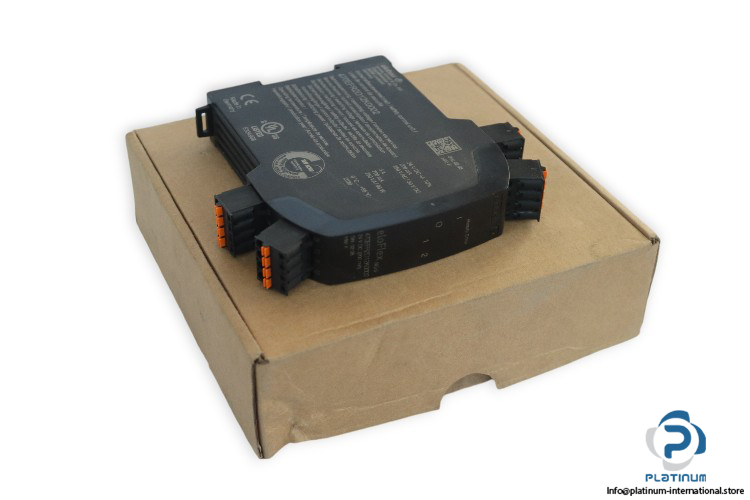

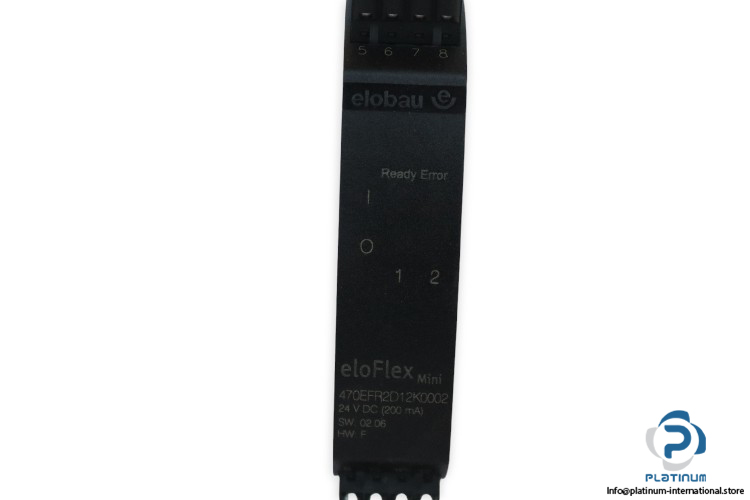

Elobau 470EFR2D12K0002 Safety Control Unit

Manufacturer: Elobau
Type: Safety Control unit
Model: 470EFR2D12K0002
Family: eloFlex mini

Operating voltage: 24 V DC
max. current consumption: 200 mA
Max. switching voltage: 250 V AC / 30 V DC
Max. switching current: 3 A
Switching voltage control output: 24 V DC
Switching current control output: 700 mA
Max. switching power: 750 VA / 90 W

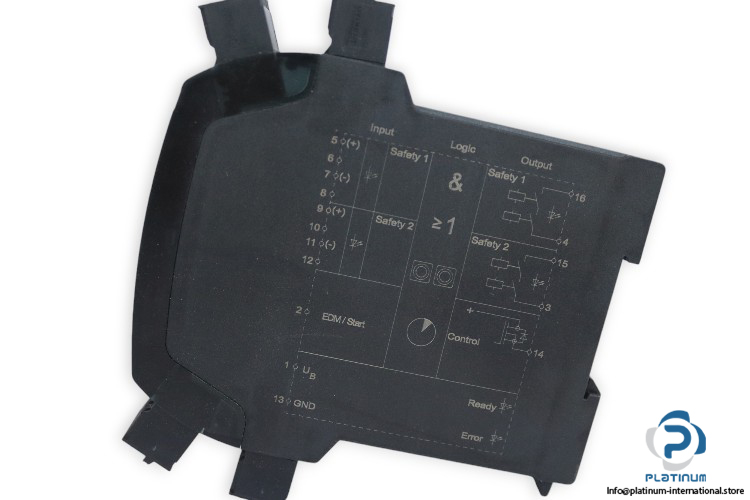

No. of Sensor inputs: 2
No. of Safety outputs: 2
Operating time: 3 sec
Connection terminal: 0,2 – 2,5 mm²
Operating time 2-hand control Unit: 0,5 sec
Safety characteristics: SILCL: 2 / PL: d / cat.: 3 / PFHD (1/h): 7,42e-8
Temperature range: 0 … +55°C
Dimensions: 120 x 22.5 x 132 mm
