Eltra EL63D1000S5/28P10X3PR Incremental Encoder
Used
In stock1 unitReady to ship
ELTRA Incremental Encoder EL63D1000S5/28P10X3PR
High-precision encoder with 1000 ppr resolution, 5-28 V DC, 10 mm solid shaft, IP54 rating, and 250 kHz output frequency.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

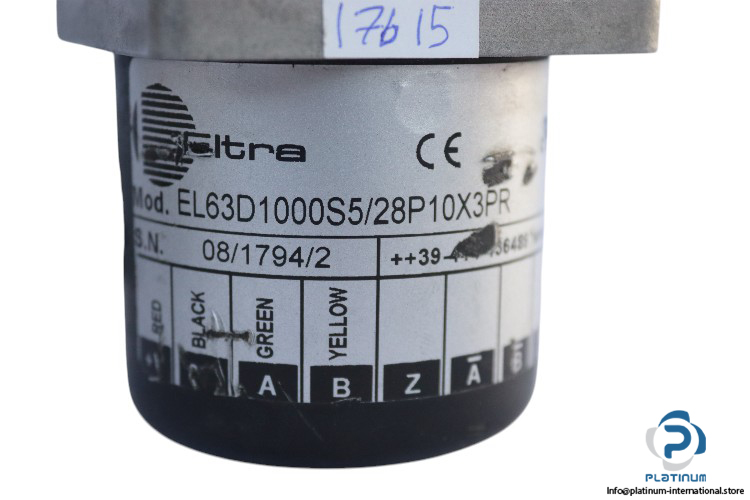

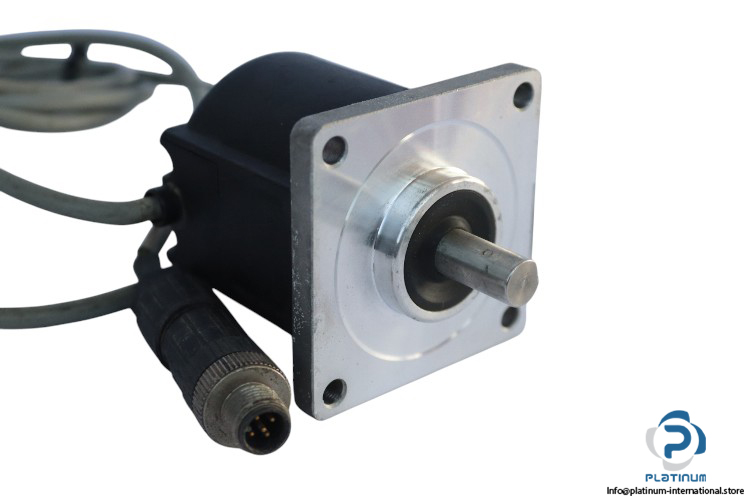

ELTRA Incremental Encoder EL63D1000S5/28P10X3PR
The ELTRA EL63D1000S5/28P10X3PR is a high-precision incremental encoder designed for rotary motion measurement. It features a solid shaft, 1000 ppr resolution, and a push-pull electronic interface for reliable data output. Suitable for industrial applications, this encoder operates at a maximum rotation speed of 3000 rpm and provides robust performance with an IP54 enclosure rating.
- Manufacturer: ELTRA
- Type: Incremental Encoder
- Model: EL63D1000S5/28P10X3PR
- Principle of Operation: Incremental
- Shaft Type: Solid shaft
- Power Supply: 5 / 28 V DC
- Mounting Type: Centering square flange
- Electronic Interface: Push-pull
- Output Type: Cable
- Direction Type: Radial
- Measurement Type: Rotary
- Resolution (ppr): 1000
- Shaft Diameter: 10 mm
- Max Rotation Speed: 3000 rpm
- Construction Size (Diameter): 63 mm
- Max Output Frequency: 250 kHz
- Cable Length: 1.5 m
- Type of Sensor: Optical
- Enclosure Rating: IP54
- Operating Temperature: -10 / 60 °C
