Embraco NEU6187Z Compressor AND Suction Accumulator

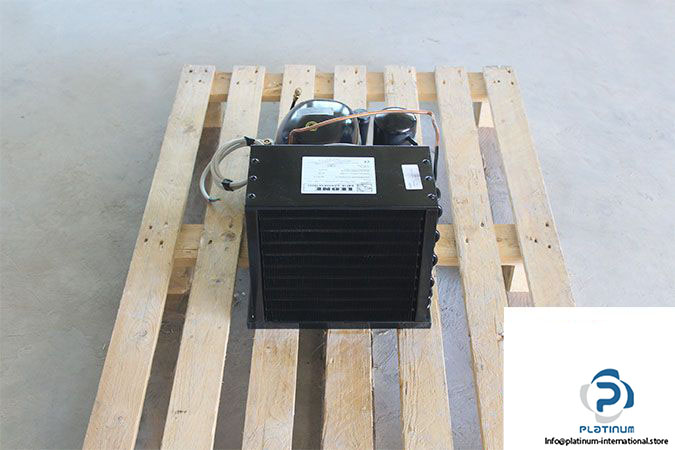

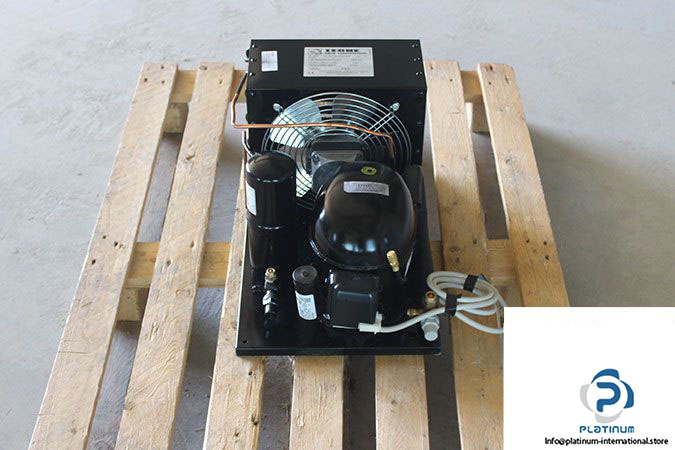

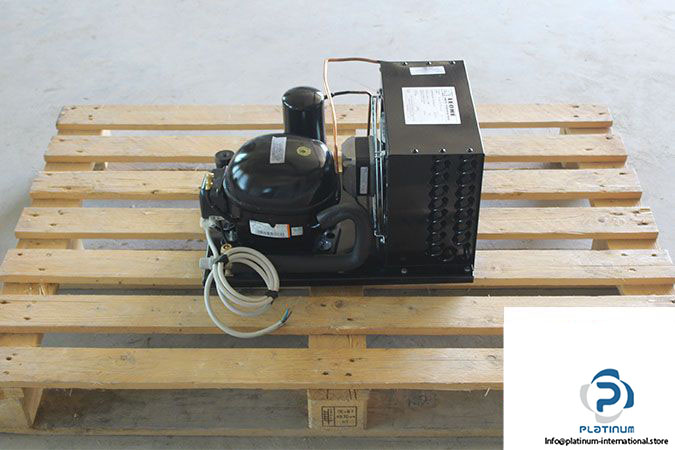

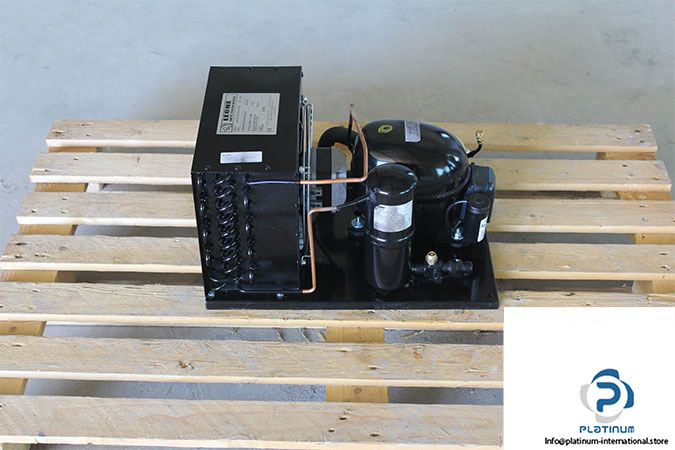

EMBRACO NE U6187Z COMPRESSOR ASSEMBLY

This high-performance compressor assembly combines the Embraco NE U6187Z compressor with an Ebmpapst motor fan and Frigomec suction accumulator to deliver a complete, reliable cooling solution. Ideal for refrigeration systems requiring efficient and robust operation across variable temperatures and loads.

Manufacturer: Embraco
Type: Compressor
Model: NE U6187Z
Engineering Nr.: 267JN51

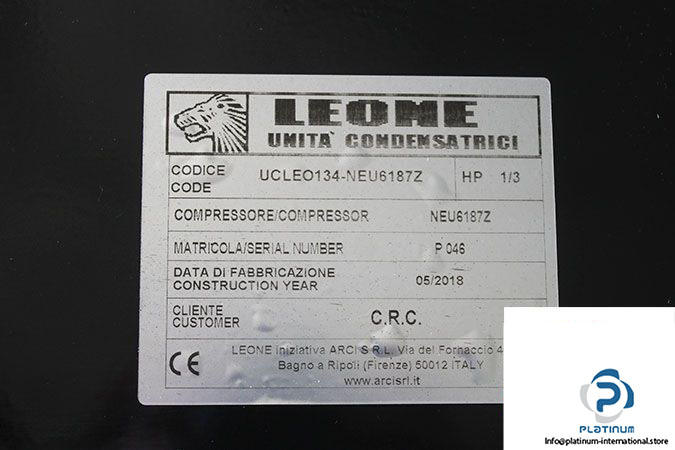

Code: UCLEO134- NE U6187Z
Phase: 1~ Single Phase

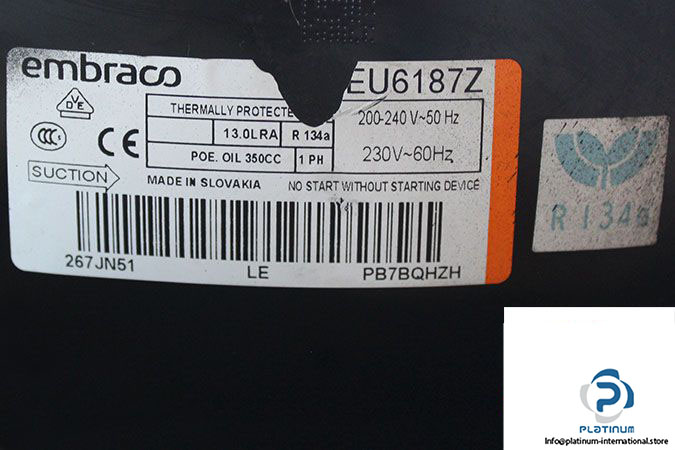

Technical Information “ Compressor

• Horsepower [Hp]: 1/3
• Rated Voltage [V]: 200 to 240 / 230
• Displacement [cm³]: 9.99
• Bore [mm]: 26.497
• Stroke [mm]: 18.12
• Range Temperature [°C]: -15 to 10
• Locked Rotor Amperage [A]: 13.0
• Lubricants Type/Viscosity: ESTER / ISO22
• Frequency [Hz]: 50 / 60
• Refrigerant: R-134a
• Lubricant Charge [ml]: 350

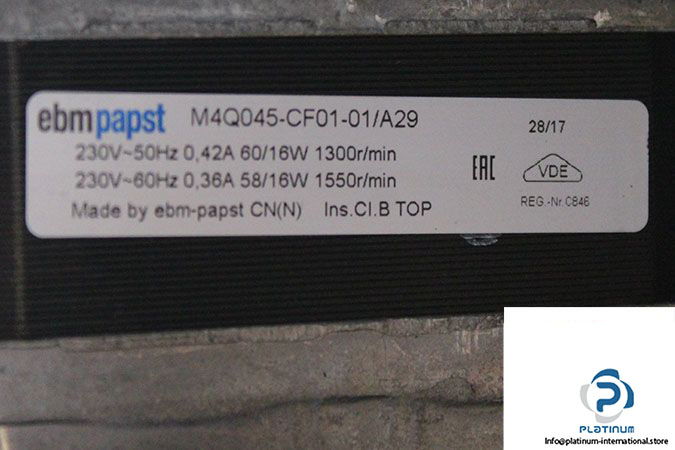

Technical Information “ Motor Fan

Manufacturer: Ebmpapst
Type: Motor Fan
Model: M4Q045-CF01-01

• Nominal Voltage [V]: 230 / 230
• Current Draw [A]: 0.42 / 0.36
• Power Consumption [W]: 60 / 58
• Power Output [W]: 16 / 16
• Frequency [Hz]: 50 / 60
• Speed [rpm]: 1300 / 1550
• Ambient Temperature [°C]: -30 to 40
• Degree of Protection [IP]: 42
• Insulation Class: H

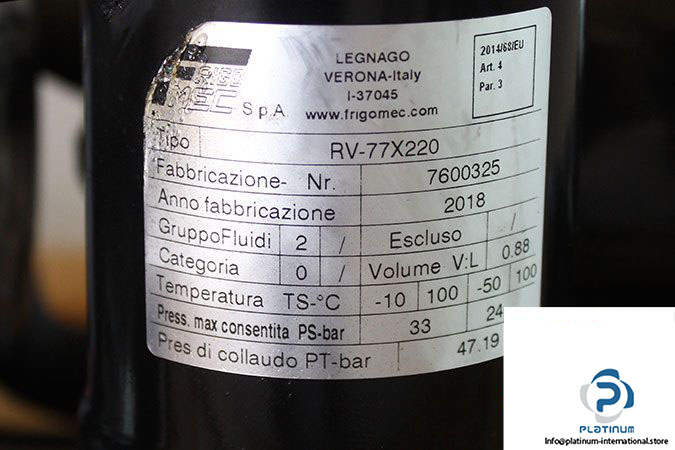

Technical Information “ Suction Accumulator

Manufacturer: Frigomec
Type: Suction Accumulator
Model: RV-77X220
Part No.: 7600325

• Fluids Group: 2
• Volume [L]: 0.88
• Temperature [°C]: -10 to 120 / -50 to 100
• Max Pressure [bar]: 33 / 24
• Test Pressure [bar]: 47.19
