Embraco NEU6212Z Compressor
New
In stock1 unitReady to ship
COMPRESSOR SYSTEM
High-performance single-phase compressor unit featuring Embraco NE U6212Z, Elco shaded pole motor, and Frigomec suction accumulator. Ideal for reliable and energy-efficient refrigeration systems.1/224accumulatorbarcompressorCoolingElcoEmbracoFrigomecHPmotorNENET2T18PVN004PoleR-134aRefrigerationRV-100X203shadedSingle-PhaseSuctionSystemU6212Z
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

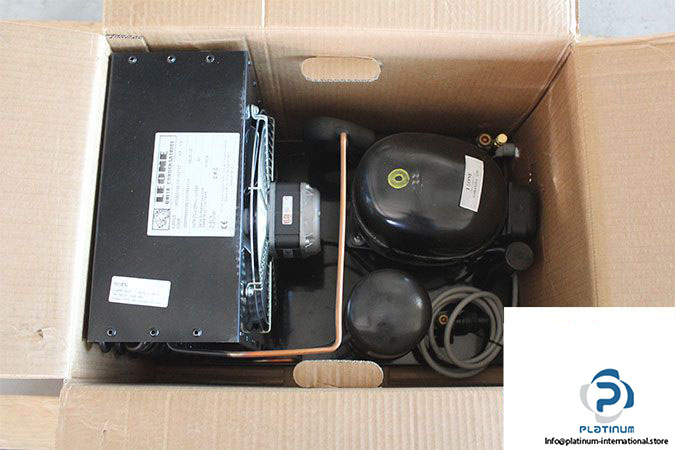

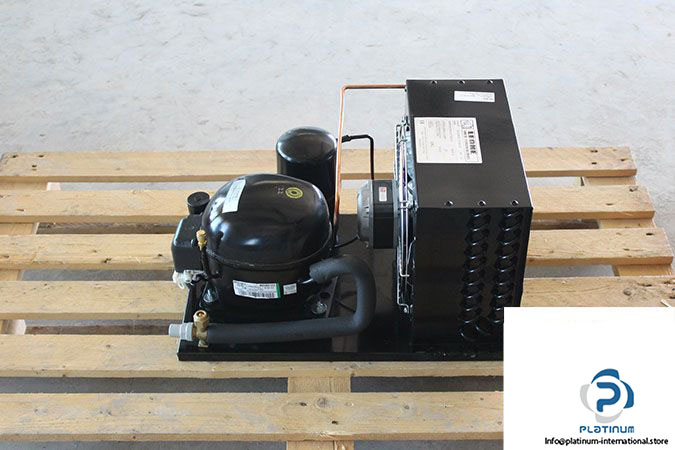

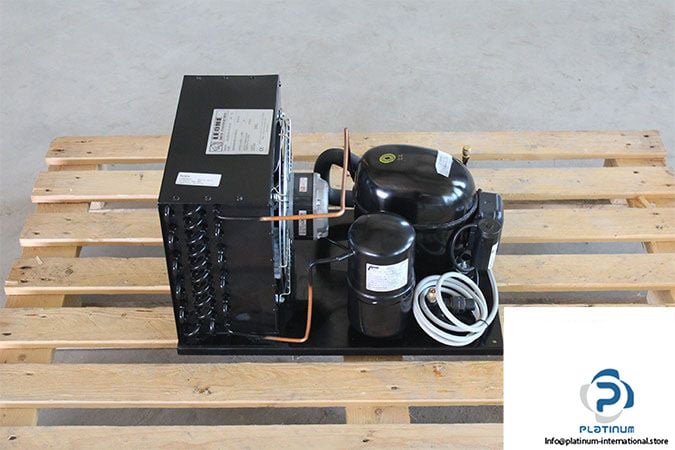

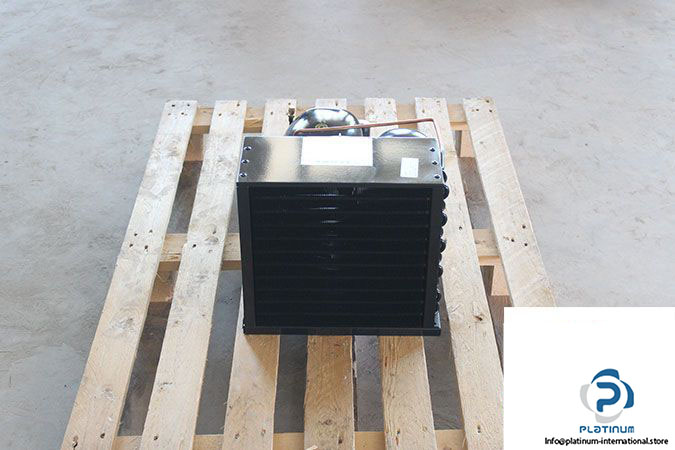

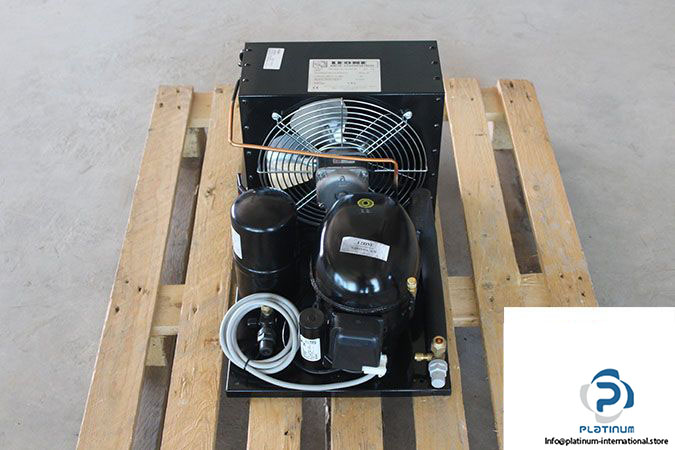

EMBRACO NE U6212Z COMPRESSOR WITH ELCO MOTOR & FRIGOMEC ACCUMULATOR
This complete compressor system combines the Embraco NE U6212Z single-phase compressor, Elco NET2T18PVN004 shaded pole motor, and Frigomec RV-100X203 suction accumulator. Designed for high-efficiency refrigeration and cooling, this assembly delivers reliable performance, optimal airflow, and safety in demanding environments.

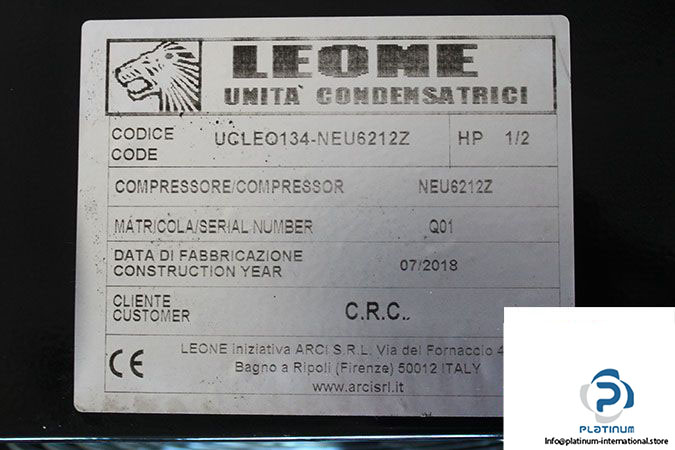

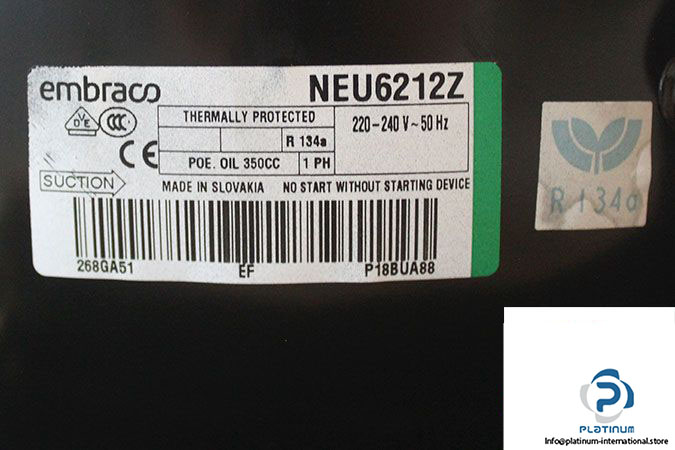

Manufacturer: Embraco
Type: Compressor
Model: NE U6212Z
Part No.: P18BUA88
Engineering Nr.: 268GA51
Phase: 1~ Single Phase
| Horsepower [Hp] | 1.2 |
| Rated Voltage [V] | 200 to 240 |
| Displacement [cm³] | 14.28 |
| Fan Air Flow [m³/h] | 520 |
| Bore [mm] | 30.16 |
| Stroke [mm] | 20.0 |
| Range Temperature [°C] | -15 to 10 |
| Locked Rotor Amperage [A] | 26.0 |
| Lubricant Type/Viscosity | ESTER / ISO22 |
| Lubricant Charge [ml] | 350 |
| Frequency [Hz] | 50 |
| Refrigerant | R-134a |

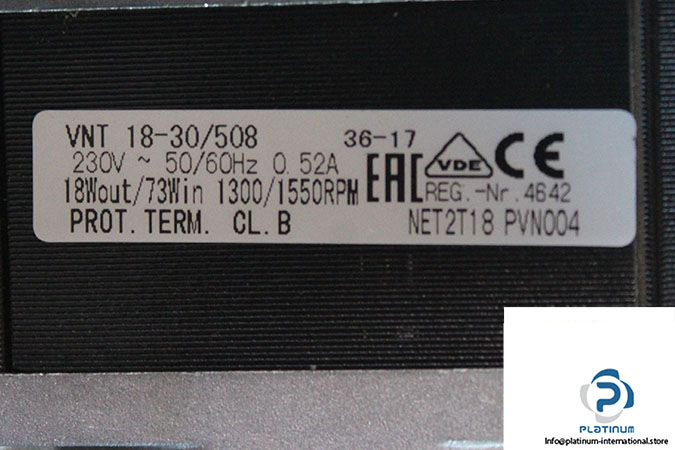

| Attached Motor | Elco NET2T18PVN004 |
| Type Motor | VNT18-30/508 |
| Nominal Voltage [V] | 230 |
| Rated Current [A] | 0.52 |
| Power Input [W] | 73 |
| Power Output [W] | 18 |
| Frequency [Hz] | 50/60 |
| Speed [rpm] | 1300/1550 |
| Degree of Protection [IP] | 44 |
| Insulation Class | B |

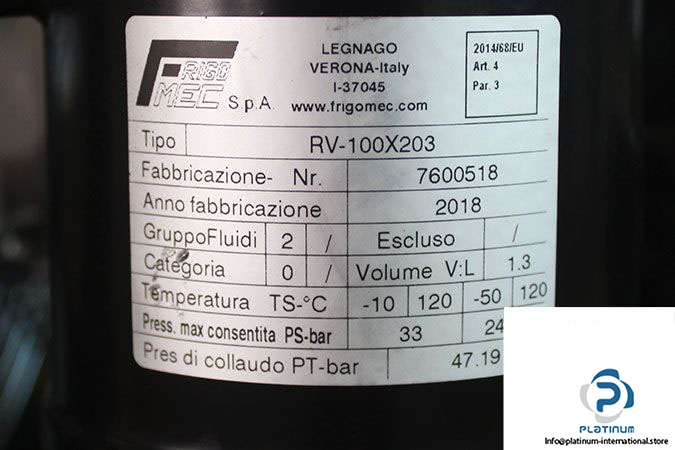

| Attached Accumulator | Frigomec RV-100X203 |
| Fluids Group | 2 |
| Volume [L] | 1.3 |
| Temperature Range [°C] | -10 to 120 / -50 to 100 |
| Max Pressure [bar] | 33 / 24 |
| Test Pressure [bar] | 47.19 |
