Embraco NT2178GK Compressor

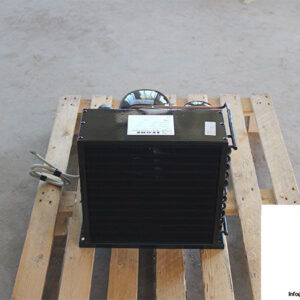

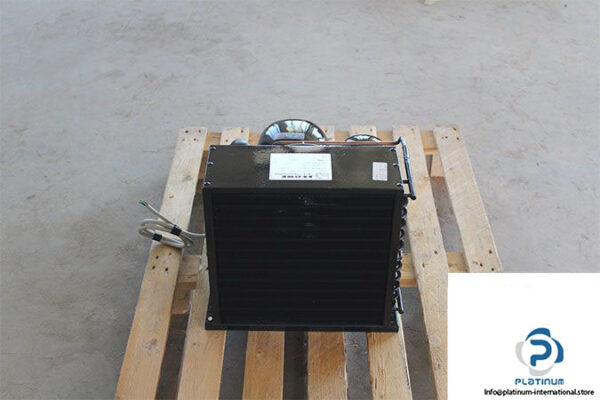

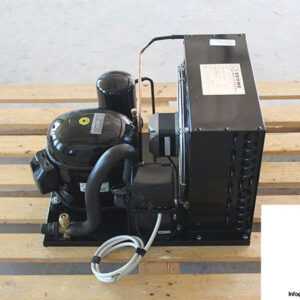

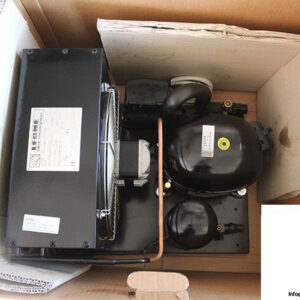

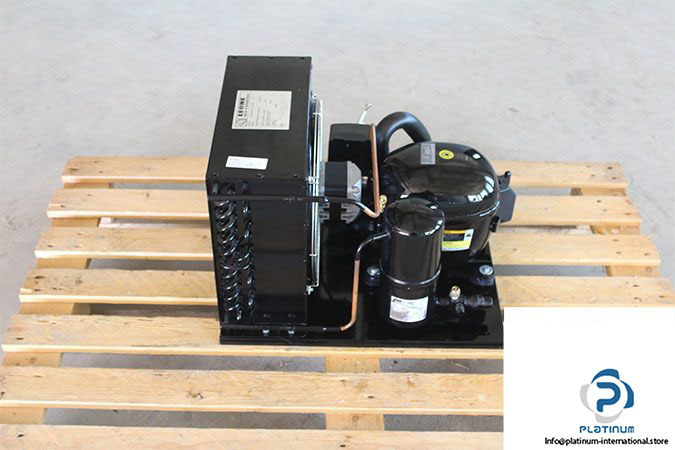

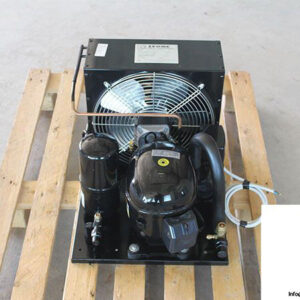

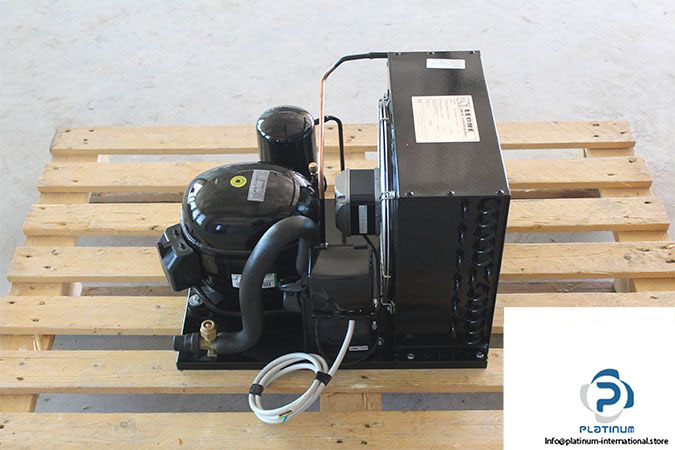

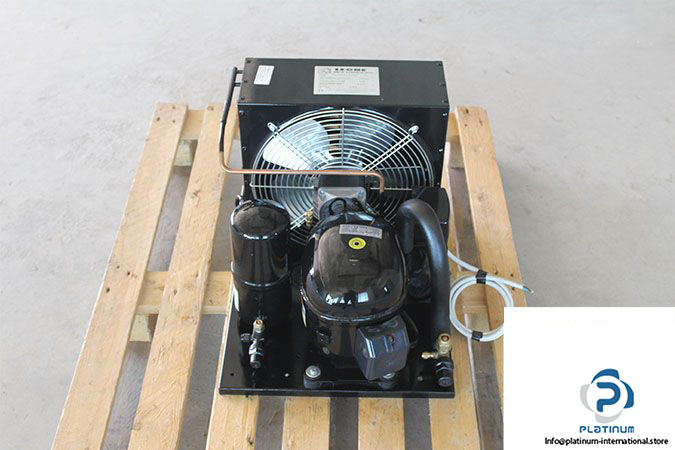

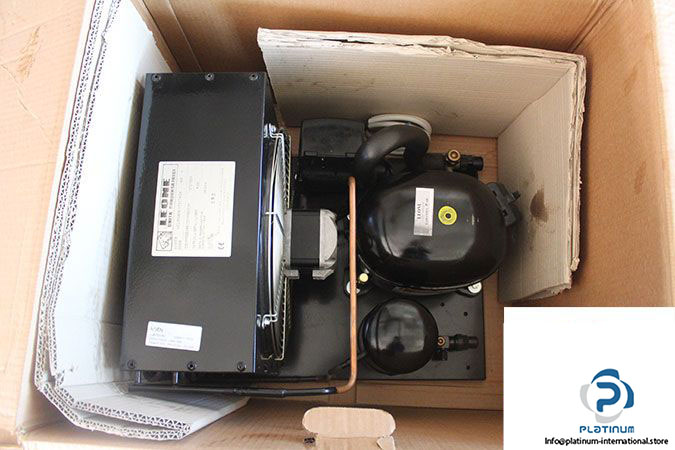

EMBRACO NT2178GK COMPRESSOR WITH EBMPAPST FAN MOTOR

This high-performance refrigeration compressor unit by Embraco is designed for low-temperature applications, featuring reliable single-phase operation and compatibility with R-404A refrigerant. It includes an integrated Ebmpapst axial fan motor for optimal cooling and system efficiency, making it ideal for commercial refrigeration systems requiring robust performance across variable ambient conditions.

Manufacturer: Embraco
Type: Compressors

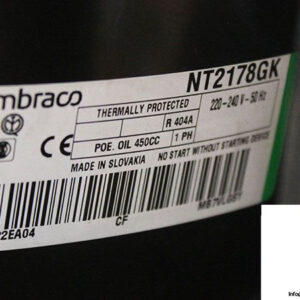

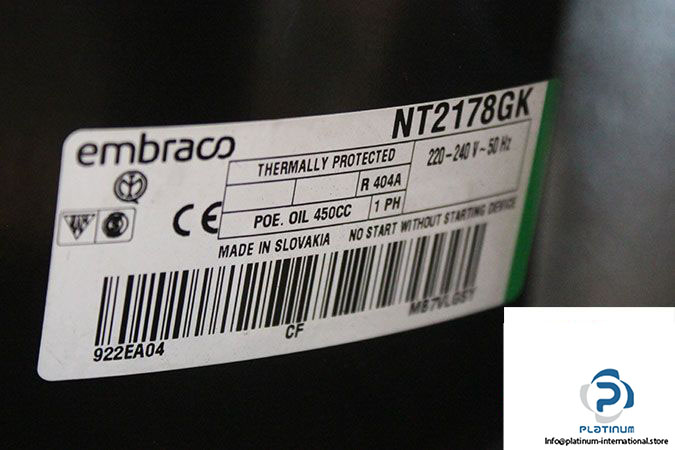

Model: NT2178GK
Engineering Nr.: 922EA04
Phase: 1~ Single Phase

Technical Information “ Compressor

• Horsepower [Hp]: 1-
• Rated Voltage [V]: 220 to 240
• Displacement [cm³]: 17.39
• Bore [mm]: 34.13
• Stroke [mm]: 19.03
• Range Temperature [°C]: -40 to 10
• Lubricants Type/Viscosity: ESTER / ISO22
• Frequency [Hz]: 50
• Refrigerant: R-404A
• Lubricant Charge [ml]: 450

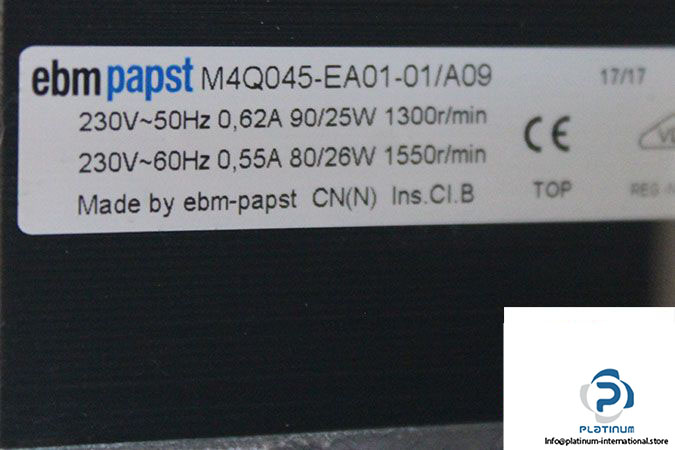

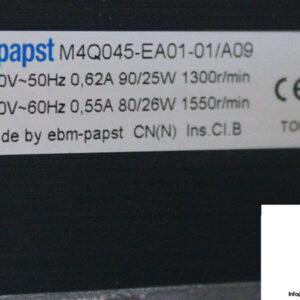

Attachment “ Motor Fan

Manufacturer: Ebmpapst
Type: Motor Fans
Model: M4Q045-EA01-01

Technical Information “ Fan Motor

• Nominal Voltage [V]: 230/230
• Current Draw [A]: 0.62/0.55
• Power Consumption [W]: 90/80
• Power Output [W]: 25/26
• Frequency [Hz]: 50/60
• Speed [rpm]: 1300/1550
• Ambient Temperature [°C]: -20 to 40
• Degree of Protection [IP]: 42
• Insulation Class: B
