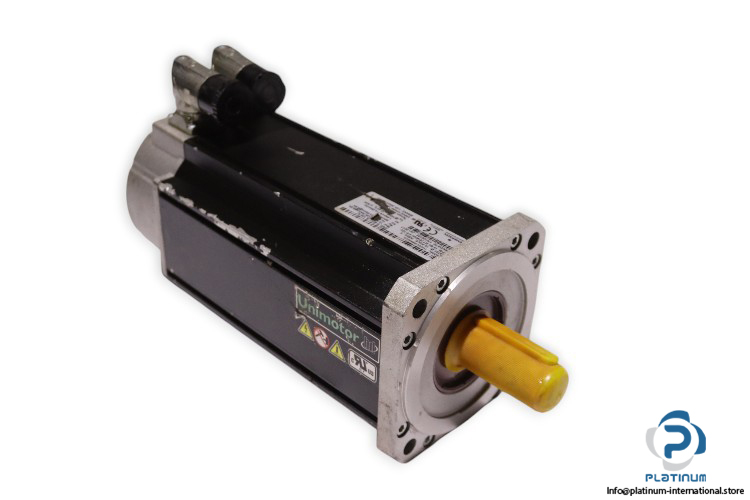

Emerson 115UDC305BAECA Servo Motor
Manufacturer: EMERSON
Type: Servo Motor
Model: 115UDC305BAECA
Rated Voltage: 380/480 V
Rated Power: 3.3 kW
Rated Torque: 10.5 Nm
Stall Torque: 14.6 Nm
Rated Current: 6.6 A
Stall Current: 9.2 A
Ke: 98 V/Krpm
Kt: 1.6 Nm/A
Protection Class [IP]: 65
Temperature: 0-40 °C
Poles: 10
Insulation Class: F
