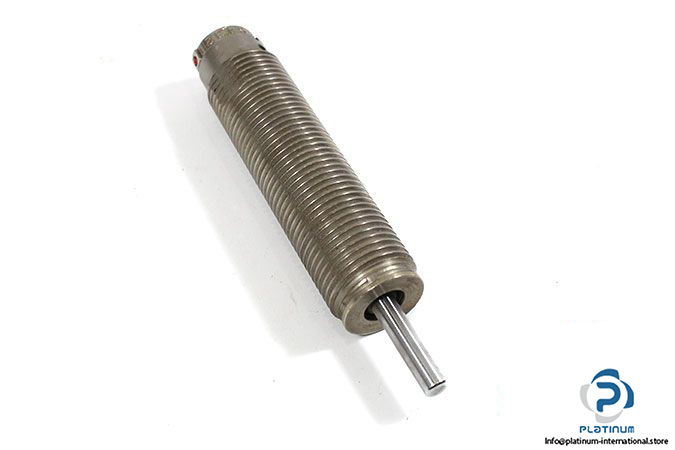

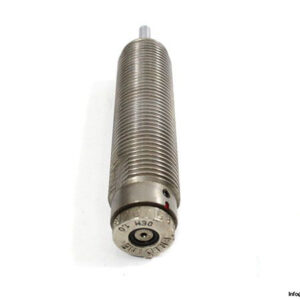

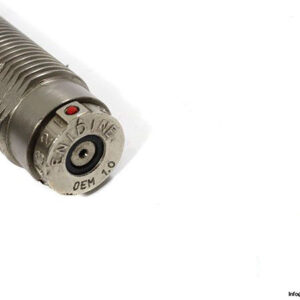

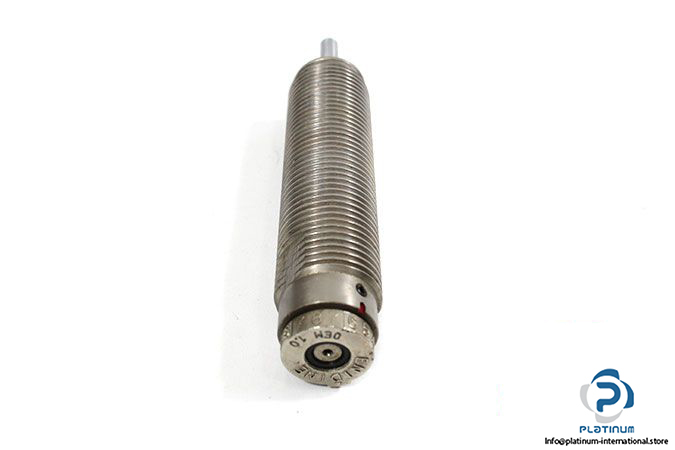

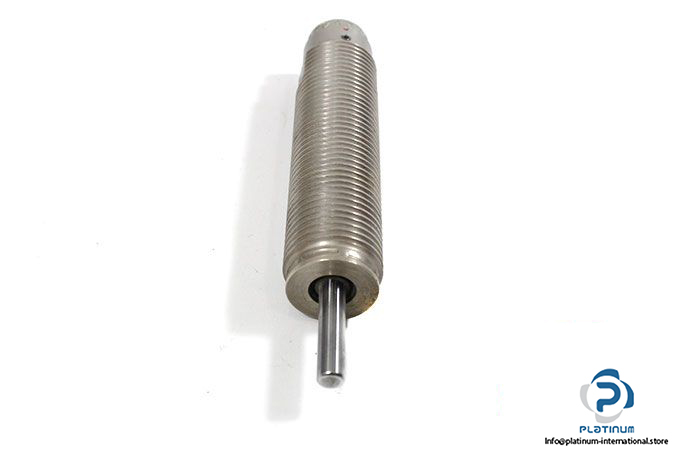

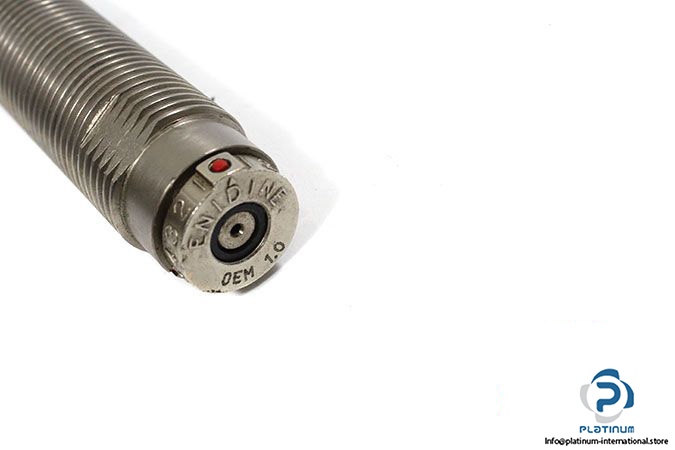

Enidine OEM 1.0 Shock Absorber

Manufacturer: ENIDINE

Type: ADJUSTABLE HYDRAULIC SHOCK ABSORBER

Series: OEM

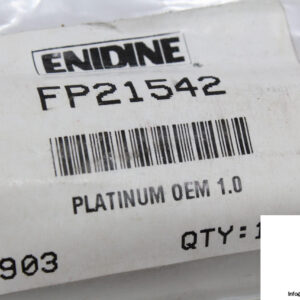

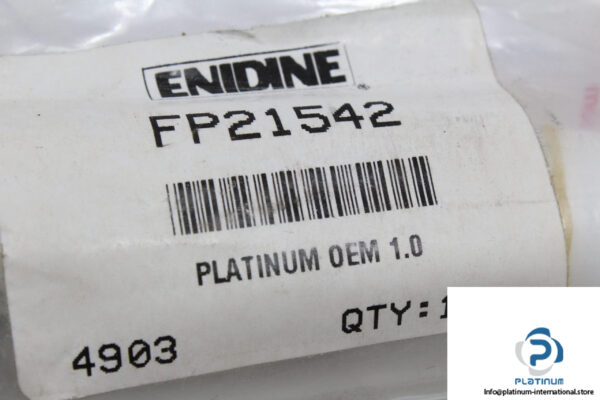

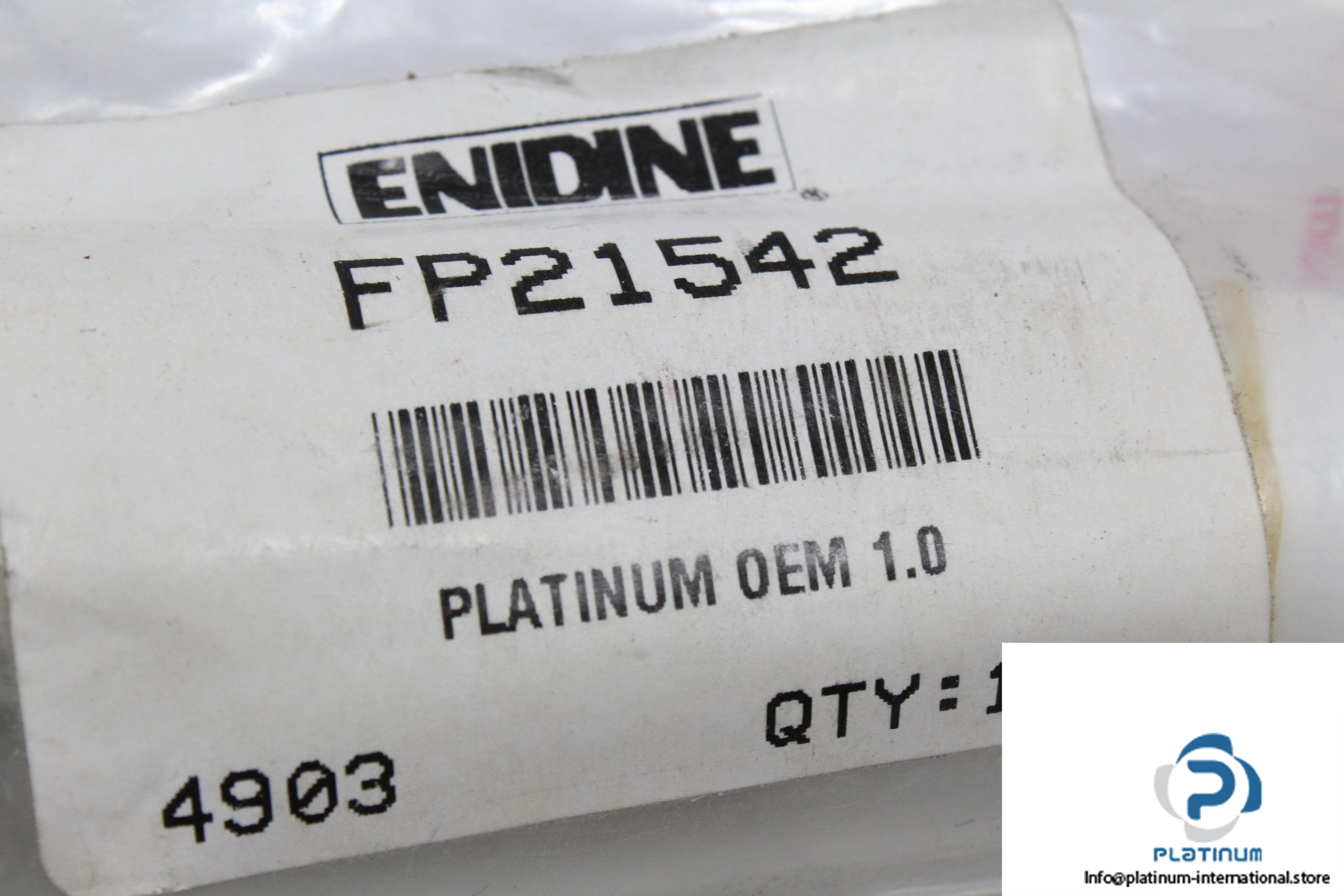

Model: OEM 1.0

Application:

• Printing Presses
• Turnstiles
• Tension / Compression Applications

Features:

• A select variety of surface finishes maintains original quality appearance and provides the longest corrosion resistance protection.
• Incorporating optional fluids can expand the standard operational temperature range
• Threaded cylinders provide mounting flexibility and increased surface area for improved heat dissipation.
•  Internal orifice design provides deceleration with the most efficient damping characteristics, resulting in the lowest reaction forces in the industry.

Damping Type: C

Optimal Velocity Range: 12 – 130 m/s

Nominal Extended Coil Spring Force: 3 N

Nominal Compressed Coil Spring Force: 6 N

Max. ETC: 681,000 Nm/h

Max. Propelling Force: 300 N

Stroke Length: 25 mm

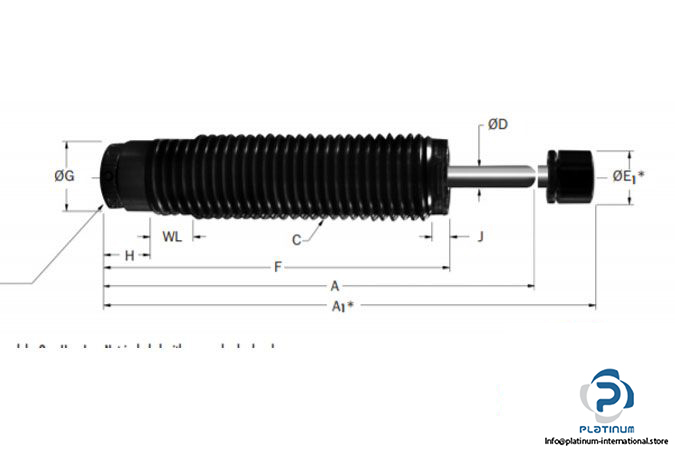

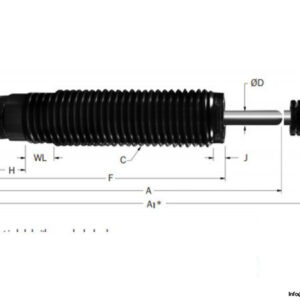

Rod Diameter ( D ): 6.4 mm

Length ( F ): 103.4 mm

Total length: 129 mm

Temperature Range: -10 ….. 80 ^°C

Weight: 0.24 kg
