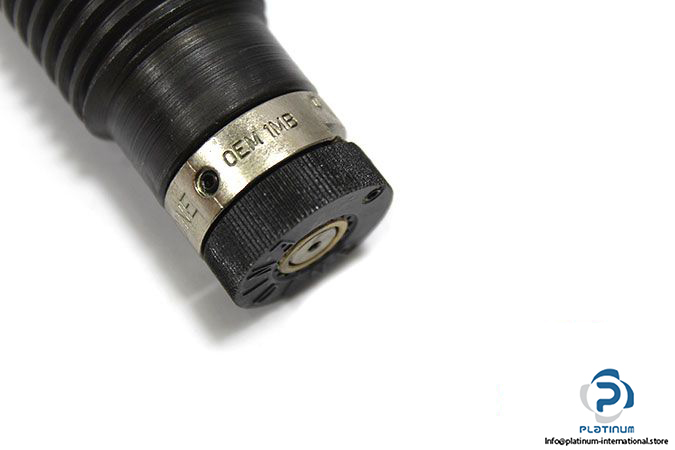

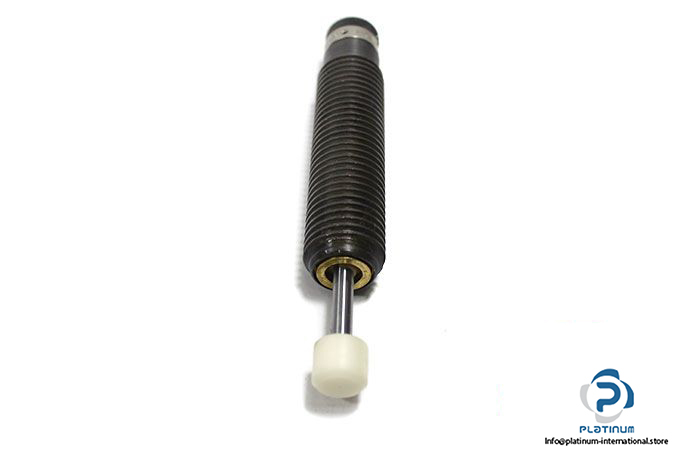

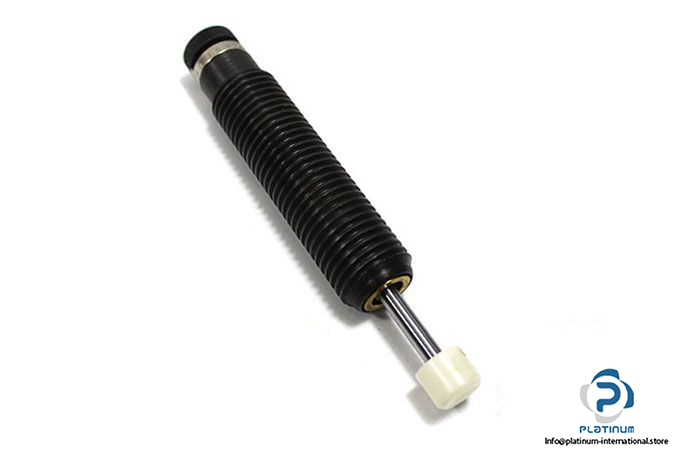

Enidine OEM 1MB Shock Absorber

Manufacturer: ENIDINE

Type: ADJUSTABLE HYDRAULIC SHOCK ABSORBER

Series: OEM

Model: OEM 1MB

Application:

• Printing Presses
• Turnstiles
• Tension / Compression Applications

Features:

• A select variety of surface finishes maintains original quality appearance and provides the longest corrosion resistance protection.
• Incorporating optional fluids can expand the standard operational temperature range
• Threaded cylinders provide mounting flexibility and increased surface area for improved heat dissipation.
•  Internal orifice design provides deceleration with the most efficient damping characteristics, resulting in the lowest reaction forces in the industry.

Optimal Velocity Range: 0,3 – 3,30 m/s

Nominal Extended Coil Spring Force: 13 N

Nominal Compressed Coil Spring Force: 26 N

Max. ETC: 77,000 Nm/h

Max. Propelling Force: 1,300 N

Stroke Length: 25 mm

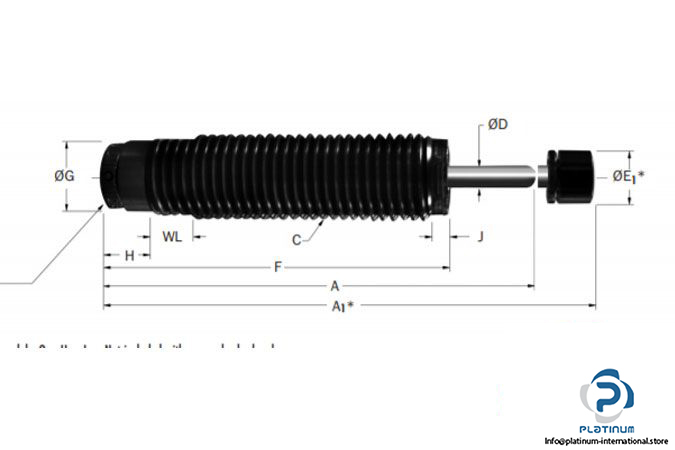

Rod Diameter ( D ): 6.4 mm

Length ( F ): 121 mm

Total length: 160 mm

Diameter and Step for Threaded Surface: M27 x 3,0

Temperature Range: -10 ….. 80 ^°C

Weight: 0.28 kg
