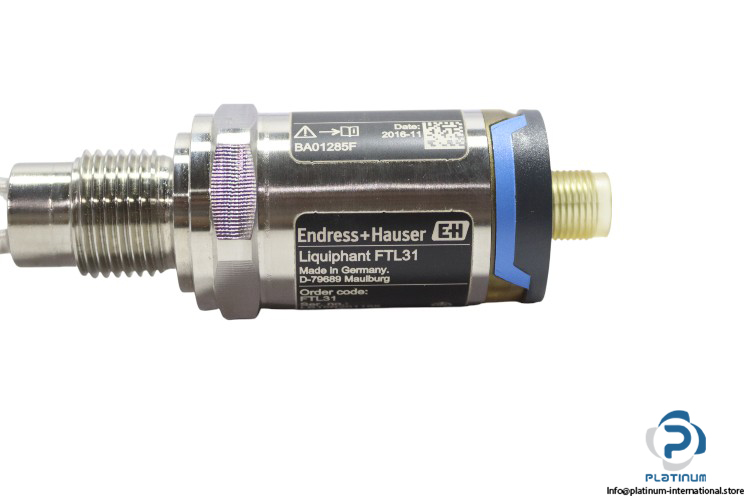

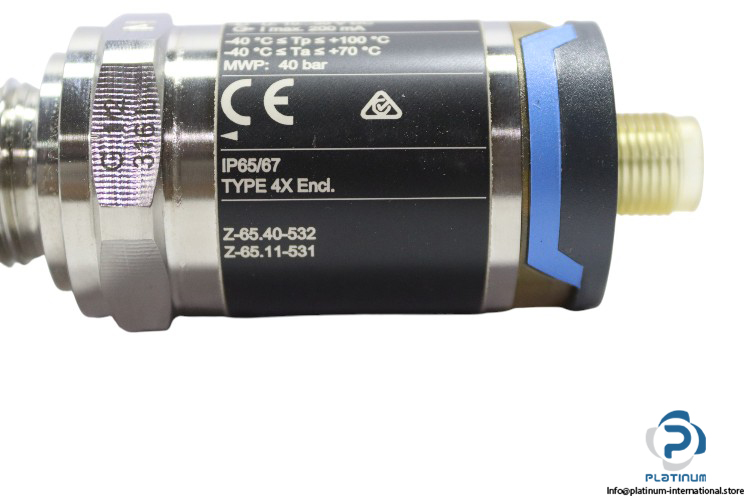

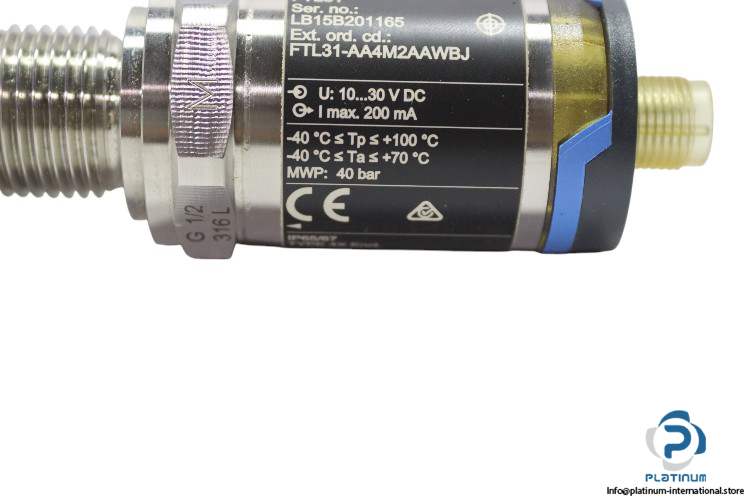

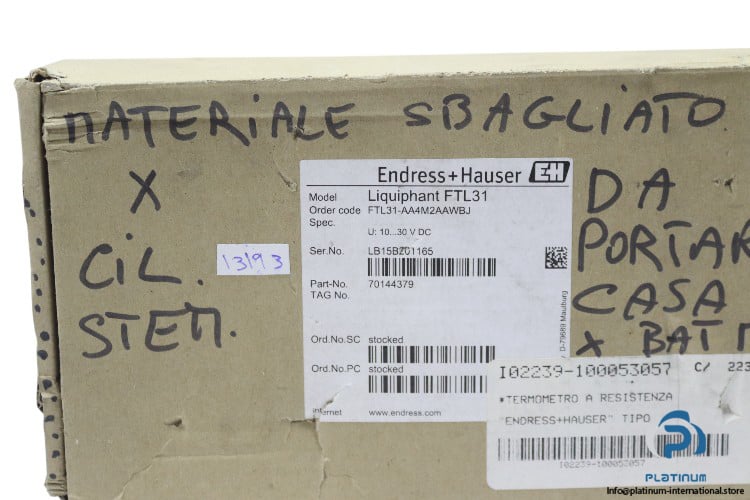

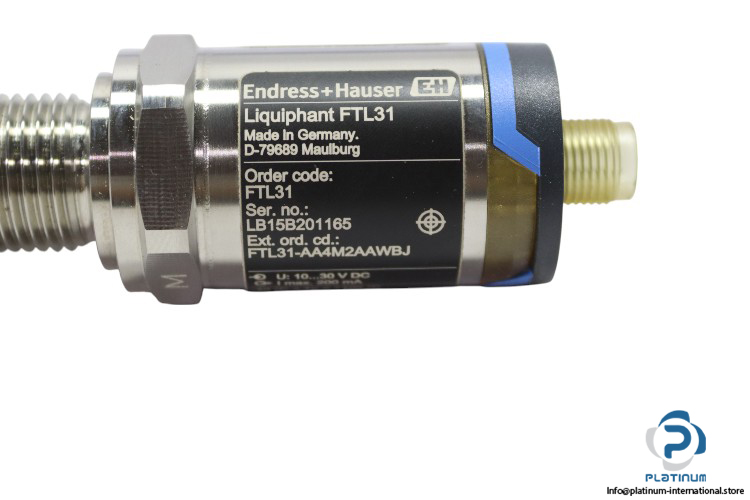

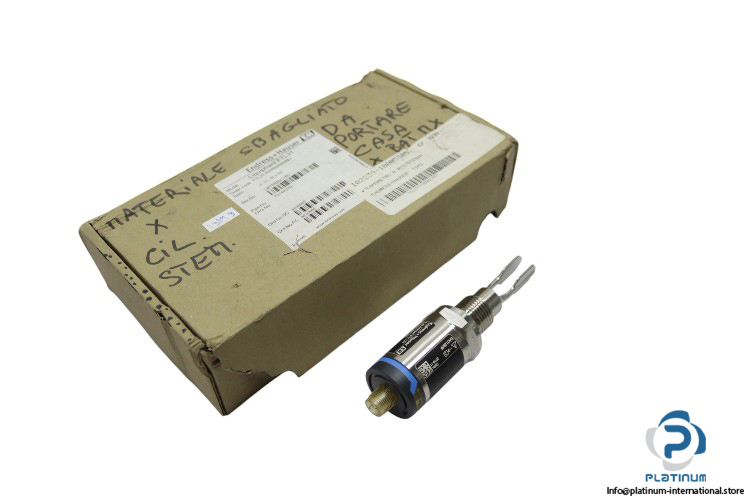

Endress Hauser FTL31-AA4M2AAWBJ Point Level Switch

Endress+Hauser FTL31 Point Level Switch

The Endress+Hauser FTL31 Point Level Switch is designed for precise liquid level detection in various industrial applications. With its robust stainless steel housing, IP65/67 enclosure rating, and 10-30VDC power supply, it offers reliable and accurate performance in harsh environments.

Manufacturer: Endress+Hauser EH

Type: Point Level Switch

Series: FTL31

Order Code: FTL31-AA4M2AAWBJ

Part No.: 70144379

COMAS PART NO: I02239-100053057 C/ 2239

Ref No.: Z-65.40-532 / Z-65.11-531 / I02239-100053057

Technical Data:

• Uses: For Liquid Fluids
• Electrical Connection: M; Plug M12, IP65/67, NEMA Type 4X Enclosure
• Power Supply: 10-30VDC; 3-wire PNP
• Current Rating: 200 mA
• Fluid: Water
• Switch Point (13 mm ±1 mm): ±1 mm
• Hysteresis Max: 3 mm (0.12 in)
• Non-repeatability: ±1 mm
• Process Pressure Absolute / Max Overpressure Limit: Vacuum 40 bar
• Density of Medium: Min. 0.7 g/cm³
• Housing Material: Stainless Steel
