Endress+Hauser 53P3H-EG0BPDA0A3AT Flow Meter
Electromagnetic Flowmeter
High-accuracy flowmeter by Endress+Hauser, model PROMAG P 53P3H-EG0BPDA0A3AT. Measures volume flow with ±0.2% precision, PTFE liner, 316L electrodes, and IP67 protection. Suitable for chemical, energy, and water applications.Endress+Hauser PROMAG P Electromagnetic Flowmeter

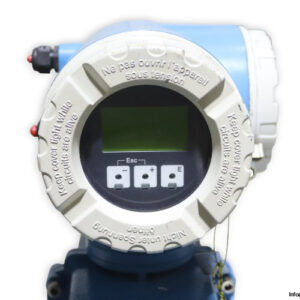

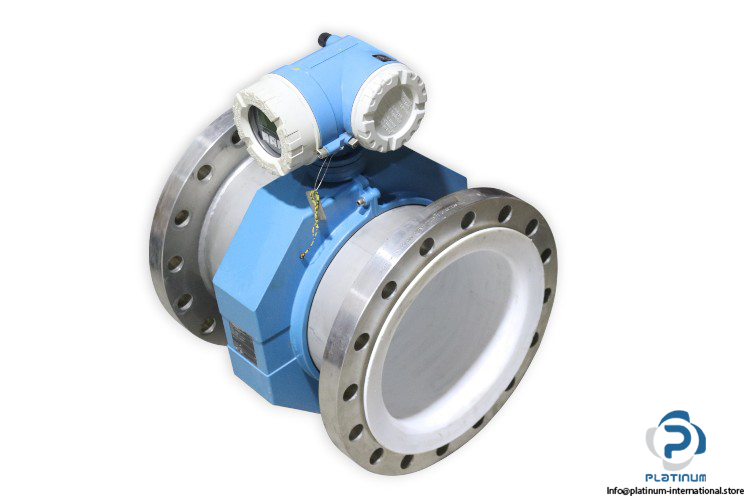

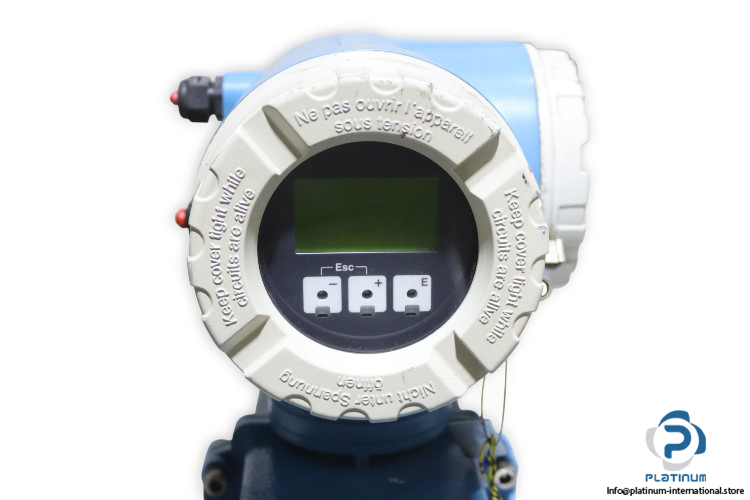

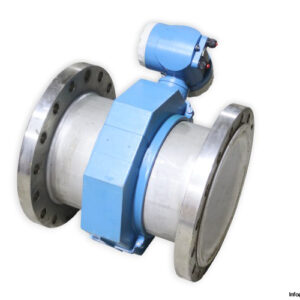

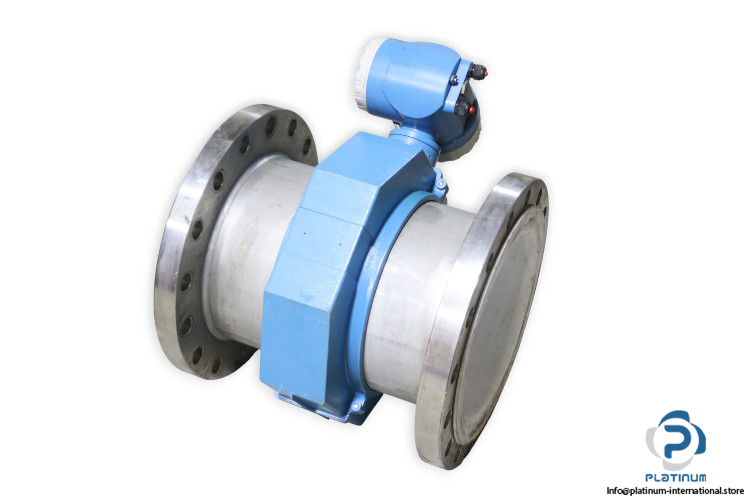

The Endress+Hauser PROMAG P 53P3H-EG0BPDA0A3AT is a high-precision electromagnetic flowmeter engineered for accurate and reliable volume flow measurement in industrial process applications. Designed with robust construction and advanced technology, it delivers exceptional stability and performance even under demanding operating conditions. Its stainless-steel electrodes, PTFE liner, and IP67 protection ensure long-term durability and chemical resistance, making it ideal for industries such as water treatment, chemical processing, and energy systems.

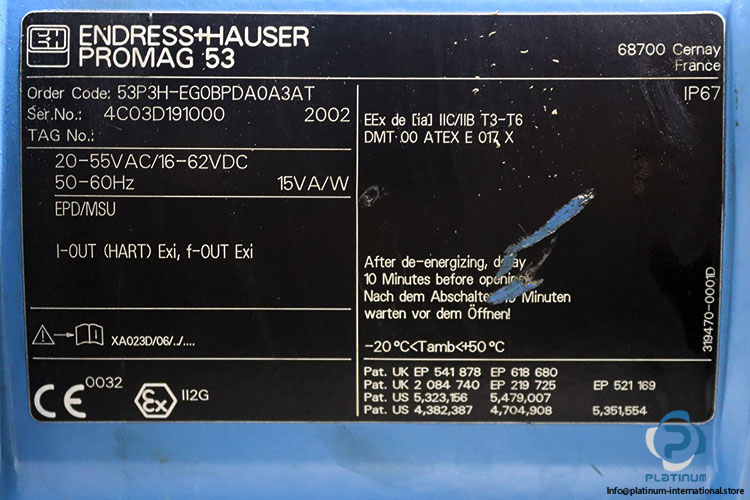

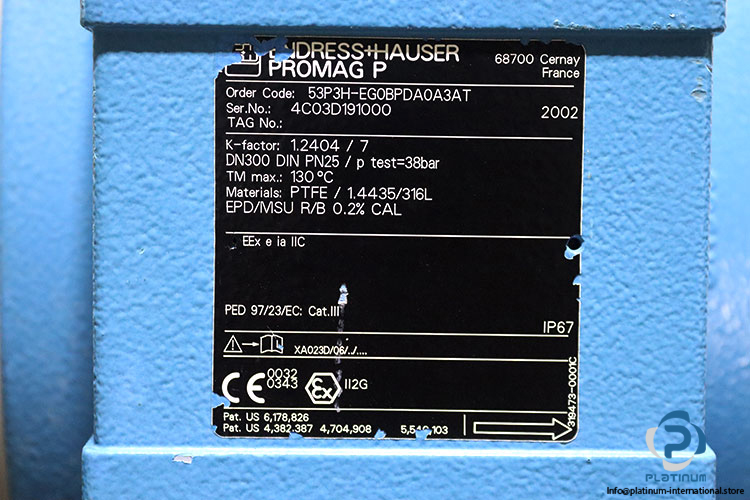

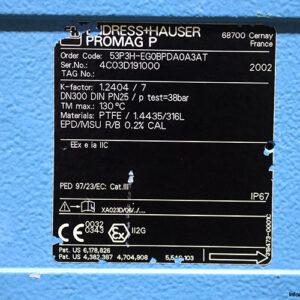

Manufacturer: Endress+Hauser
Type: Electromagnetic Flowmeter
Model: 53P3H-EG0BPDA0A3AT
Serial Number: 4C03D191000
Series: PROMAG P
K.factor: 1.2404/7
This PROMAG P flowmeter provides superior measurement accuracy of up to ±0.2%, ensuring process reliability and energy efficiency. Its explosion-proof design makes it suitable for hazardous environments, and the versatile communication through HART protocol allows easy integration into modern control systems. Ideal for precision flow monitoring in industrial pipelines, this unit enhances productivity and reduces maintenance downtime.
| Measured Variables | Volume flow |
| Power Supply | 20 to 55 V AC / 16 to 62 V DC |
| Frequency | 50 to 60 Hz |
| Power Consumption | 15 VA / W |
| Output Signals | I-OUT (HART) Exi, Frequency / Pulse Output (f-OUT) Exi |
| Communication Protocol | HART |
| Nominal Diameter (DN) | DN300 |
| Connection Standard | DIN PN25 |
| Pressure Rating | Tested up to 38 bar |
| Liner Material | PTFE (Polytetrafluoroethylene) |
| Electrode Material | 1.4435 / 316L Stainless Steel |
| Housing Material | Coated Aluminum |
| Sealing Material | EPD/MSU Rubber |
| Maximum Process Temperature (TM max) | 130°C |
| Ambient Temperature Range | -20°C / +50°C |
| Protection Class | IP67 |
| Calibration | 0.2% CAL |
| Explosion Proof Classification | EEx de [ia] IIC / IIB T3“T6, DMT 00 ATEX E 017 X, EEx ia IIC (Intrinsically Safe) |
| Compliance Standards | ATEX Directive, PED 97/23/EC Category III |
| Marking | CE 0032, II 2 G Ex ia IIC |

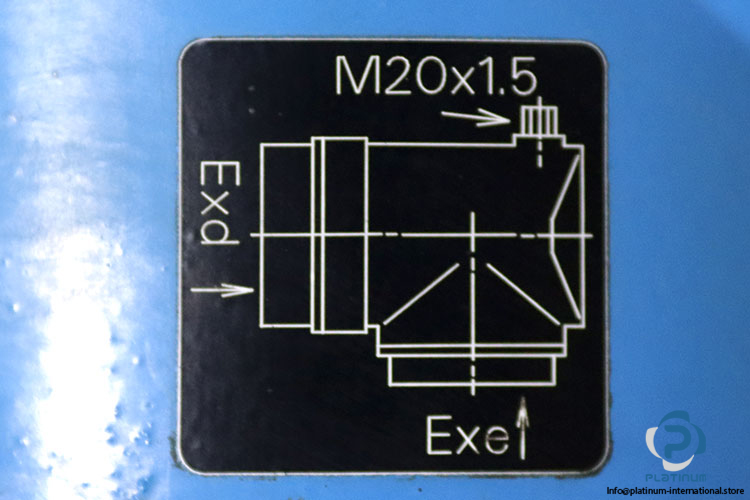

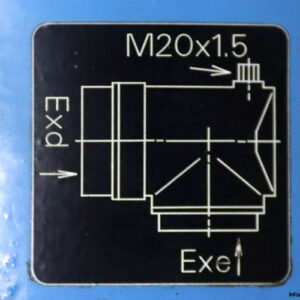

| Cable Entry | M20 x 1.5 (Exd / Exe configuration) |
