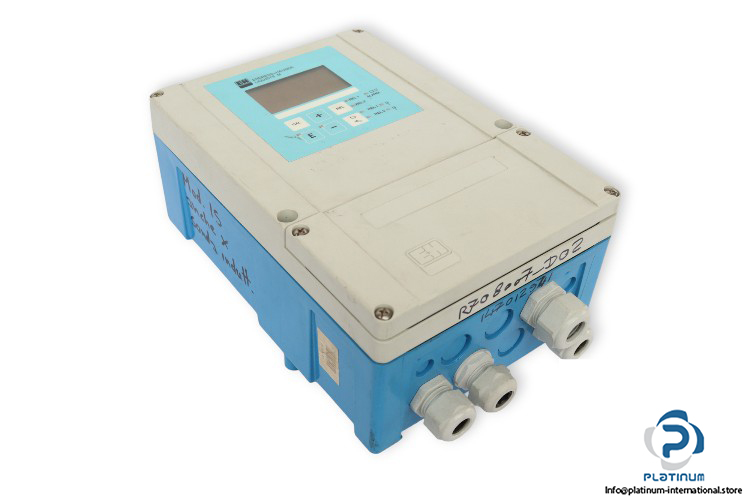

Endress+Hauser CLM253-1S0105 Conductivity Transmitter

Manufacturer: Endress+Hauser
Type: Conductivity transmitter
Model: LIQUISYS-M
Order code: CLM2531S0105

Application: Water, waste water, process
Main Voltage: 230 V AC
Output 1,2 Current range: 0/4 … 20 mA
Frequency: 50/60 Hz
Power: 7.5 VA
Alarm output: relay
Temperature sensor: Display and current output
Input: One-channel transmitter
Connectable temperature Sensors: Pt 100, Pt 1000, NTC 30K
Contact: 4 change overcontact (CO)
Current input: 4 … 20 mA
Galvanically isolated Load: 260 Ω for 20 mA (voltage drop 5.2 V)
Signal resolution: Max. 700 digits/mA
No. of digital input (DI): 2
Temperature range: -35 … 250°C
Measurement range: 0 … 2000mS/cm
Resistance range: 0 … 200 Mohmcm
Ambient temperature: -10 … 55°C
Dimensions: 247 x 170 x 115 mm
