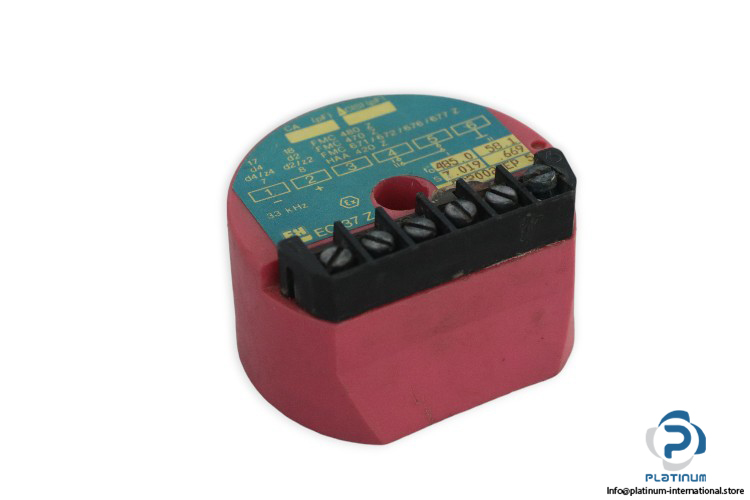

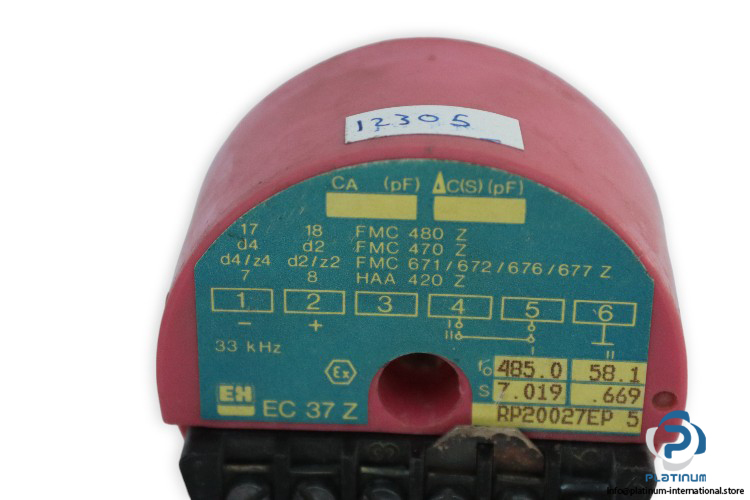

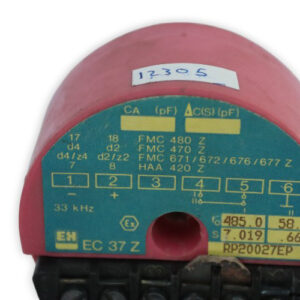

Endress+Hauser EC 37 Z 33 KHZ Electronic Transmitter

Manufacturer: Endress+Hauser

Type: Electronic Transmitter

Model: EC37Z33KHZ

Application: For continuous capacitance level measurement in conjunction with the level measuring instruments Silometer FMX 570, FMC 671 Z, FMC 672 Z, and Prolevel FMC 661, FMC 662.

Features and Benefits:

• Also for use in explosion-hazardous areas
• European and North American approvals
• Applicable over a wide temperature range
• Separate protection housing available

Measuring frequency: Approx. 33 kHz

Measuring voltage: Approx. 5.3 V

Supply voltage: 14.8 V

Supply current max.: 22 mA

Output signal: Pulse-shaped, superimposed on the supply current

Protection type: Electronics IP 55, terminals IP 00

Housing: Plastic, potted electronics

Ambient temperature operating range: -20 / +80 °C
