Endress+Hauser FDU 85-EG2 Ultrasonic Sensor
Used
In stock1 unitReady to ship
Ultrasonic Sensor
Endress+Hauser FDU 85-EG2 ultrasonic sensor designed for non-contact solids level measurement with up to 45 m measuring range, IP68 protection, and polypropylene housing.458585-EG2ContactEndress+HauserFDUIndustrialIP68LevelMMeasurementNonPolypropyleneSensorSolidsUltrasonic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

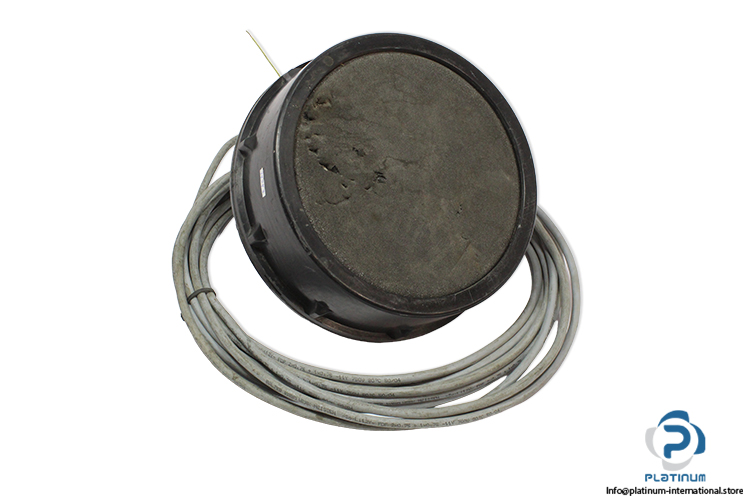

Endress+Hauser FDU85-EG2 Ultrasonic Sensor
The Endress+Hauser FDU85EG2 is an industrial ultrasonic sensor designed for non-contact level measurement of solids in demanding environments. It provides reliable distance measurement and stable performance for industrial monitoring and automation systems.
Manufacturer: Endress+Hauser
Type: Ultrasonic Sensor
Model: FDU 85-EG2
Series: FDU 85
| Solids Measuring Range | 147 ft (45 m) |
| Blocking Distance | 29 (0.8 m) |
| Operating Pressure Max. | 22 psia (1.5 bar) |
| Operating Frequency | 17 kHz At 72°F (23°C) |
| Beam Angle | 5° |
| Housing Material | Polypropylene |
| Sensor Length | 154.9 mm |
| Sensor Diameter | 244.09 mm |
| Mounting | 1 NPT Or G1A |

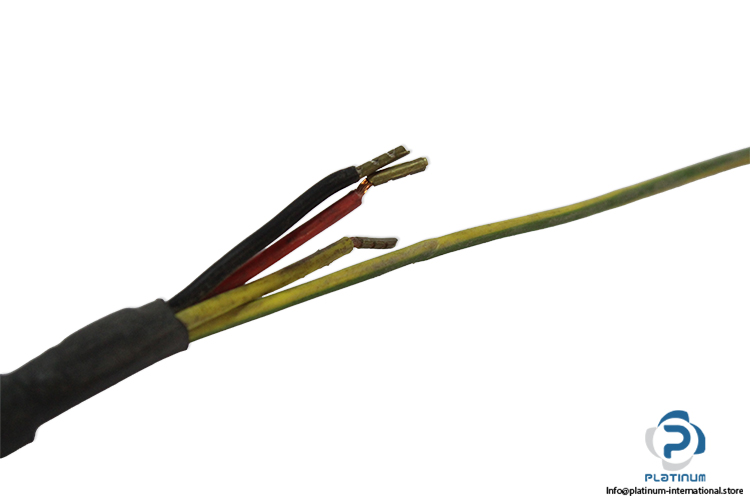

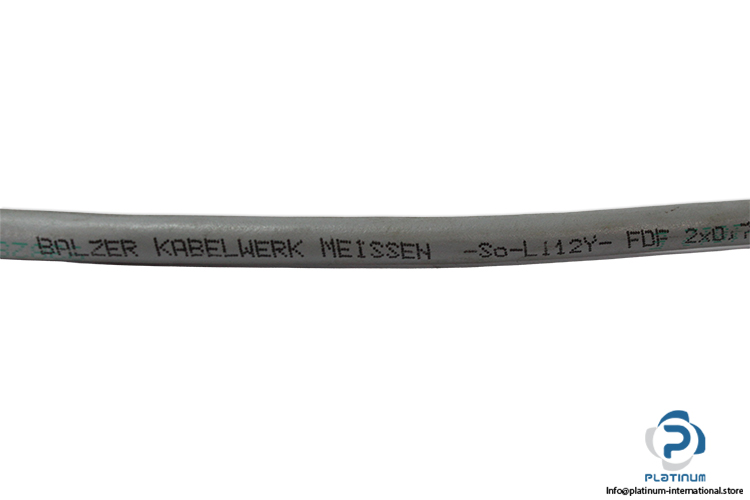

| Connection | 16.4 ft (5 m) Cable 3-Wire With Shield |
| Protection Class | IP68 |
| Operating Temperature | -20 / 80 °C |
