Endress+Hauser FDU 85-EG6 Ultrasonic Sensor
Used
In stock1 unitReady to ship
Ultrasonic Sensor
Endress+Hauser FDU 85-EG6 ultrasonic sensor designed for non-contact solids level measurement up to 147 ft (45 m), with polypropylene housing and IP68 protection.1785-EG6ContactEndress+HauserFDUFDU85EG6FTC51HousIndustrialIP68kHzLevelMeasurementNonPolypropyleneSensorSeriesSolidsUltrasonic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

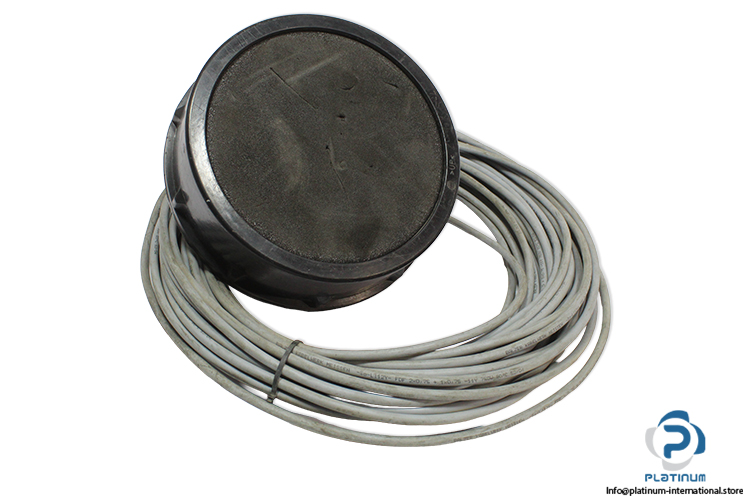

Endress+Hauser FDU85-EG6 Ultrasonic Sensor
The Endress+Hauser FDU85EG6 is an ultrasonic sensor designed for non-contact level measurement in solids applications. It provides reliable distance measurement using ultrasonic technology and is suitable for industrial environments requiring high protection and stable operation.
Manufacturer: Endress+Hauser
Type: Ultrasonic Sensor
Model: FDU 85-EG6
Series: FTC51
| Solids Measuring Range | 147 ft (45 m) |
| Blocking Distance | 29 (0.8 m) |
| Operating Pressure Max. | 22 psia (1.5 bar) |
| Operating Frequency | 17 kHz At 72°F (23°C) |
| Beam Angle | 5° |
| Housing Material | Polypropylene |
| Sensor Length | 154.9 mm |
| Sensor Diameter | 244.09 mm |
| Mounting | 1 NPT Or G1A |

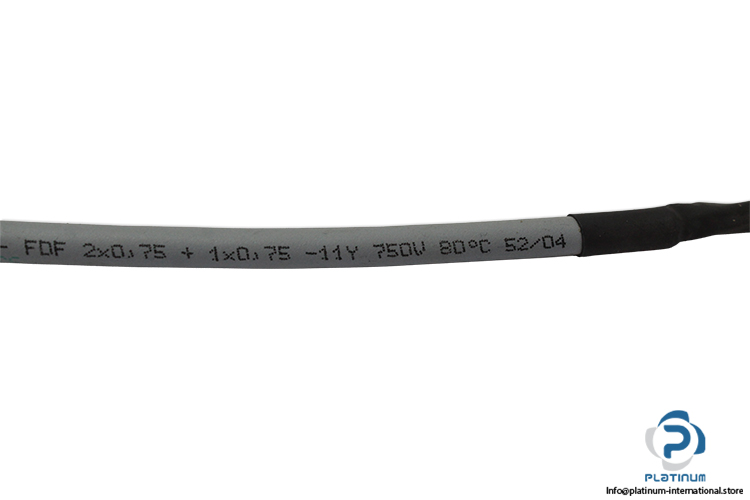

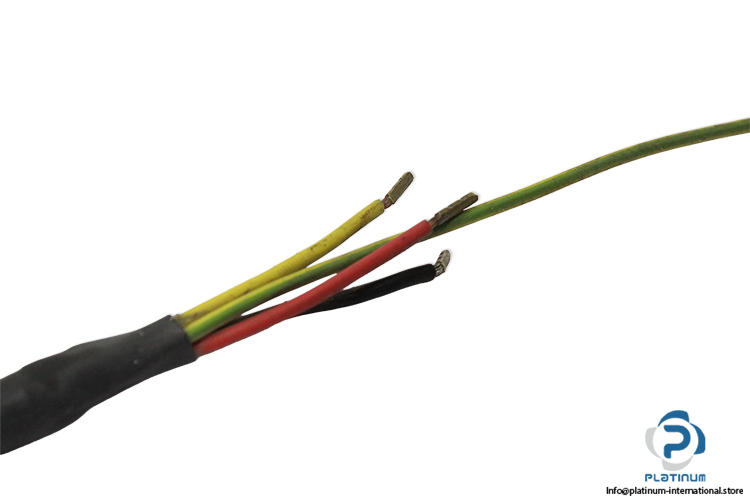

| Connection | 16.4 ft (5 m) Cable 3-Wire With Shield |
| Protection Class | IP68 |
| Operating Temperature | -40 / 80 °C |
