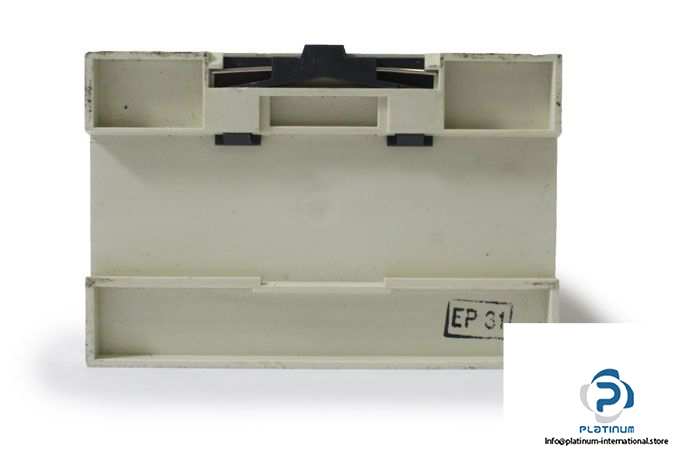

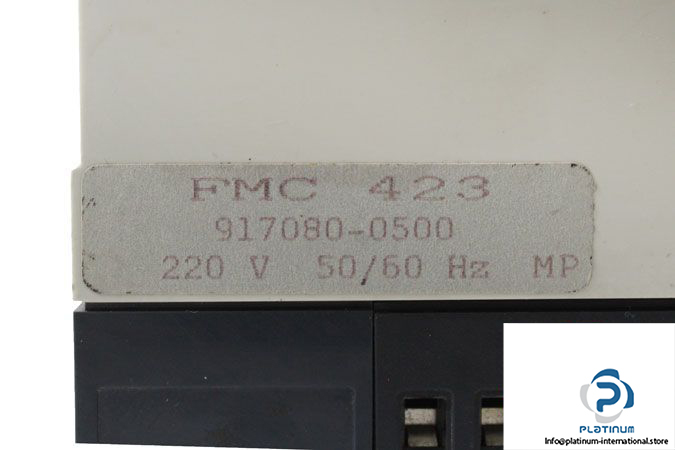

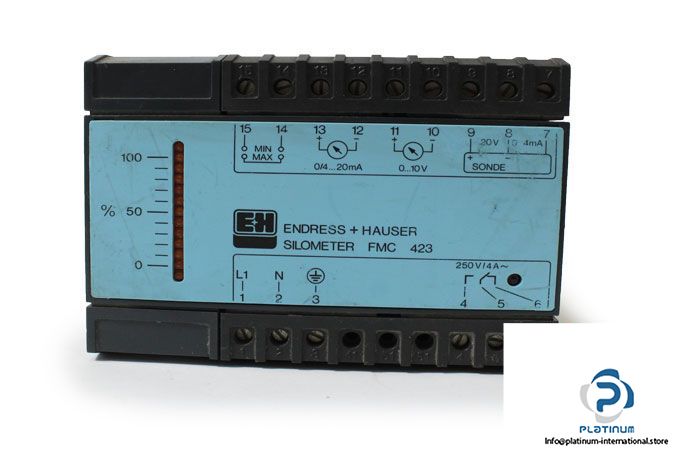

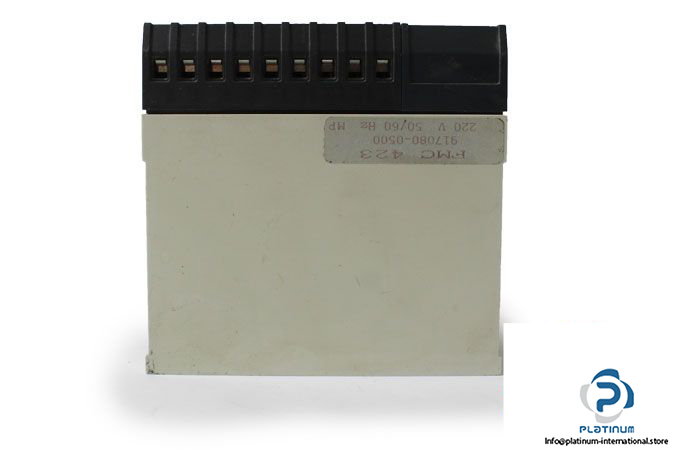

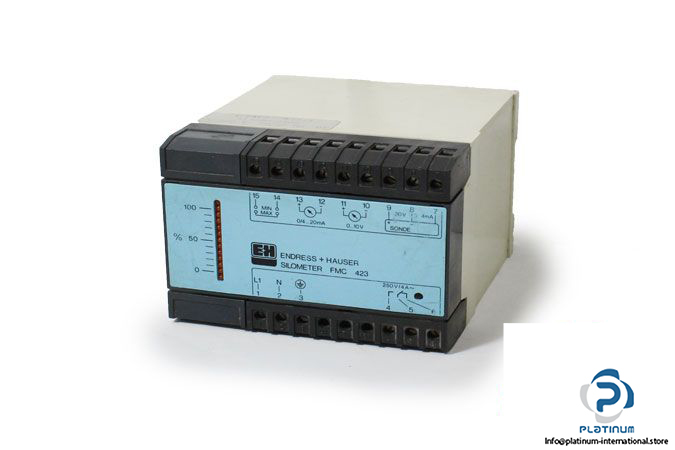

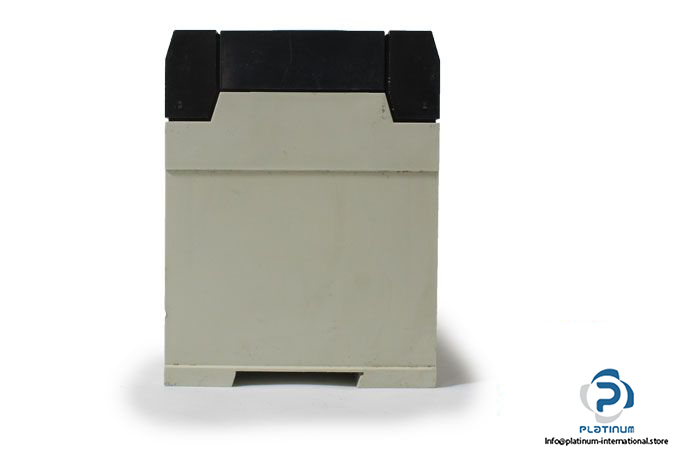

Endress+Hauser FMC 423 Level Measurement Silometer

Manufacturer: ENDRESS+HAUSER

Type: LEVEL MEASUREMENT SILOMETER

Model: FMC 423

Application: for continuous level measurement and limit detection in liquid tanks

Voltage: 220 VAC

Frequency: 50/60 Hz

Switching Capacity: max. 4 A, max. 250 V, max. 500 VA, cos ϕ > 0.7

Power Consumption: 6.4 VA

Housing: Row housing (Minipac design) in light grey plastic, front panel blue

Mounting: on DIN top hat rail according to EN 50022-35 x 7.5 or EN 50022-35 x 15

Ambient Temperature: –20..+60 °C

Dimensions: 100 X 110.3 X 75 mm

Weight: 0.5 Kg
