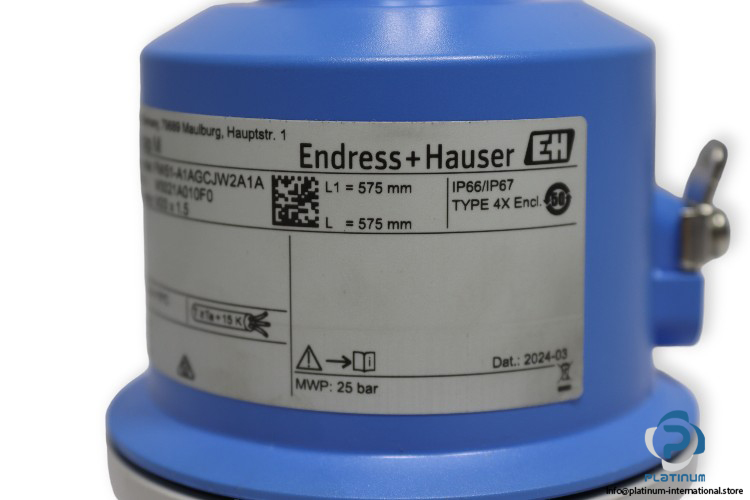

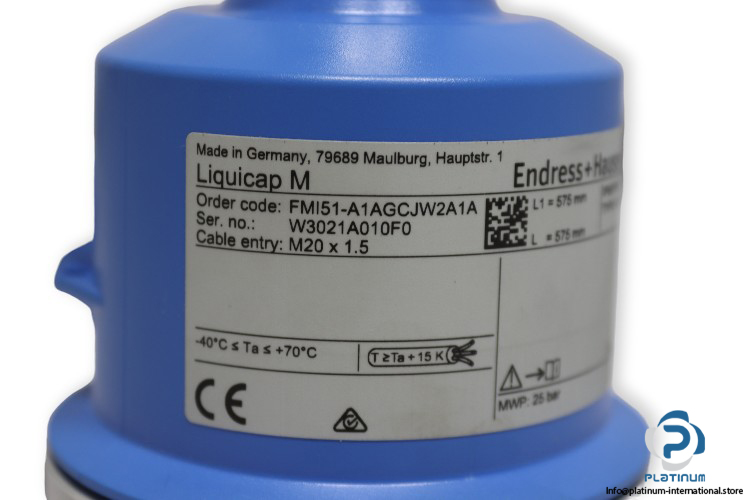

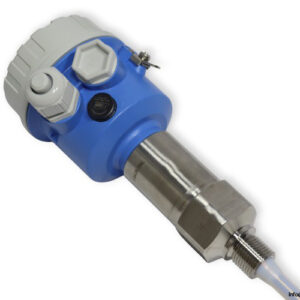

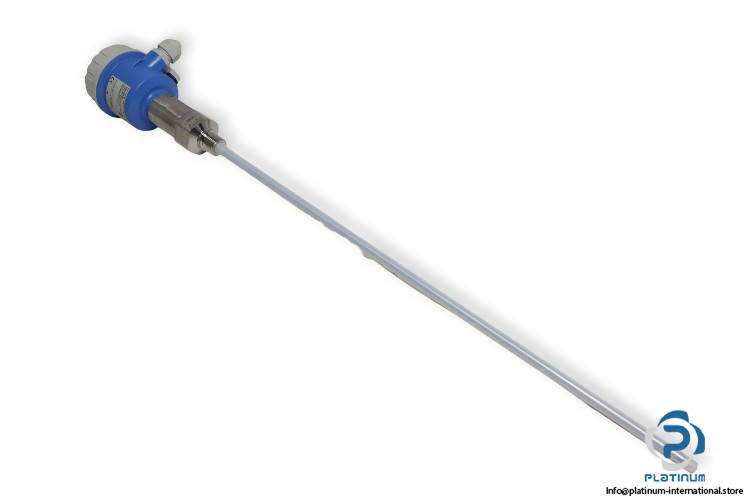

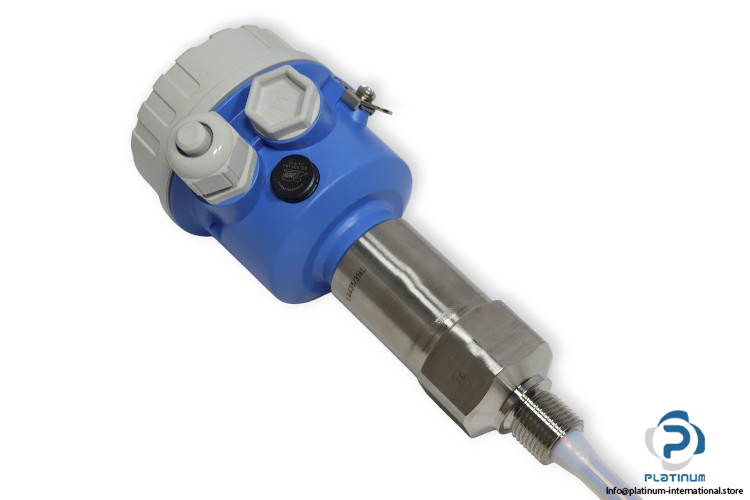

Endress+Hauser FMI51-A1AGCJW2A1A Capacitance Level Measurement

Manufacturer: Endress+Hauser
Type: Capacitance Level measurement

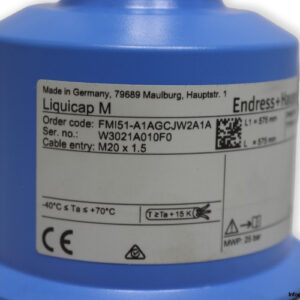

Model: FMI51A1AGCJW2A1A
Family: Liquicap M

Used: For continuous level and interface measurement in liquids
Application: The device is independent of the dielectric constant (DC) as of a liquid conductivity of 100 µS/cm and allows measurement of various liquids without the need for recalibration.
Specification:
Inactive length
Factory calibrated
short response time by change of value
Supply voltage: 12 … 36 V DC
Ambient temperature: -40 … 70°C
Accuracy: Repeatability 0,1%
Process pressure max.: 25 bar

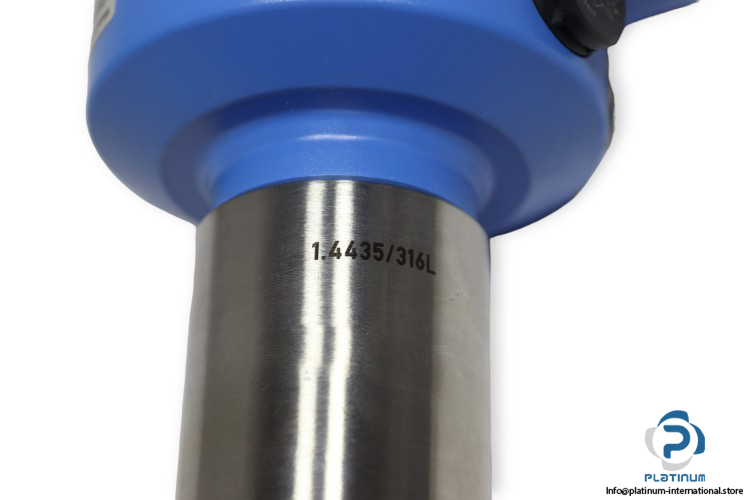

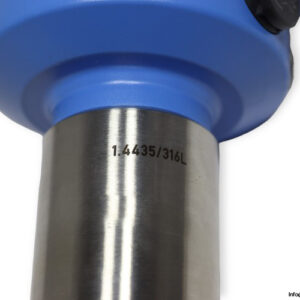

Main wetted parts Insulation material: PTFE,PFA 316L

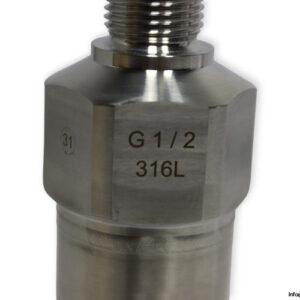

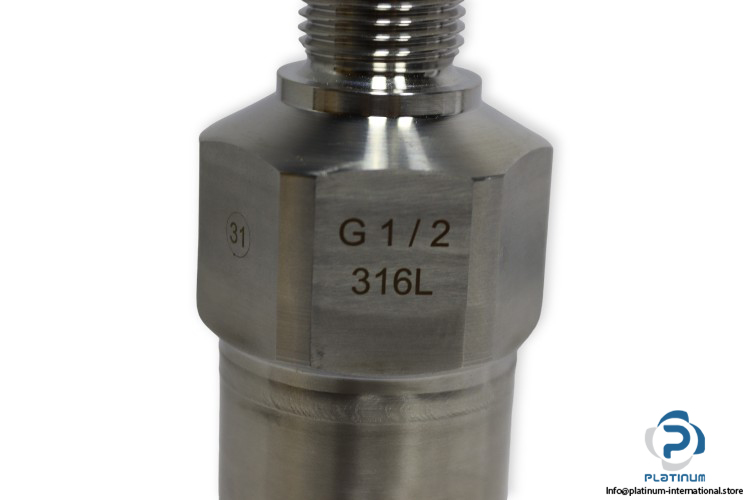

Process connection: G1/2, G 3/4, G 1, G1 1/2 /NPT 1/2, NPT 3/4, NPT 1″, NPT1 ½ Flanges from DN25…/ASME 1″…/JIS…
Process connection hygienic: Tri-Clamp ISO02852 gap free plated, Dairy coupling, Flush-mounted seal
Sensor length: Total length: 6m (20ft), Inactive length: max. 2m (7ft)
Max. measurement distance: 0.57 m (0.1 … 4.0 m)
Communication: 4 … 20 mA HART PFM

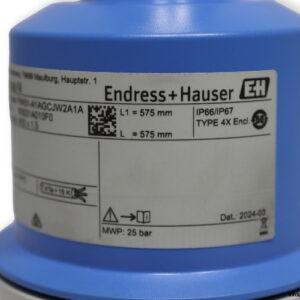

Protection degree: IP66/IP67
Cable entry: M20 x 1.5
