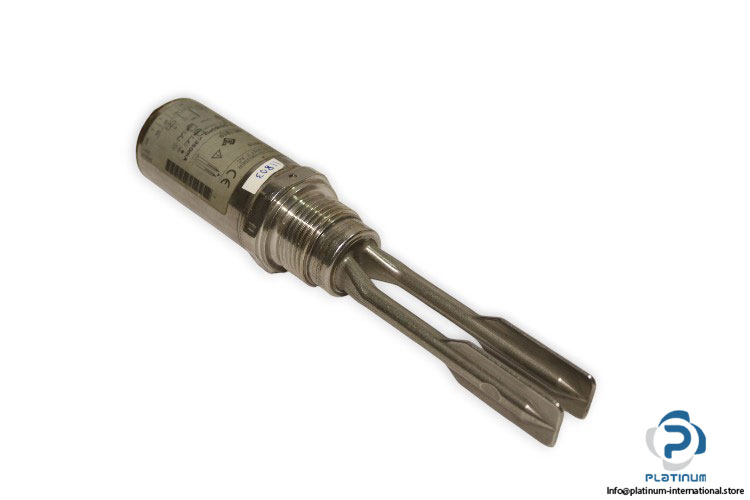

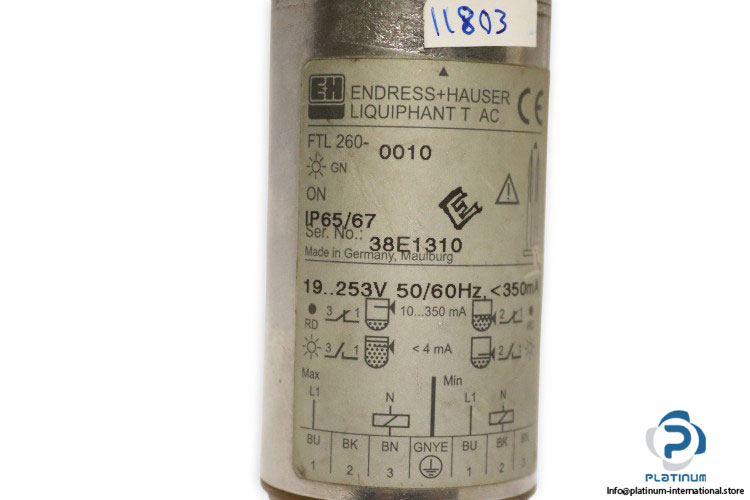

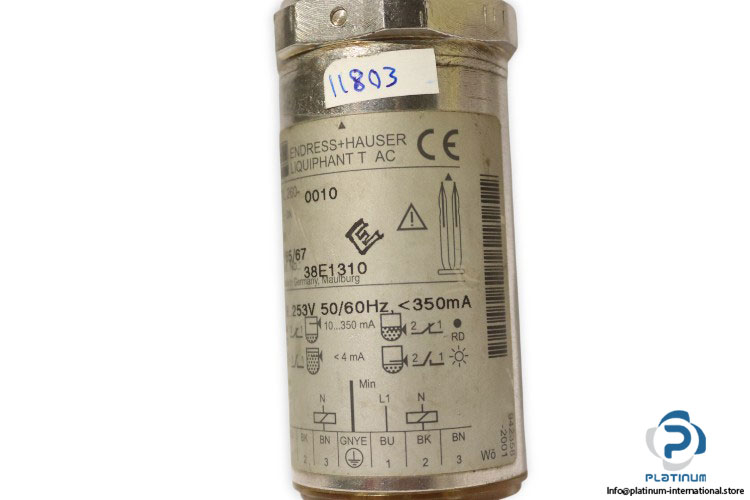

LIQUIPHANT T AC FTL260-0010 Point Level Switch
The Endress+Hauser LIQUIPHANT T AC FTL260-0010 is a vibronic point level switch for liquid level detection in storage tanks, tanks with agitators, and piping. It offers robust performance, high reliability and is designed to handle demanding process environments.
Manufacturer: ENDRESS+HAUSER
Type: Point Level Switch (Vibration Limit Switch)
Model: LIQUIPHANT T AC FTL260-0010
Part No.: 942202-0010
| Rated Voltage | 19 / 253 V AC |
| Rated Current Consumption (Max.) | 350 mA |
| Frequency | 50 / 60 Hz |
| Process Pressure | Up to 40 bar |
| Process Temperature | -40 / 150 °C |
| Ambient Temperature | -40 / 70 °C |
| Material (Wetted Parts) | Stainless Steel (316Ti) |
| Protection Class | IP65 / IP67 |
| Sensor / Fork Length | Approx. 128-130 mm |
| Minimum Medium Density | ~0.7 g/cm³ |
| Process Connections | G1A, 1³ NPT, R1 etc. |
| Switching Output Variants | AC / 2-wire; DC-PNP / 3-wire |
| Certifications / Approvals | WHG / Overfill prevention, Marine GL, CSA etc. |
