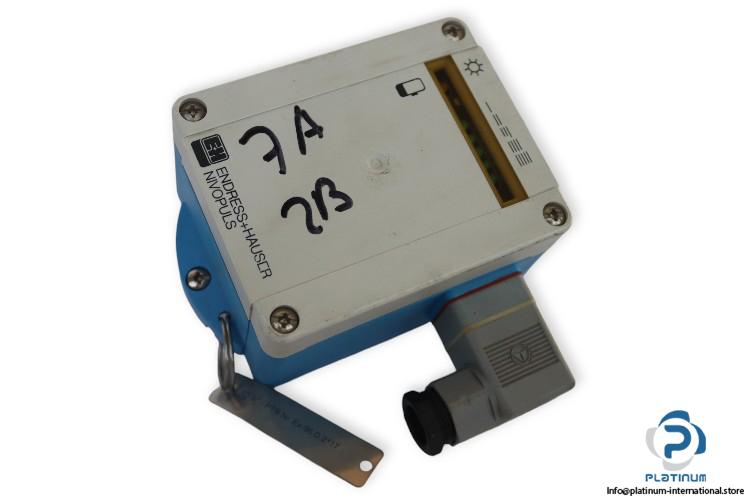

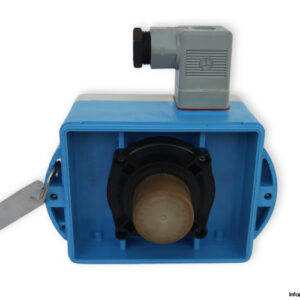

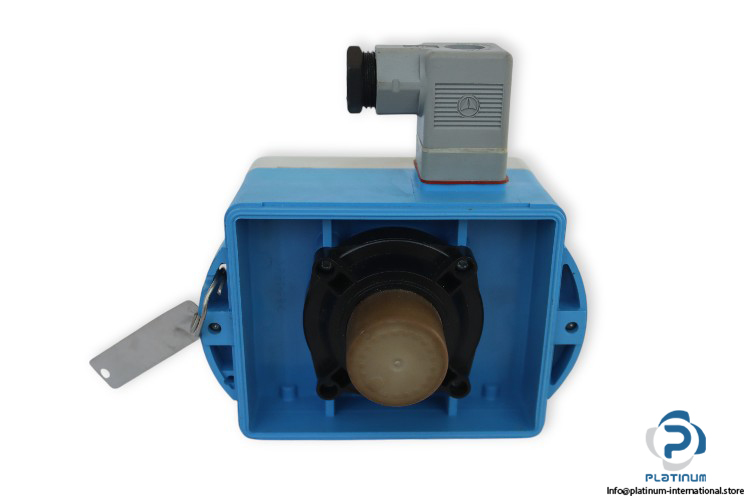

Endress+Hauser Nivopuls FDU 10 C Ultrasonic Level Measurement
Manufacturer: Endress+Hauser
Type: Ultrasonic Level Measurement
Model: NIVOPULS FDU10C

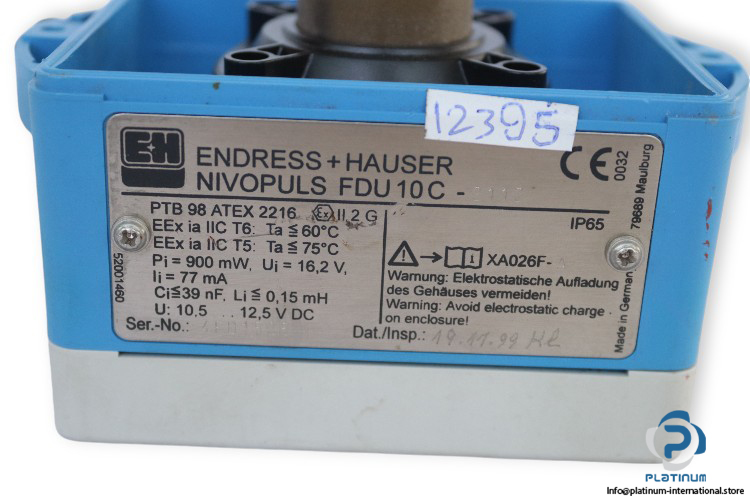

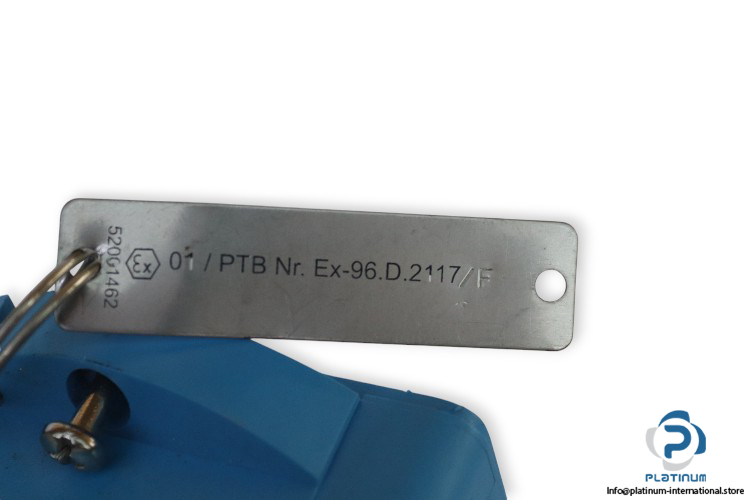

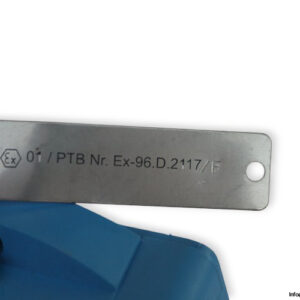

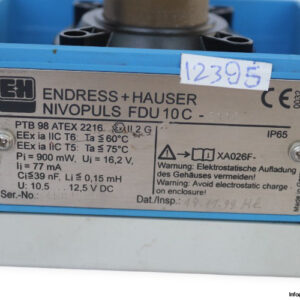

Part No.: PTB 98 ATEX 2216 / Ex-96.D.2117/F
Application: Non-invasive level limit switch for fin liquids, suspensions, or emulsions
Power supply: 10.5 … 12.5 V DC
Insulation voltage Ui: 16.2 V
Current: 77 mA
Power: 900 mW
Capacitance: =< 39 nF
Inductance: =< 0.15 mH
Electrical connection: Two-wire cable with plug connection, max. length 900 m and/or max. resistance 25 „¦ pro Ader
Material: Plastic PBT
Ambient temperature: -20 …+80°C
Ingress protection: IP 65 with housing closed, IP 20 with housing open for calibration
Dimensions: 127 x 124 x 85 mm
| Specification | Value |
|---|---|
| Weight | 0,53 kg |
| Condition | New |
| Manufacturer | ENDRESS+HAUSER |
| Shelf No. | 241020 |
| Type of Product | Ultrasonic Level Measurement |
| Part No. | PTB 98 ATEX 2216 / Ex-96.D.2117/F |
