Endress+Hauser PMC631-R11K 1E 1DAH Pressure Transmitter
Used
In stock1 unitReady to ship
Pressure Transmitter
The Endress+Hauser Cerabar S PMC631 Pressure Transmitter provides precise pressure monitoring with a stainless-steel body, 4“20 mA output, and wide operating range from -1 to +2 bar.4-20mAAtexCerabarCertifiedEndress+HauserIndustrialInternationIP65PlatinumPMC631PressuresSensorstainlessSteelTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

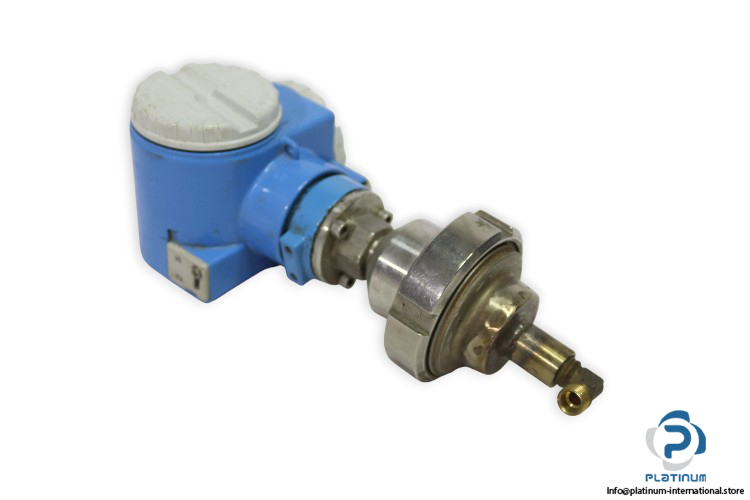

Endress+Hauser Cerabar S Pressure Transmitter
The Endress+Hauser Cerabar S Pressure Transmitter PMC631 is a high-performance device engineered for accurate pressure measurement in industrial and process applications. Designed with stainless steel housing and advanced sensing technology, it ensures reliable monitoring under extreme temperature and pressure conditions.

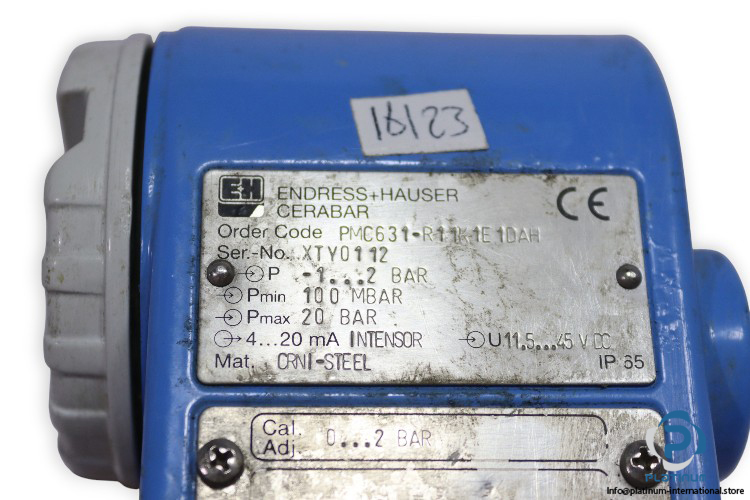

Manufacturer: ENDRESS+HAUSER
Type: Pressure Transmitter
Series: Cerabar S
Order Code: PMC631-R1 1K 1E 1DAH
Serial No.: XTY0112
| Pressure Range | -1 / +2 bar |
| Pmin | 100 mbar |
| Pmax | 20 bar |

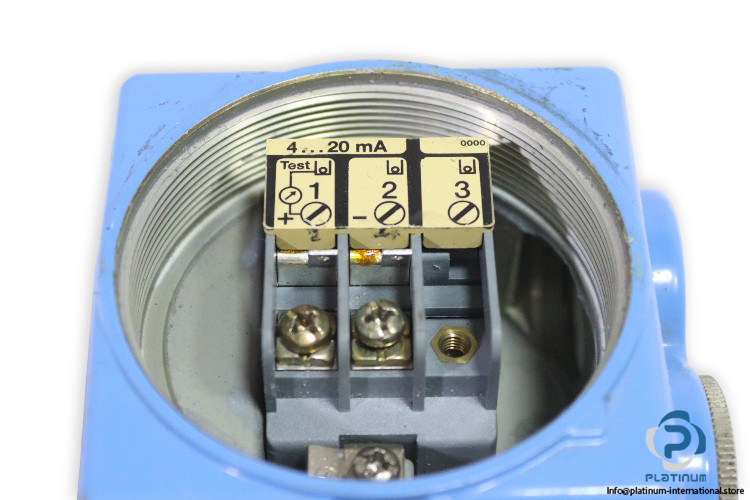

| Output Signal | 4 / 20 mA (INTENSOR) |
| Power Supply | 11.5 / 45 V DC |
| Material | CrNi-Steel (Stainless Steel) |
| Ingress Protection | IP 65 |
| Calibration Adjust | 0 / 2 bar |
| Connection | ½ in |
| Process Temperature | -40°C...350°C |
| Ambient Temperature | -40°C...85°C |
| Certifications | ATEX, FM, CSA, SIL, EN10204-3.1 |
