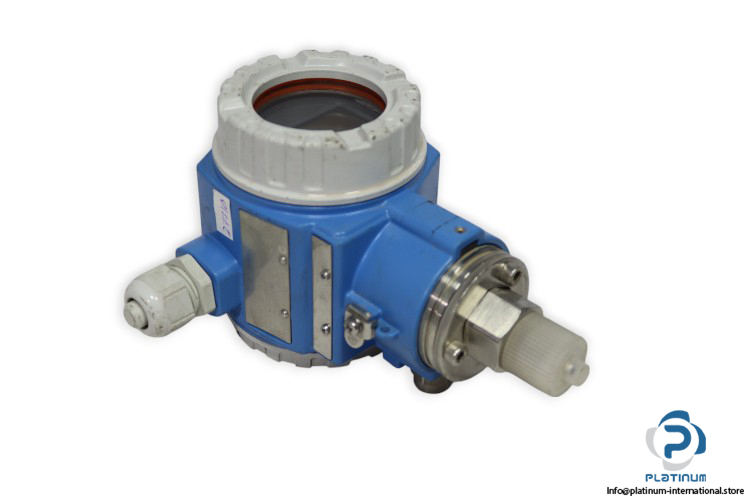

Endress+Hauser PMC71-AC26/0 Absolute AND Gauge Pressure Cerabar
New
In stock1 unitReady to ship
PRESSURE TRANSMITTER
High-performance pressure transmitter for absolute and gauge measurement. Supports HART and fieldbus protocols, rated IP66/IP67, and built for harsh industrial and hygienic applications.040AbsolutebarCellCerabarceramicEndress+HauserFieldbusFoundationGaugeHartIndustrialIP67PMC71PressureProcessRatedsSensortotransmiTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
ENDRESS+HAUSER PMC71 CERABAR S PRESSURE TRANSMITTER
Advanced pressure transmitter from the Cerabar S series, designed for high-accuracy measurement of absolute and gauge pressure. Suitable for hygienic, marine, and hazardous environments, this sensor supports HART, PROFIBUS, and FOUNDATION Fieldbus communication protocols.
Manufacturer: Endress+Hauser
Type: Absolute and Gauge Pressure Transmitter
Series: Cerabar S

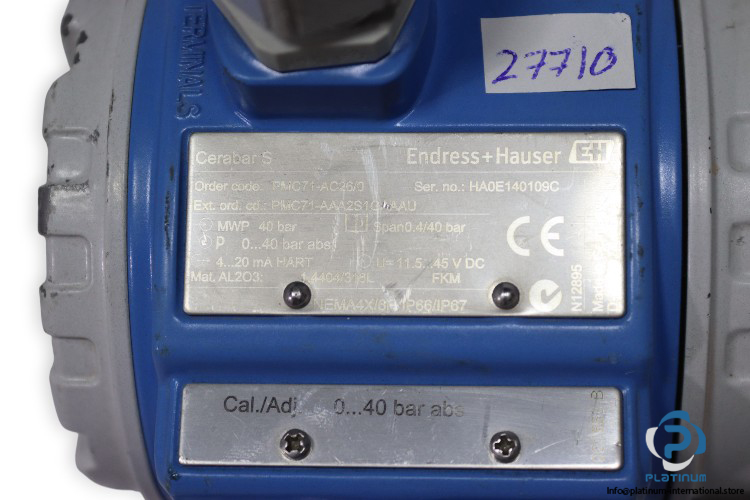

Order Code: PMC71AC26/0
Extra Order Code: PMC71-AAA2S1 AA0
Serial No.: HA0E140109C
Ref. No.: 12895
| Max. Measurement Distance | 400¯m (1312¯ft) H2O |
| Supply Voltage | 11.5 to 45¯V DC |
| Smallest Calibratable Span | 5¯mbar |
| Pressure Range (MWP) | 0 to 40¯bars |
| Pressure Range (Span) | 0.4 to 40¯bars |
| Material Process Membrane | Ceramic |
| Material Gasket | Viton, EPDM, Chemraz, Kalrez, NBR |
| Measuring Cell | Dry ceramic for gauge or absolute pressure |
| Process Connections | Thread, flange |
| Output & Communication | 4“20¯mA HART; optional PROFIBUS PA, FOUNDATION Fieldbus |
| Certifications | ATEX, CSA, IECEx, SIL2/3, marine, hygienic approvals |
| Process Temperature | -20 to +150¯°C |
| Ambient Temperature | -40 to 85¯°C |
| Protection Degree | NEMA 4X / IP66 / IP67 |
