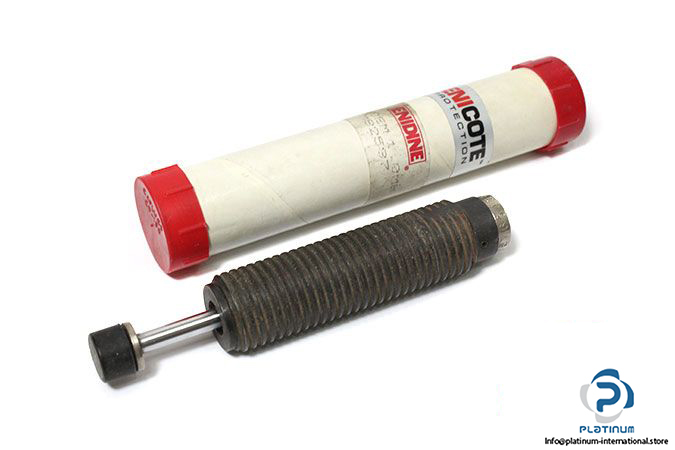

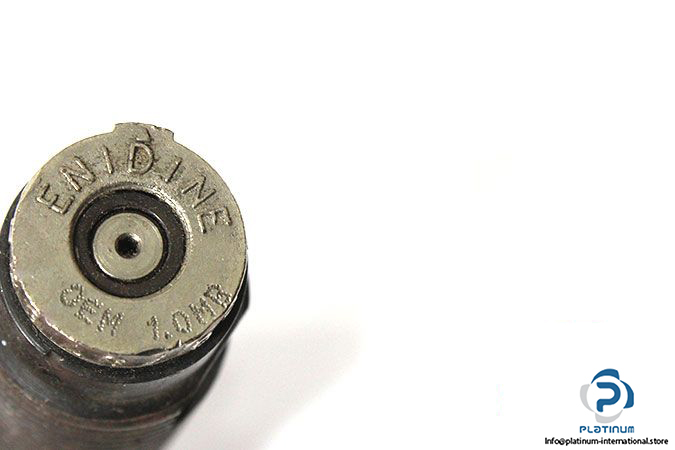

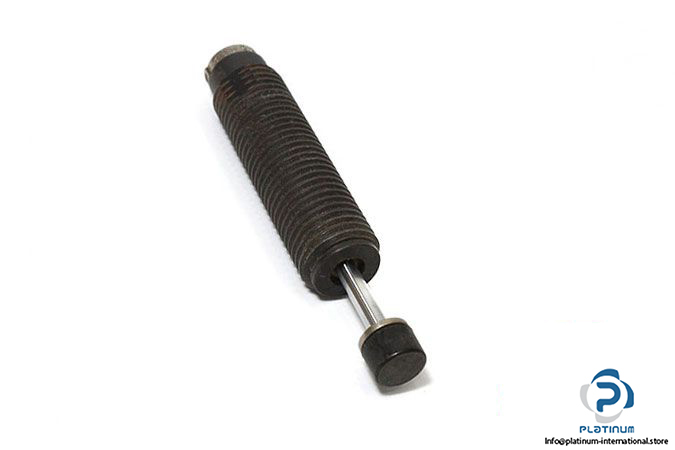

Enidine OEM 1.0MB Shock Absorber

Manufacturer: ENIDINE

Type: ADJUSTABLE HYDRAULIC SHOCK ABSORBER

Series: OEM

Model: OEM 1.0MB

Application:

• Printing Presses
• Turnstiles
• Tension / Compression Applications

Optimal Velocity Range: 0,3 – 3,30 m/s

Nominal Extended Coil Spring Force: 13 N

Nominal Compressed Coil Spring Force: 26 N

Max. ETC: 77,000 Nm/h

Max. Propelling Force: 1,300 N

Stroke Length: 25 mm

Rod Diameter ( D ): 6.4 mm

Length ( F ): 104 mm

Total length: 143 mm

Diameter and Step for Threaded Surface: M27 x 3,0

Temperature Range: -10 ….. 80 ^°C
