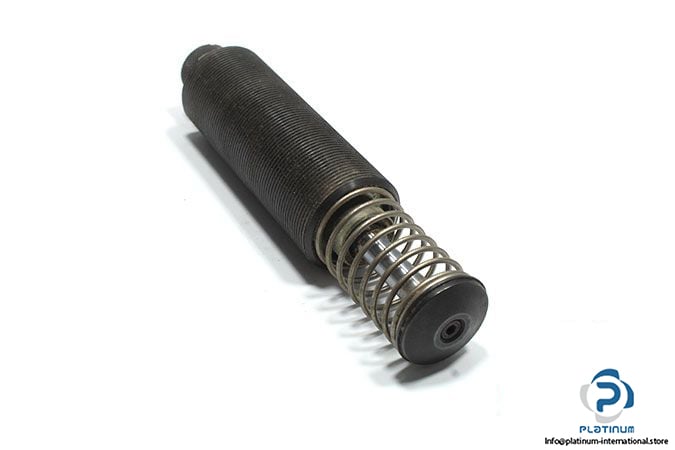

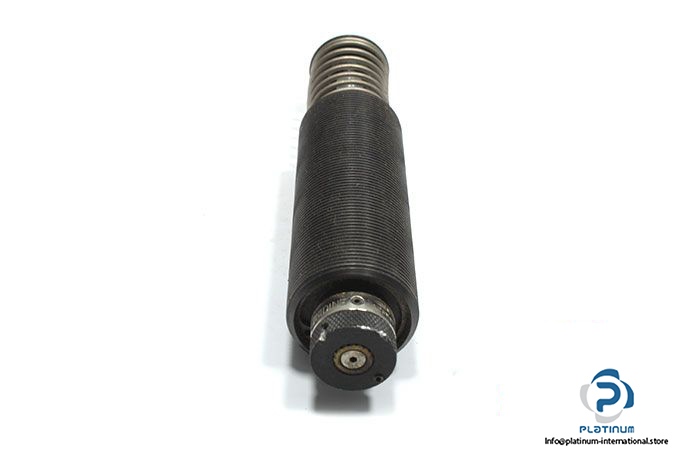

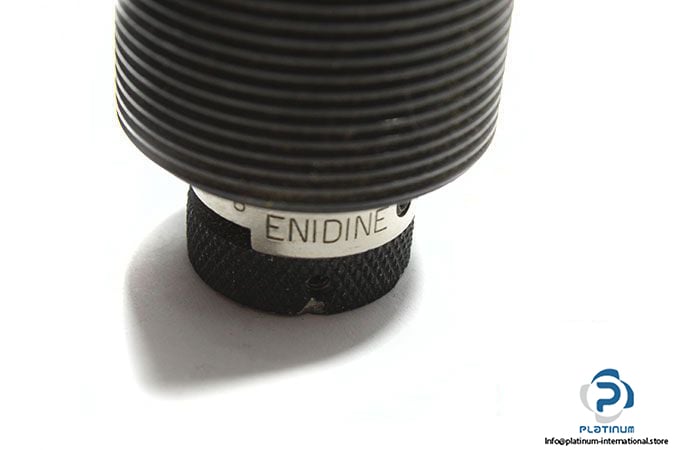

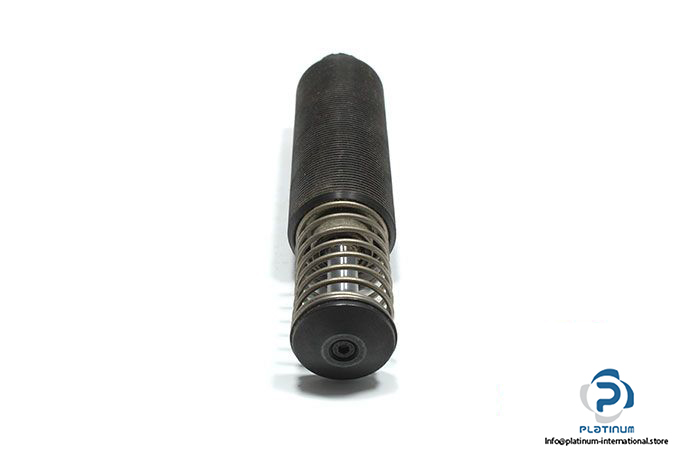

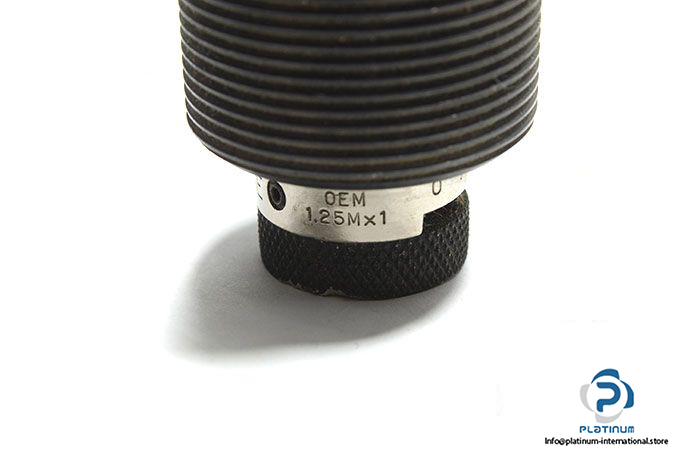

ENIDINE OEM 1.25M x 1 SHOCK ABSORBER

Manufacturer: ENIDINE

Type: ADJUSTABLE HYDRAULIC SHOCK ABSORBER

Series: OEM

Model: OEM 1.25M x 1

Damping Type: C

Optimal Velocity Range: 0,3 – 3,30 m/s

Nominal Extended Coil Spring Force: 56 N

Nominal Compressed Coil Spring Force: 89 N

Max. ETC: 100 kNm/h

Max. Propelling Force: 2,220 N

Stroke Length: 25 mm

Rod Diameter ( D ): 9.5 mm

Length ( F ): 138 mm

Total length: 165 mm

Diameter and Step for Threaded Surface:  M36 x1.5

Temperature Range: -10 ….. 80 ^°C

Weight: 0.59 kg
