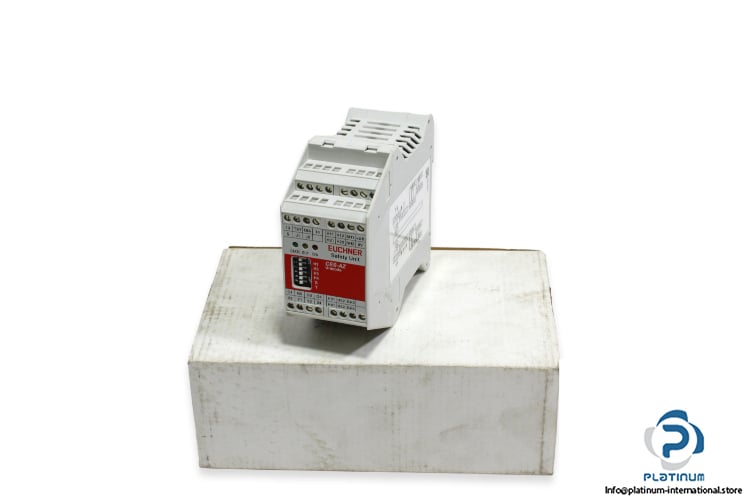

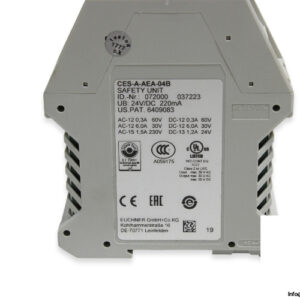

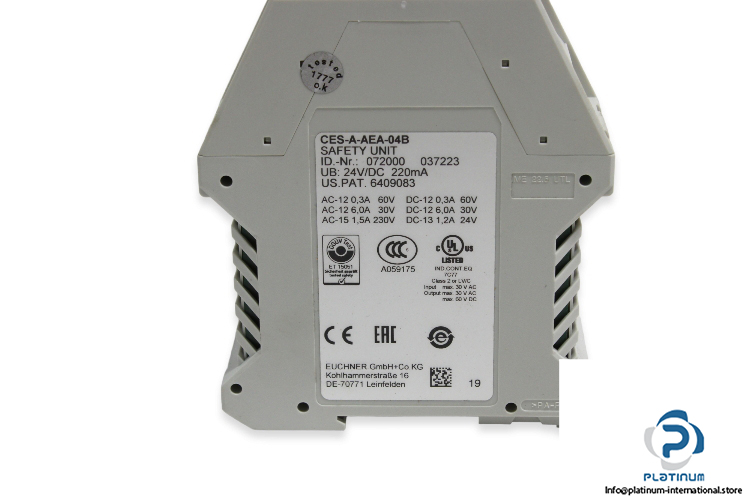

Euchner CES-A-AEA-04B NON-Contact Safety System

Manufacturer: Euchner

Type: Non-contact safety system

Model: CES-A-AEA-04B

ID No.: 072000   037223

Operating voltage UB: 24 V DC

Current consumption IB: 220 mA

Safety contacts: 2 (relays with internally monitored contacts)

Switching current (relay outputs):

AC-12 0.3 A 60 V

AC-12 6 A 30 V

AC-15 1.5 A 230 V

DC-12 0.3 A 60 V

DC-12 6 A 30 V

DC-13 1.2 A 24 V

Connection: Screw terminals

Ambient temperature: -20 … +55 °C

Degree of Protection: IP20

Housing material: Plastic PA6.6

Dimensions: 114 x 99 x 45 mm
