Euchner N11R Precision Single Limit Switch

Name: EUCHNER N11R PRECISION SINGLE LIMIT SWITCH
SKU: 1062771
Availability: LimitedAvailability

Used

In stock1 unitReady to ship

Precision Single Limit Switch

The EUCHNER N11R Precision Single Limit Switch is a high-quality switch featuring **250 V insulation voltage**, **2.5 kV impulse voltage**, and **IP67 protection**, designed for industrial environments.

Manufacturer

EUCHNER

SKU

1062771

Category

Limit Switches

Condition

Used

10 2.5 250 a Alloy Ambient Class Components Current die-cast Euchner Impulse Industrial Insulation IP67 kV Limit N11R NC NO Normally Precision Protection Single Switch Temperature Thermal V voltage

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

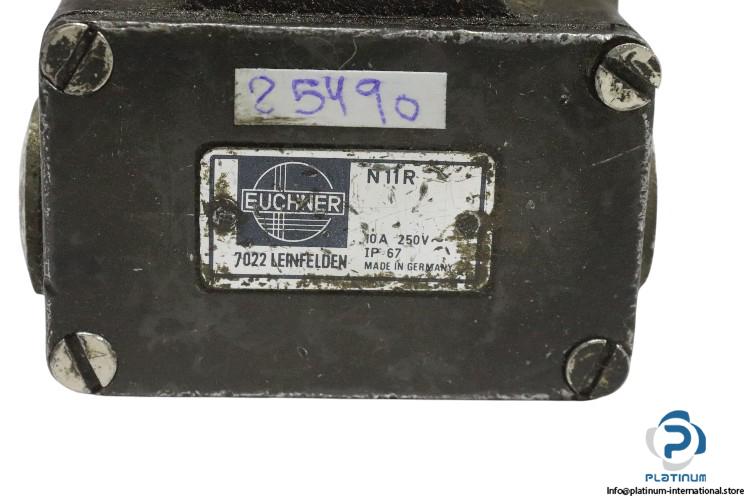

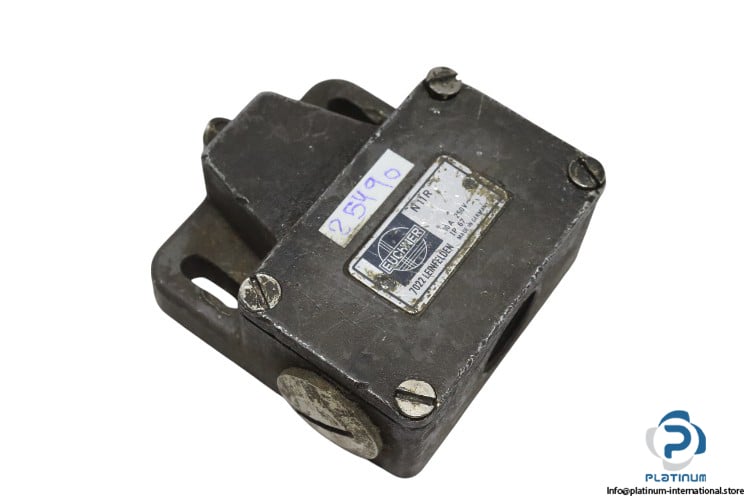

EUCHNER N11R Precision Single Limit Switch

The EUCHNER N11R Precision Single Limit Switch is designed for reliable switching in industrial applications. Made from anodized die-cast alloy, it offers high protection with an IP67 rating, ensuring durable and long-lasting performance in harsh environments.

Manufacturer: EUCHNER

Type: Precision Single Limit Switch

Model: N11R

Rated Insulation Voltage (Ui)	250 V
Rated Impulse Voltage (Uimp)	2.5 kV
Rated Thermal Current	10 A
Contact	1 Normally (NO) + 1 Normally Closed (NC)
Material	Anodized Die-Cast Alloy
Protection Class	IP67
Ambient Temperature	-5 to 80 °C
Dimensions	65 x 62 x 30 mm
