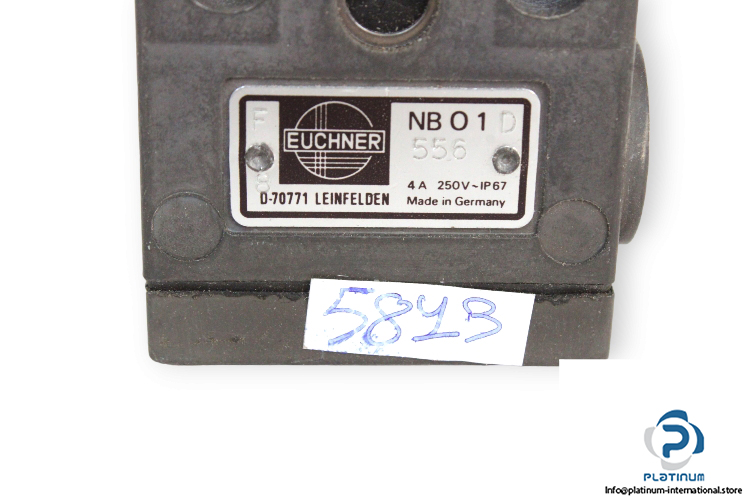

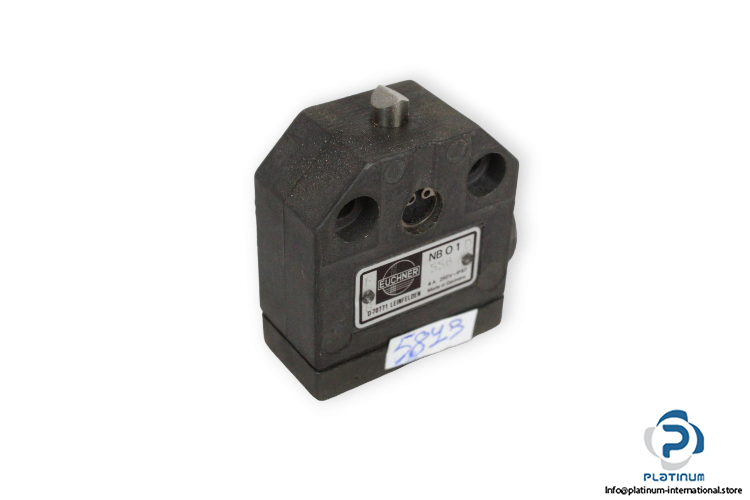

Euchner NB O 1 D 556 Limit Switch

Manufacturer: EUCHNER
Type: Limit Switch
Model: NB01D556

Connection cross section: 0.14 … 1 mm²
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Contact Rating:
DC-13       2 A 24 V
AC-15        2 A 230 V
Switching current: min. at DC 24V 10 mA
thermal rated current Ith: 6 A
Approach speed: 0.01 … 20 m/min
Connection type: 1 x M12 x 1.5
Number of door position NC contacts: 1
Number of door position NO contacts: 1
Tightening torque: max. 0.2 Nm Hexagon socket AF 1.3 mm
Actuating element: Chisel plunger
Actuating force: 15 … 20 N
Switching principle Changeover contact with: snap-action
Degree of protection: IP67
Ambient temperature: -5 … +80 °C
Material
Contact: Silver alloy, gold flashed
Housing: Anodized die-cast alloy
