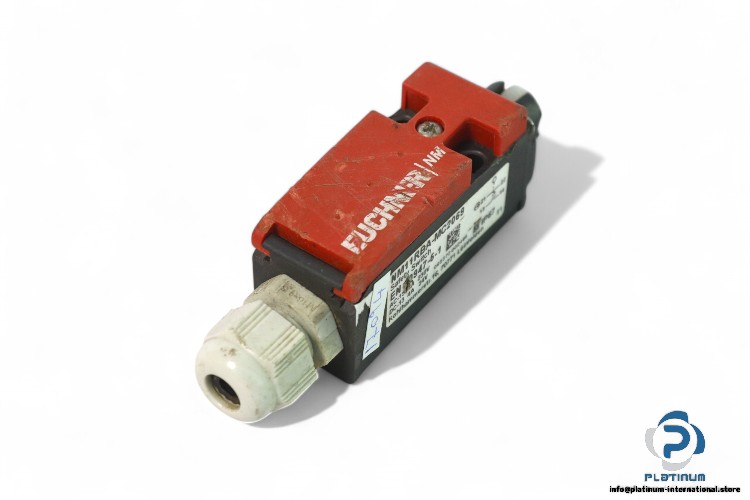

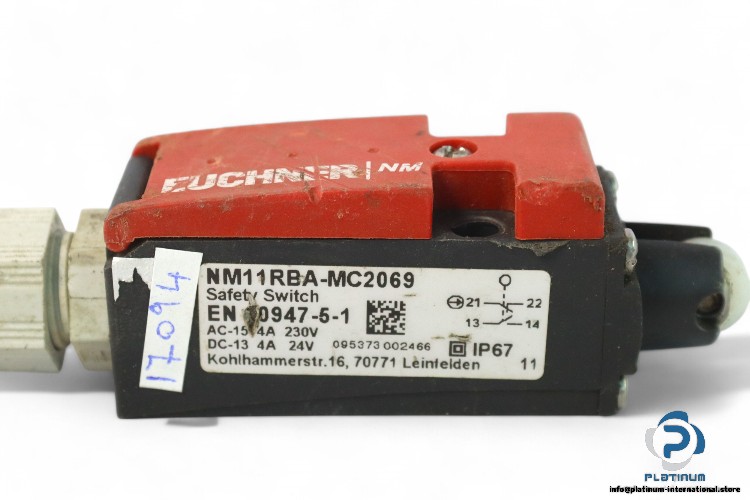

Euchner NM11RBA-MC2069 Safety Switch
Used
In stock11 unitsReady to ship
Reliable Industrial Safety Switch
The EUCHNER NM11RBA-MC2069 Safety Switch ensures secure operations with 250V insulation, IP67 protection, and slow-action switching contacts.1NO+1NC250Vcontacts.DeviceEuchnerIndustrialIP67MachineNM11RBA-MC2069reinforcedSafetyslow-actionSwitchthermoplastic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
EUCHNER NM11RBA-MC2069 Safety Switch
The EUCHNER NM11RBA-MC2069 Safety Switch is a reliable safety device designed to ensure secure machine operations and prevent unauthorized access. With robust construction and precise switching technology, it is ideal for industrial safety applications.
- Category: Safety Devices
- Manufacturer: EUCHNER
- Type: SAFETY SWITCH
- Model: NM11RBA-MC2069
- Order No.: 095373
- Rated Insulation Voltage: 250 V
- Switching Voltage: min. at 10 mA, 12 V
- Switching Current: min. at 24 V, 1 mA
- Rated Impulse Withstand Voltage: 2.5 kV
- Short Circuit Protection: 4A Gg (IEC 60269-1)
- Utilization Category: AC-15: 4A 230V, DC-13: 4A 24V
- Connection Cross-Section: 0.34 … 1.5 mm²
- Contact: 1NO+1NC
- Rated Thermal Current (Ith): 4 A
- Approach Speed Max.: 60 m/min
- Connection: 1 x M16 x 1.5
- Actuating Force: 15 N
- Switching Principle: Slow-action switching contact
- Degree of Protection: IP67
- Housing Material: Reinforced thermoplastic
- Ambient Temperature: -20 … +80 °C
Engineered for precision and durability, the EUCHNER NM11RBA-MC2069 Safety Switch guarantees safe and consistent performance in demanding industrial environments.
