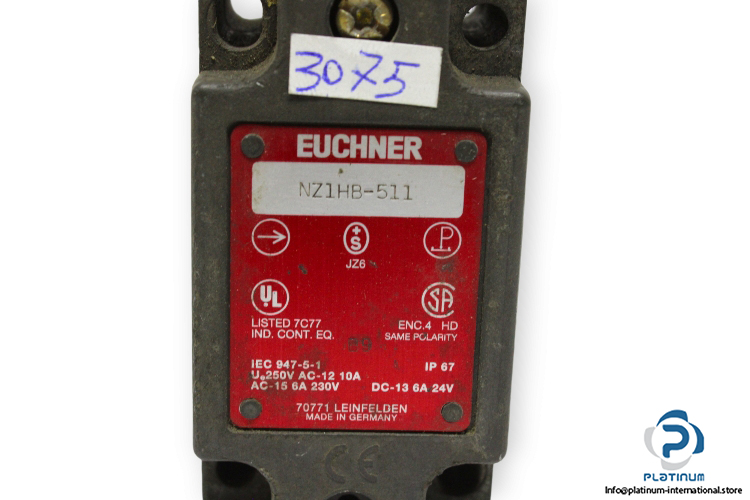

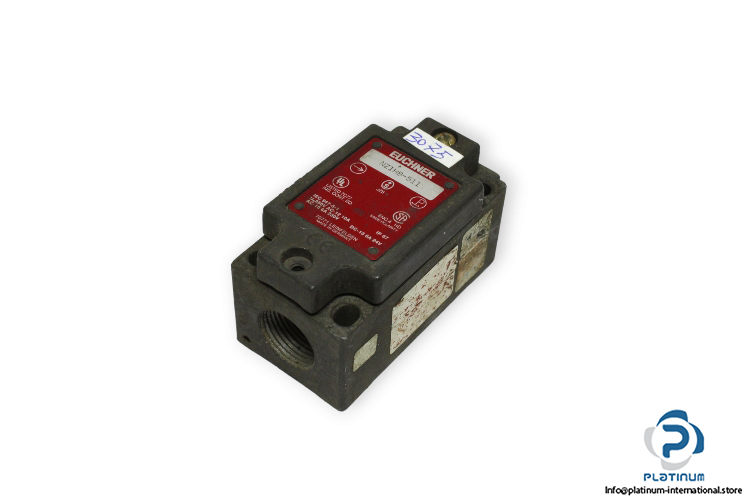

Euchner NZ1HB-511 Safety Switch

Manufacturer: EUCHNER
Type: Safety Switch
Model: NZ1HB-511

Rated insulation voltage Ui: 250
Rated impulse withstand voltage Uimp: 2.5 kV
Connection cross section: 0.34 … 1.5 mm²
Utilization category:
DC-13       6A 24V
AC-15        6A 230V
Switching voltage: min. at 10 mA, 24 V
thermal rated current Ith: 6 A
Approach speed: 0.1 … 300 m/min
Actuating force: min. 15 N
Switching principle: Snap-action
Ambient Temperature: -25 … +80 °C
Protection Class: IP67
Connection: Cable entry
