Euchner NZ1RK-511L220 Roller Plunger Safety Switch
Used
In stock1 unitReady to ship
Safety Switch
The Euchner NZ1RK-511L220 safety switch provides reliable guard monitoring with a roller plunger actuator, IP67 protection, and robust die-cast alloy construction.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

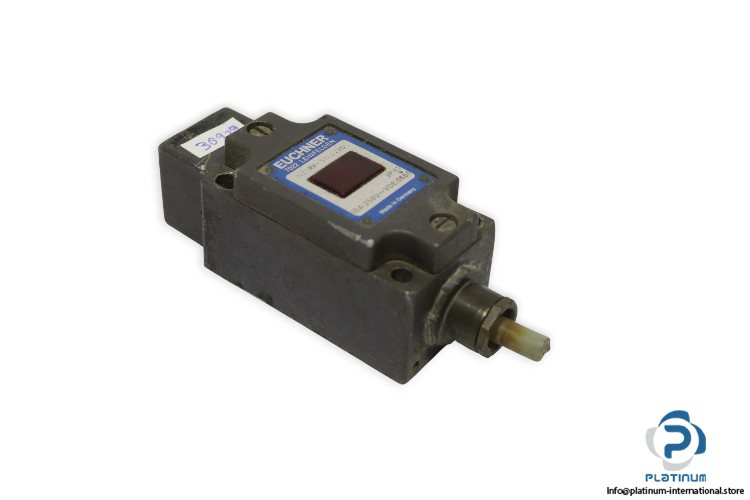

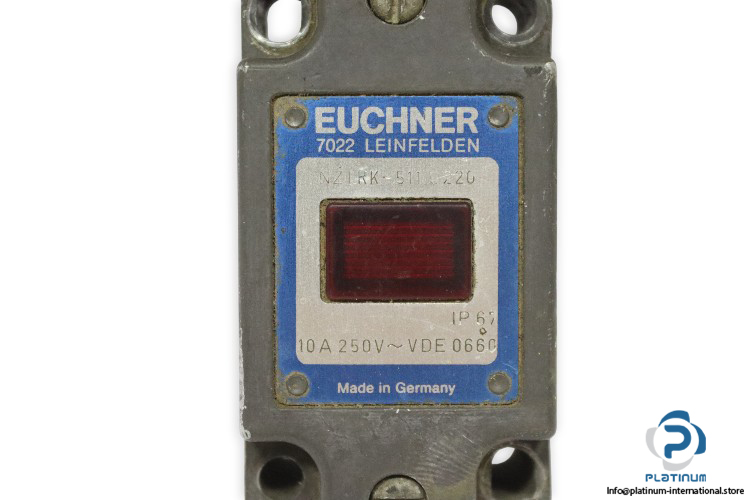

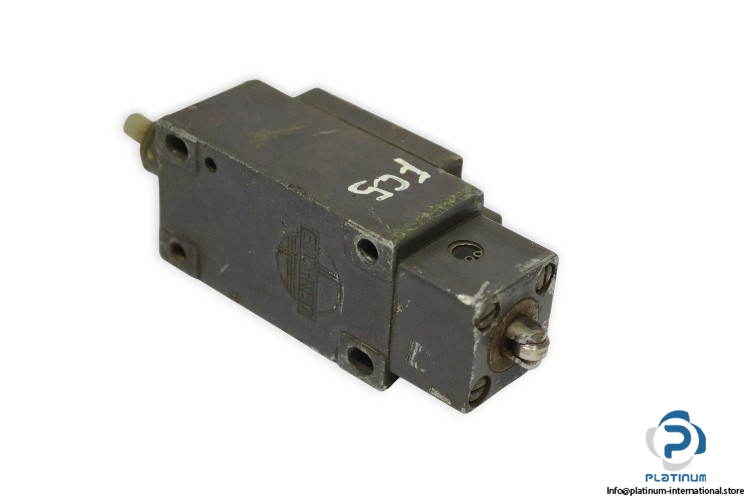

Euchner NZ1RK-511L220 Safety Switch
The Euchner NZ1RK511L220 Safety Switch is a high-performance safety device designed for monitoring protective guards, ensuring reliable machine shutdown and personnel protection. Built with robust die-cast alloy housing and IP67 protection, it delivers long-lasting performance even under demanding industrial conditions.
Manufacturer: Euchner
Type: Safety Switch
Model: NZ1RK-511L220
Order No.: 084885
| Rated Insulation Voltage Ui | 250 V |
| Rated Impulse Voltage (Uimp) | 2.5 kV |
| Contact | 1 Normally Open (NO) |
| Switching Voltage | 250 V AC |
| Switching Current | 10 A |
| Actuator Type | Roller Plunger |
| Connection | M20 x 1.5 Connector 6-Pin + PE |
| Material | Anodized Die-Cast Alloy |
| Protection Class | IP67 |
| Ambient Temperature | -25 / 80 °C |
| Dimensions | 74 x 40 x 52 mm |
