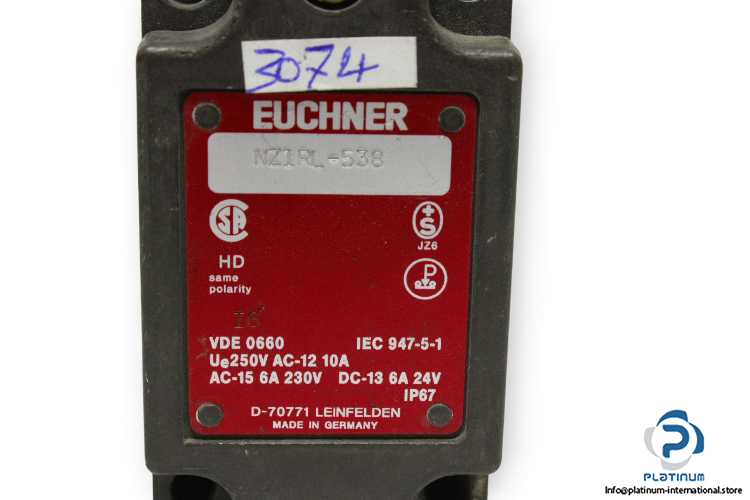

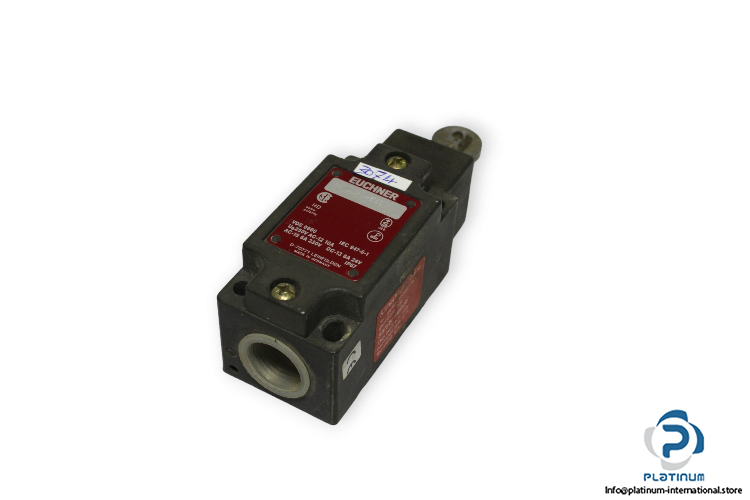

Euchner NZ1RL-538 Safety Switch
Manufacturer: EUCHNER
Type: Safety Switch
Model: NZ1RL-538
Rated insulation voltage Ui: 250
Rated impulse withstand voltage Uimp: 2.5 kV
Connection cross section: 0.34 … 1.5 mm²
Utilization category:
DC-13 4A 24V
AC-15 4A 230V
Switching voltage: min. at 10 mA, 12 V
thermal rated current Ith: 4 A
Approach speed: 0.1 … 20 m/min
Actuating force: 15 … 30 N
Actuating element: Roller plunger
Switching principle: Slow-action
Ambient Temperature: -25 … +80 °C
Protection Class: IP67
