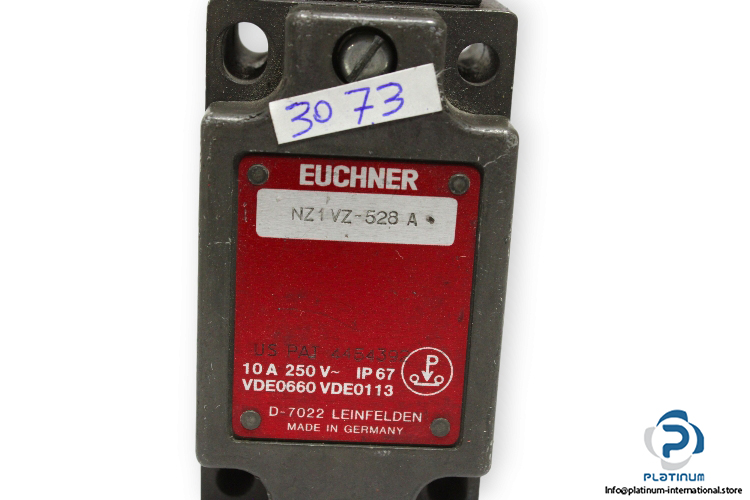

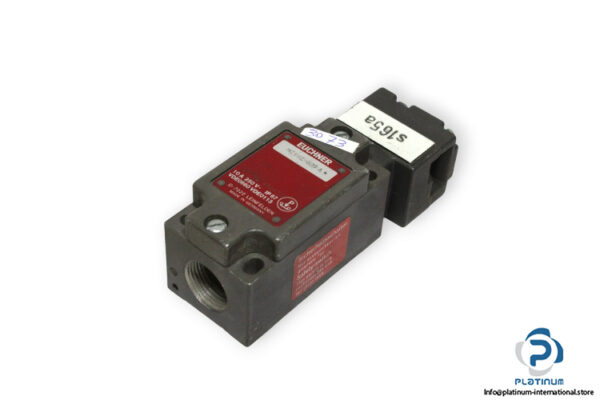

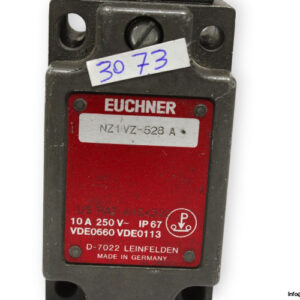

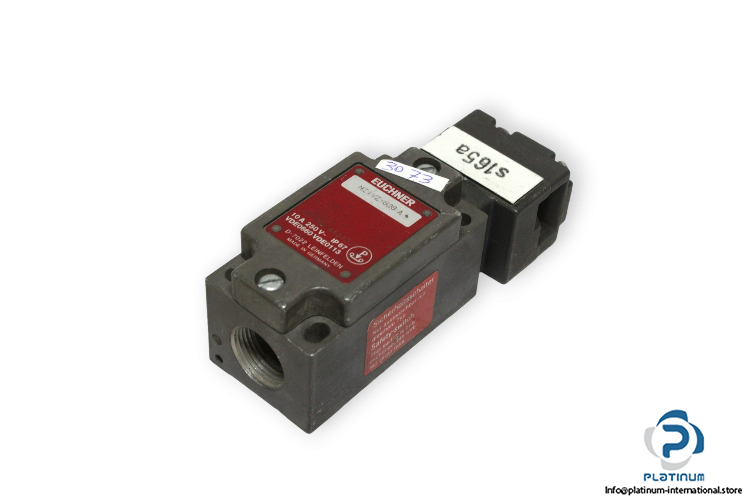

Euchner NZ1VZ-528 A Safety Switch
Manufacturer: EUCHNER
Type: Safety Switch
Model: NZ1VZ-528 A
Rated insulation voltage Ui: 250
Rated impulse withstand voltage Uimp: 2.5 kV
Connection cross section: 0.34 … 1.5 mm²
Switching voltage: min. at 10 mA, 12 V
thermal rated current Ith: 4 A
Approach speed: max. 20 m/min
Extraction force: 35 N
Actuation frequency: max. 1200 1/h
Actuating force: 35 N
Switching principle: Slow-action
Ambient Temperature: -25 … +80 °C
Protection Class: IP67
