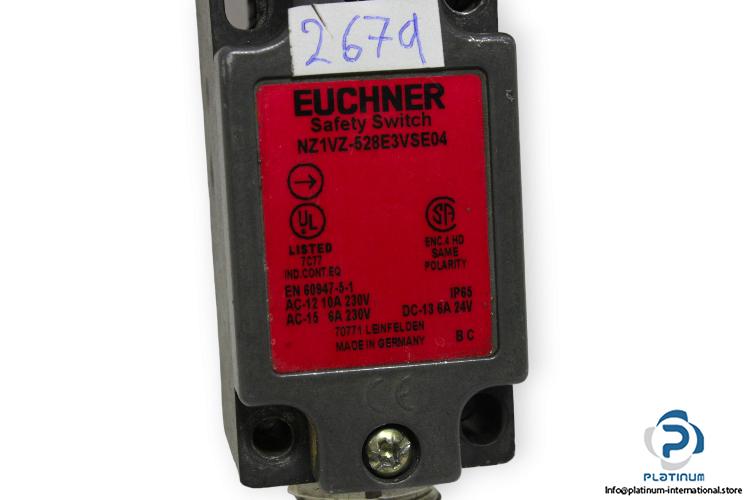

Euchner NZ1VZ-528E3VSE04 Safety Switch

Manufacturer: Euchner
Type: Safety Switch
Model: NZ1VZ528E3VSE04

Rated insulation voltage Ui: 250 V AC/DC
Rated impulse withstand voltage Uimp: 2.5 Kv
Solenoid operating voltage: 24 V DC
Power: 9 W
Connection type: 1 x M20 x 1.5, 3 Pins
Number of doors position NO contacts: Number of door position positively driven contacts: 1
Switching capacity: AC-12: 10A 230V, AC-15: 6A 230V, DC-13: 6A 24V
Switching principle: Slow-action switching contact
Guard locking principle: Open-circuit current principle
Degree of protection: IP65
Ambient temperature: -25 … +80 °C
Material: Contact: Silver alloy, gold flashed / Housing: Anodized die-cast alloy
