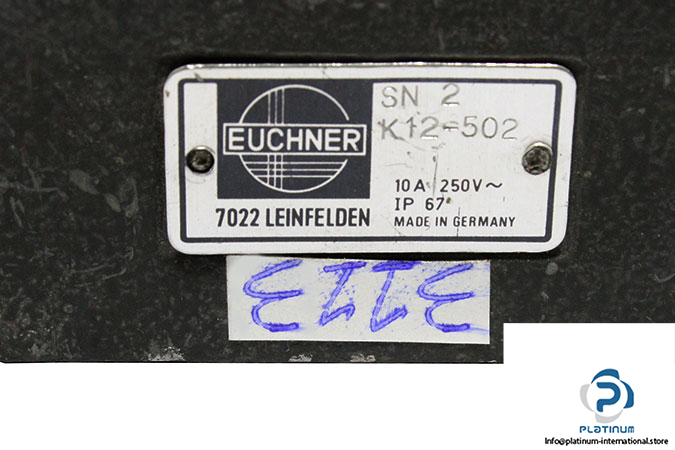

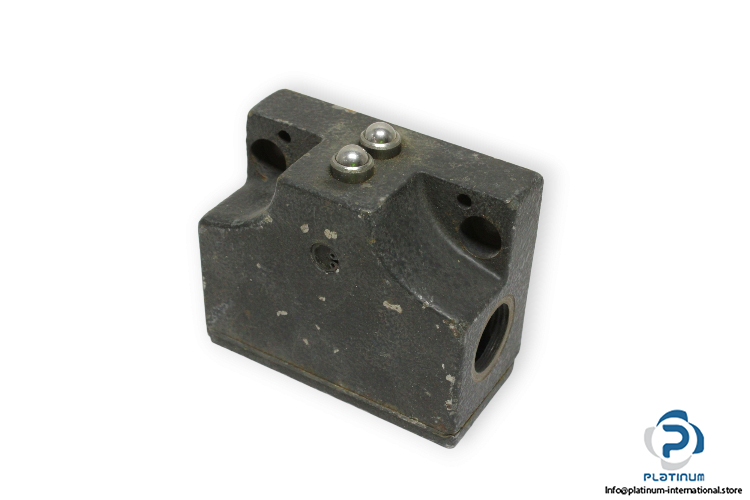

Euchner SN 2 K12-502 Limit Switch

Manufacturer: EUCHNER
Type: Limit Switch
Model: SN 2 K12-502

Output Configuration: 1 Normally open + 1 Normally closed
Contact Operation: Snap action
Connection cross section: 0.34 … 1.5 mm²
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Switching current, min. at DC 12V min.: 10 mA
thermal rated current Ith: 8 A
Approach speed: 0.01 … 10 m/min
Connection type: 2 x       M20 x 1.5
Actuator Type: Ball plunger
Plunger spacing: 12 mm
Upright housing: small flange
Connection: Cable entry
Protection class:  IP67
Ambient temperature:-5 … +80 °C
