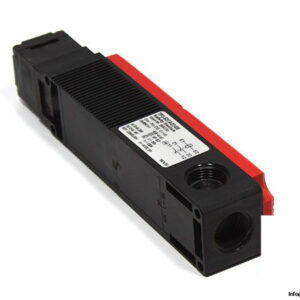

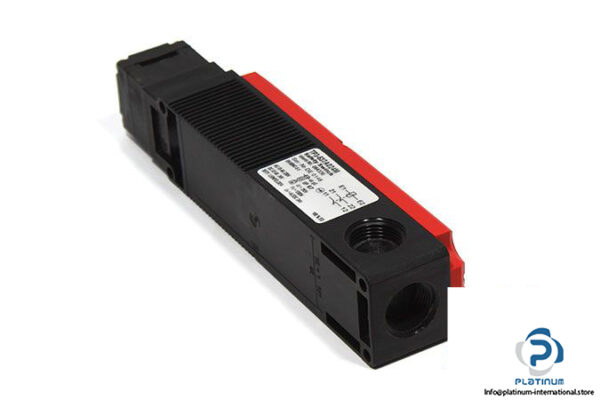

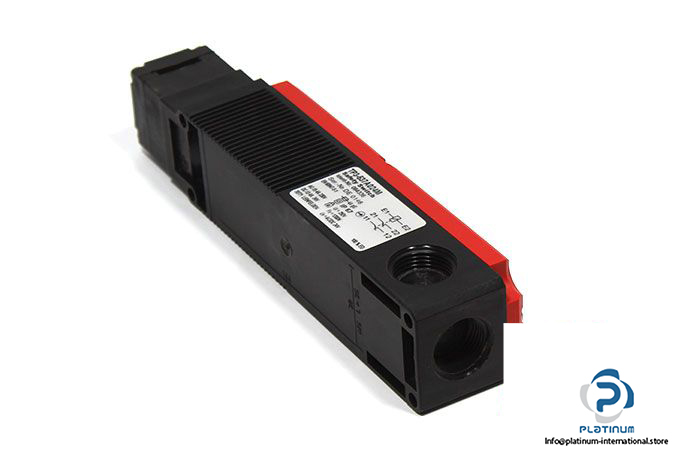

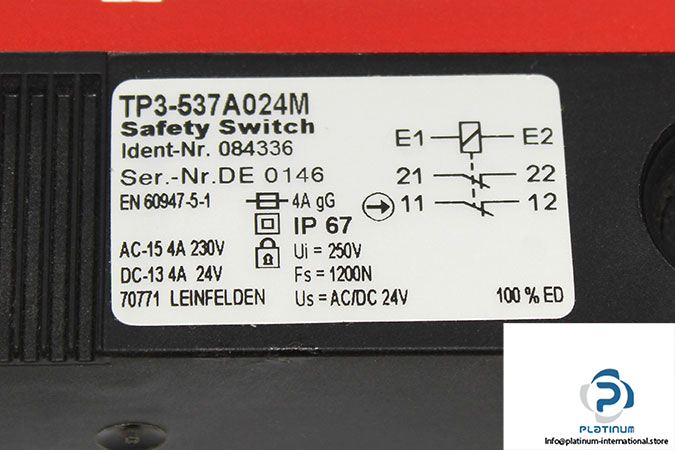

Euchner TP3-537A024M Safety Switch
New
Available on request
Manufacturer: Euchner Type: Safety switch
Model:
TP3537A024M
ID. No.:
084336
Used
In stock

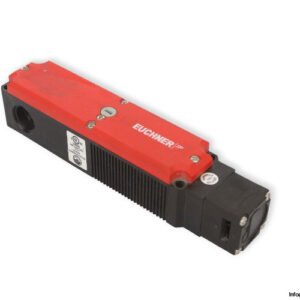

This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Euchner
Type: Safety switch
Model: TP3537A024M
ID. No.: 084336
Operating voltage: 24 V AC/DC
thermal rated current Ith: 4 A
Power consumption: 8 W
Rated insulation voltage Ui : 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Switching principle: Slow-action switching contact
Utilization category:
DC-13: 4 A, 24 V
AC-15: 4 A, 230 V
Standard: EN 60947-5-1
Locking force Fs: 1200 N
Switching element: 2 Normally closed (NC)
Connection: Cable entry 3 x M20 X 1.5
Connection cross section: 0.34 … 1.5 mm²
Material: Housing: Reinforced thermoplastic, Contact: Silver alloy, gold flashed
Protection Class: IP67
Dimensions: 192 x 42 x 40 mm
