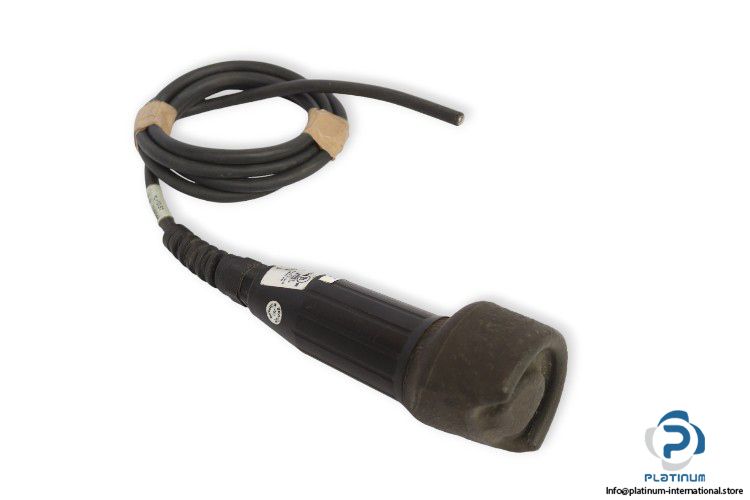

Euchner ZSA2B2G15CC1926 C Enabling Switch Element

Manufacturer: Euchner
Type: Enabling Switch with cable and plug connector SVM5

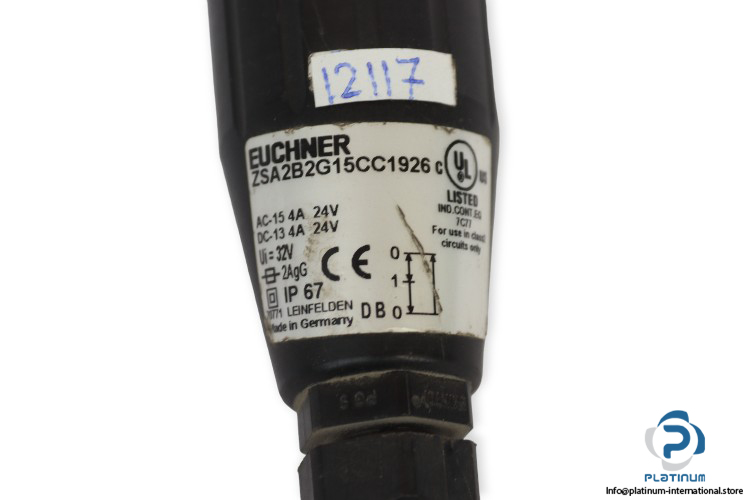

Model: ZSA2B2G15CC1926C

Rated conditional short-circuit current: 100 A
Rated insulation voltage Ui: 32 V
Rated impulse withstand voltage Uimp: 0.8 kV
Utilization category:
DC-13: 4 A, 24 V DC
AC-15: 4 A ,24 V AC
Switching voltage: min. at 10 mA (12 V)
Switching current: min. at 24 V (1 mA)
Connecting cable cross section: 6×0.34 mm²
Switching characteristics: 3-stage enabling switch
Connection type: Plug connector number of pins 5
Number of NO contacts: 2
Number of positively driven contacts: 1
Switching principle: Slow-action contact element
Degree of protection: IP67
Ambient temperature: -5 … +50°C
Material: Plastic
Cable length: straight 15 m
