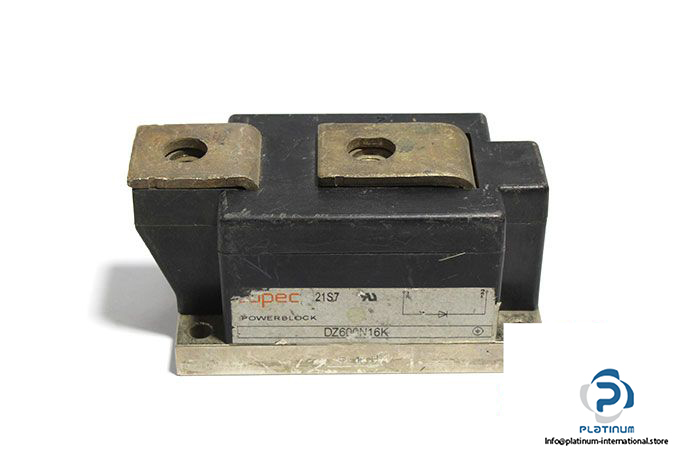

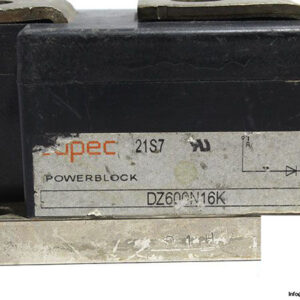

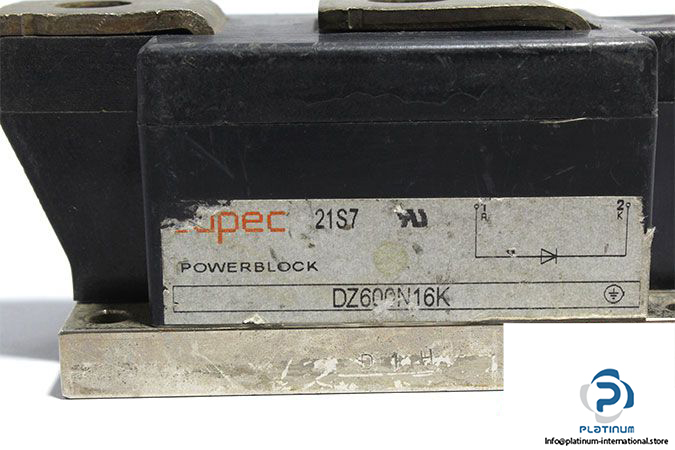

Eupec DZ600N16K Rectifier Diode Module

Manufacturer: Infineon EUPEC

Type: Rectifier Diode Module

Model: DZ600N16K

50 mm Single Rectifier Diode Module with 1600 V in pressure contact technology

Repetitive peak reverse voltage V_RRM@(T_vj-40 … T_vj):  1200 V / 1400 V

non-Repetitive peak reverse voltage V_RSM@(T_vj-40 … T_vj): 1300 V/1500 V

RMS on-state current I_FRMSM: max.1150 A

on-state current temp. T_vj: 100°C … 84°C

on-state voltageV_F: max. 1.4 V

Threshold voltageV_TO: 0.75 V

Reverse current i_R: max. 40 mA

Operating: temp. T_{C op}: -40…+150 °C

Weight: 0.86 kg
